Radar + Pressure Dual Water Level Monitor for Well Water Level Control, Support 4G, Built-in Battery, High Acccuracy, and High Stability.

Product Description

Product Description Intelligent Water Level Monitor for Drainage Pipe Network Monitoring

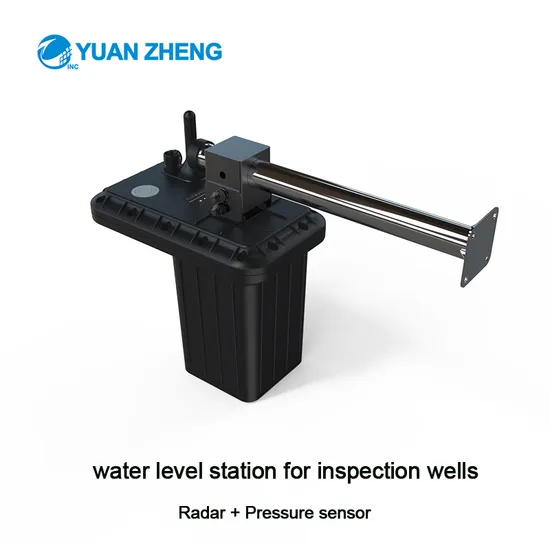

YZ-LVS210 Water Level Station is designed for Inspection Wells water level rea-time monitoring. It integrated with Radar + pressure dual level monitoring system, no blinding sports measurement. Optional built in camera module and fill light module, achieving visualized auxiliary diagnosis of pipeline network; Built-in large capacity lithium battaries, low power design that can support 3~5 years working life. Built in attitude monitoring that can send the alarm for device abnormal movement.
Product features:
Integrated design Integrated design for data collection, power supply, and communication, with built-in large capacity lithium batteries.
Unique structural design Special structural design effectively protects critical measurement and transmission areas; Simple and adjustable bracket design, quick leveling, convenient on-site installation and debugging.
Image acquisition + full range water level monitoring + water quality monitoring Built in camera module and fill light module, achieving visualized auxiliary diagnosis of pipeline network;
Equipped with built-in radar and intelligent pressure dual water level switching, achieving high-precision no-blind spot measurement;
Reserved interface for expandable water quality monitoring.
Built in attitude monitoring Built in attitude monitoring, sent alarm notice for device tilt, abnormal movement, and theft ;
Ultra low power design The overall low-power design of embedded hardware, advanced power management strategies, and scientific work mode switching, achieving ultra-long battery life of 3-5 years.
Product Parameters Specification:

Model	YZ-LVS210
Measuring principle	Adopting Radar + Pressure dual liquid level measurement technology. Achieving no-blind spots measurement of inspection well liquid level; Built-in camera module, achieving visual monitoring
Transducer	Built in radar water level sensor, pressure water level sensor, image sensor
Communication	4G
Measuring range	0~12m (no-blind spots)
Liquid level resolution	1 mm
Accuracy	±3 mm
Image resolution	30W pixel(640*480)
Configuration method	Mobile Bluetooth configuration, computer serial port configuration, platform remote configuration
Battery	Optional battery specifications (rechargeable lithium battery/disposable replaceable battery)
Data storage	16MB, Support signal blind spot supplementary transmission
Working temperature	-30 ~70 ºC
Protection grade	IP68, anticorrosion, explosion-proof
