Tto Printer Dana DC53 Thermal Transfer Overprinter 300dpi Label Printing Width 53mm for Flexible Packaging

Product Description

Product DescriptionDANA Thermal Transfer Overprinter* DANA TTO, Label and Flexible Packaging Solutions to Create More Value for You.
* Suitable for variable code printing (including traceability codes, barcodes) on various types of flexible packaging such as food, pharmaceuticals, daily chemicals, and household paper.
We prioritize reducing the Total Cost of Ownership (TCO) in the design of our thermal transfer coders. Coupled with original carbon ribbons, we ensure optimal printing quality and lower usage costs

Cost Savings 1. The 50mm ultra-wide ribbon range optimizes ribbon usage. 2. Includes Format Designer software with automatic ribbon optimization features. 3. Patented ribbon saving function helps reduce ribbon waste	High-Efficiency Printing 1. Introducing the smart print head with automatic settings and defect detection features. 2. Each package can have a unique code. 3. Printing speed up to 600mm/s, 4. High resolution of 300dpi.
Optimized Operation 1. Real-time monitoring of utilization rates, ribbon status, and defect detection. 2. The standard 1100-meter ribbon length allows for longer operating times. 3. Smart data input features make work management more convenient and accurate. 4. Format Designer easy-to-use information design software.	High Reliability 1. Cost-effective print head warranty service 2. Robust and reliable construction: no vulnerable parts are used in the ribbon cassette design. 3. High time availability factor 4. Optional IP protection for harsh environmental conditions and high-pressure water washing.

Environment-Friendly
1. Printing at a pressure of 2.5 bar, the air consumption per print is as low as 0.4ml, and power consumption is reduced by 50%.
2. The new standard ribbon design reduces ribbon waste by 20%.
3. The energy-saving function within the controller improves energy efficiency. ApplicationDANA TTO Printer

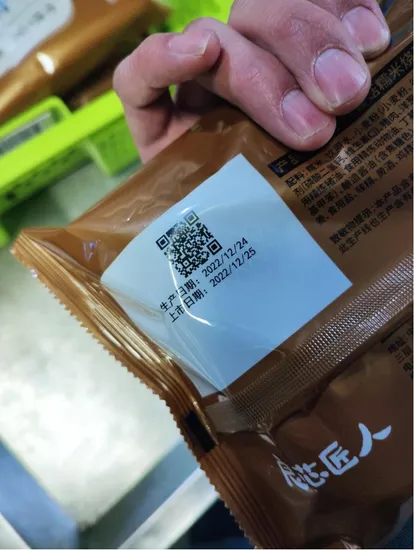

Suitable for variable code printing (including traceability codes, barcodes) on various types of flexible packaging such as food, pharmaceuticals, daily chemicals, and household paper.

Product Parameters

DANA Thermal Transfer Overprinter(TTO)
Item	Specifications
Structure	All-metal structure
Printing mode	Thermal transfer printing
Maximum print width	53/32mm(dPi)
Print area	53/32mm*75mm(intermittent) 53/32mm*100mm(continuous)
Resolution	300dPi(12 dots/mm)
Printing speed	40-600mm/s
Processor	32-bit RSIC processor
Memory	Minimum 8MB
Dynamic memory	Minimum 16MB
Real-time clock function	STD battery discharge life at least 3 years
Detector	Ribbon tension detection, thermal head position detection, cover open detection, thermal head overheat detection, ribbon breakage detection
Flexible packaging detection	Electromagnetic induction or synchronizer
Types of flexible packaging materials	PVDC,PET,PE,NY,CPP,OPP,BOPP,BOPA,CPP,PE,VMPET,VMCPP and other films and composite films
Ribbon capacity	Maximum length 1100 meters of 1'' core axis
Types of ribbon	Type: Mixed base/resin Width: 20MM(0.79'') to 55MM(2.17'')
Ribbon saving	Supports staggered, radial, multiple printing signals, digital ribbon saving print, ribbon backfeed and other ribbon saving modes. The minimum ribbon interval between two lines of print is not more than 0.5mm
Air pressure supply	Maximum 6bar\90psi
Air consumption	As low as 4ml/print at 2.5 bar
Print concentration levels	31levels
USB interface	STD 1 port, Type B connector, USB device 2.0
USB host interface	STD 1 USB disk connection port, USB host 2.0, automatic detection and setting upon connection
Serial port	STD 1 port, female D-SUB 9-pin connector default 9600,8/N/1, baud rate and format variable
Ethernet interface	STD 1 end, RJ-45 connector, IEEE802.3 10/100BASE-T
Hardware interface	Input: "Print start" and 1 configurable input Output: Fault, warning and 2 configurable outputs
Power supply	Internal switch power supply module, I/P: AC90V-264V, 47/63HZ; 150VA
Software	HPRT format editor
Certification	CCC
Environmental conditions	Operation: 0 to 40°C @ humidity 10% to 90% non-condensing Storage: -40 to 60°C @ humidity 10% to 90% non-condensing
Machine size	Printing unit: height less than 190mm, width less than 220mm, depth less than 236mm Controller: height less than 170mm, width less than 263mm, depth less than 190mm
Machine weight	Printing unit: less than 8kg Controller: less than 5kg
Warranty	Printing unit: 3 years Bracket and rubber roller Thermal head: 6 months or 50KM
Reliability and lifespan	Thermal head life cycle: 100KM Rubber roller life cycle: 1000KM PCBA:30000H

Company ProfileZhengzhou Dana Photoelectric Technology Co., Ltd is headquartered on the 7th Floor, Building 2, Jiatu Phase I, Lianhua Street, High-Tech Zone, Zhengzhou City, Henan Province. We are a leading manufacturer specializing in product marking and traceability solutions.
With over ten years of experience in the coding printing field, we have served numerous customers across various industries. Our professional engineering service team provides customized coding solutions tailored to complex production environments.
We cater to diverse industry demands with industrial packaging automation lines and unique one-item-one-code traceability solutions. Our services span sectors such as profiling & pipeline cable manufacturing, food & beverage, pharmaceuticals, packaging & printing, electronics, metal products, automotive parts, new energy, craftsmanship, and more. Our technology excels in both static and dynamic production line applications, enabling precise text, barcodes, QR codes, and trademark graphics printing.
With a strong domestic presence in Wuhan, Guangzhou, Beijing, Jinan, Hefei, Xi'an, Changsha, and Chongqing, DANA extends its reach globally through a dedicated international sales team, exporting to over 30 countries worldwide. Our global contacts include Boston, Auckland, Sydney, Tokyo, London, and Moscow.
As experts in the coding printing field with a decade of experience, we are committed to offering high-quality coding equipment at reasonable prices. Our product range includes CO2 laser marking machines, UV laser marking machines, Fiber laser marking machines, Thermal Inkjet (TIJ) coding machines, Handheld TIJ printers, Thermal Transfer Overprint (TTO) equipment, and ink consumables.
