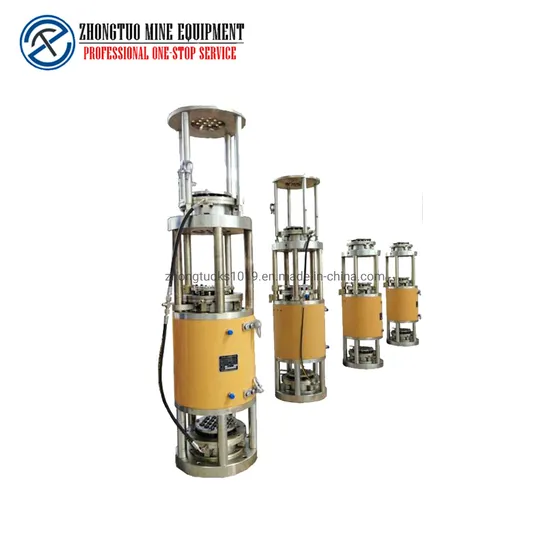

High Tonnage Heavy Duty Lifting Strand Jack

Product Description

Product Description

hydraulic strand jack generally uses a needle cylinder, which is filled with water and is used to hold the outlet by hand. You have to use a lot of force to push the water out because the pressure on both sides is the same, but the pressure is different. The pressure is the pressure and the area, the pressure is certain, and the larger the area is, the higher the pressure is. Therefore, the steel column area of the top of the hydraulic jack is much larger than the small steel column that you press by hand. The two steel columns have pistons. The liquid inside is generally lubricating oil, that is to say, the pressure of the two steel columns is the same when the size of the large steel column is large, so the large steel column is affected by the pressure when the pressure is equal. The force is N times that of a small steel column.

Product Parameters

model	Safe working load	Working pressure MPA	Cylinder stroke mm	Retraction height mm	Jack weight KG	Fixed anchor weight KG	boost speed m/h	Number of strands	Strand diameter
ZT-TSD15	15	31.5	500	1846	148	3.2	0-25	1	18
ZT-TSD45	45	31.5	500	1726	600	28	0-25	3	18
ZT-TSD60	60	31.5	500	1726	630	32	0-25	4	18
ZT-TSD100	100	31.5	500	1790	930	46	70-25	7	18
ZT-TSD180	180	31.5	500	1886	1560	90	0-25	12	18
ZT-TSD280	280	31.5	500	1938	2330	130	0-25	19	18
ZT-TSD300	300	31.5	500	1940	2460	140	0-25	20	18
ZT-TSD400	400	31.5	500	2100	3396	220	0-25	27	18
ZT-TSD580	580	31.5	500	2220	4980	260	0-25	38	18
ZT-TSD680	680	31.5	500	2180	5410	320	0-25	45	18
ZT-TSD800	800	31.5	500	2200	6880	360	0-25	54	18
ZT-TSD1000	1000	31.5	500	2286	8520	560	0-25	66	18

FAQ
FAQ: Q1: Are you a factory or trade company? A1: We are a factory. And we have ourselves trading company. Q2: What is the exact address of your factory? A2: No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China. Q3: Warranty terms of your machine? A3: One-year warranty for the machine and technical support according to your needs. Q4: Will you provide some spare parts for the machines? A4: Yes, of course. Q5: What about the voltage of products? Can they be customized? A5: Our standard voltage is 380V, 50HZ, and 3phase. The voltage can be customized according to your equipment. Q6: Which payment term can you accept? A6: 100% T/T( Decide according to actual situation) Q7: How long will it take to arrange production? A7: we can deliver the normal goods within 7-15 days. Other nonstandard electrical items we will deliver within 25-30 days. Q8: Can you accept OEM orders? A8: Yes, with a professional design team, OEM orders are highly welcome. Q9: Which trade term can you accept? A9: Available trade terms: FOB, CIF, CFR, EXW, etc. Q10: Do you provide samples? Is it free or extra? A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of the freight. Q11: What are your terms of payment? A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc. Company Profile

Our Company Information:
We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience in mining equipment, main products include: Ultra Large Rock Splitter Submersible Drilling Rig Spraying Machine Grinding Machine About the products:
Packing and Shipping:
Purchase Process:
About the Quality:
Others:
Why you choose us:
1. We are a real factory offering products and providing free technical advice.
2. Company in business for many years and served Over 50 countries' customers.
3. All machines with CE, ISO, and SGS certificates. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
