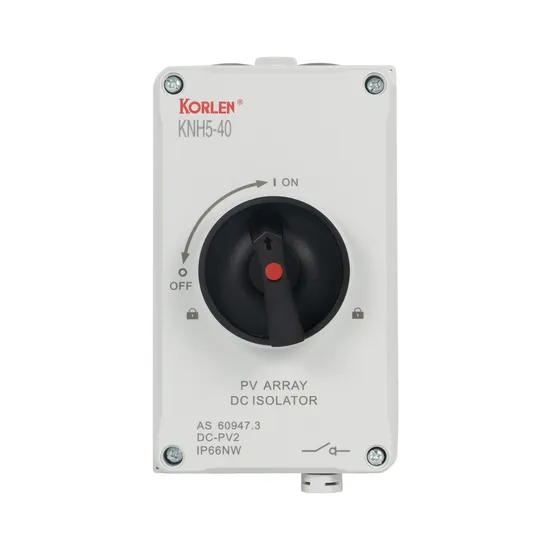

Knh5-40dB Waterproof IP66 1200V 32AMP Solar DC Isolator Switch with Mc4 Connectors

Product Description

Product Description KNH5-40 series photovoltaic DC isolation switch is suitable for rated voltage DC1200V and below, rated current 32A and below power system, the product can be used as infrequent switch and break, play the role of isolating the break line, can be widely used in 1-20kW inverter, controller, DC bushbox, For residential or commercial photovoltaic solar power generation systems (on-grid/off-grid). The arc time is less than 2ms, so that the photovoltaic solar system is effectively disconnected.

Product Parameters

Standard	IEC60947-3
Rated operating voltage(Ue)	300V/600V/800V/1000V/1200V
Rated insulation voltage(Ui)	1200V
Rated operating current(Ie)	32A
Rated short-time withstand current(Icw)	1kA/1S(4,4S,4B);1.7kA/1S(2H)
Rated short-circuit current(Icn)	3kA
Rated impulse withstand voltage(Uimp)	8.0kV
Ingress protection	IP66

Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer, our company has a history of 38 years. We have been specializing in the production of a series of electrical products such as surge protectors, fuses, circuit breakers, etc.
Q2: If OEM is acceptable?
A: We can provide OEM and ODM services. We have many different specifications and appearances for customers to choose.
Q3: How long is your delivery time?
A: Our delivery time is determined according to the purchase quantity. Generally, it is about 3-40 days, less than 300 pieces within 5 days, 300-2000 pieces within 7-15 days, 2000-20000 only within 15-40 days.
Q4: Do you provide sample? Free or charge?
A: We can provide free samples to customers, but only one piece, but customers need to bear the freight.
Q5: How many staffs do you have in your factory?
A: Our company is located at 258 Weishi Road, Yueqing Economic Development Zone, Wenzhou City, Zhejiang Province, with a factory area of over 35000 square meters and more than 360 employees.
Q6: Do you have sales target finished amount requirement to the distributor?
A: We welcome distributors in various countries to cooperate with us. Sales is an important assessment criterion. According to different requirements of different countries, new and old customers are welcome to consult.
Q7: Do you have detailed and professional installation manual?
A: Of course, you can find the installation manual of any product on our website, and there will be an installation manual in our product box.
Q8: Can your product be installed in cold or hot weather? A: The working environment temperature of our surge protector is -40ºC~80ºC, as long as the installation environment you are in does not exceed this range, they can all work normally.
Q9: Is there a discount for me to buy more products?
A: We are now in the September Purchasing Festival event. Most of the products in the live broadcast room have very large discounts. In addition, depending on your purchase volume, we have different discounts. 1% discount for orders above the product amount of US$50,000 (excluding shipping costs) 2% discount for orders above the product value of 150,000 US dollars (excluding shipping costs) 3% discount for orders above the product value of US$300,000 (excluding shipping costs) 5% discount for orders over 500,000 US dollars (excluding shipping).
Q10: Will you will attend the fair to show your products? A: Yes, we participate in 3-4 international exhibitions every year, such as the Canton Fair, the Middle East Dubai Electricity Show, the Asian Electricity Show, etc. A series of different exhibitions, and we look forward to seeing each other at the exhibition!
