Laboratory Roving Machine for Spinning Test Mini Spinning System With Touch Screen

Product Description

Product Description
Product Description

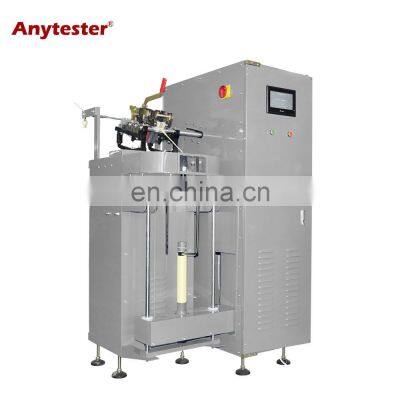

AT205 Laboratory Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT205 Laboratory Roving Machine is used to make roving from drawn sliver.
Detailed Images
Mini machine, save researching cost and easy to operate and
mai ntain;
Touch screen & PLC control;
Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;
Frequency converter of high efficiency to control roll speed;
Pressurizing system :spring pressure cradle;
Three-up-three-down drafting structure;
Specification

Model	AT205
Number of spindles	1,2, 4 or customized
Fiber type	Cotton or cotton-type chemical fibers Customized for wool
Twist range	50~250twists/meter
Draft range	Approx. 2~50
Output capacity	0.25~0.5kg/h
Roll diameter	¢25mm
Output speed	Max. 12m/min
Flyer speed	Max.600rpm
Power supply	AC220V 50Hz, 3KW

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXO	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
