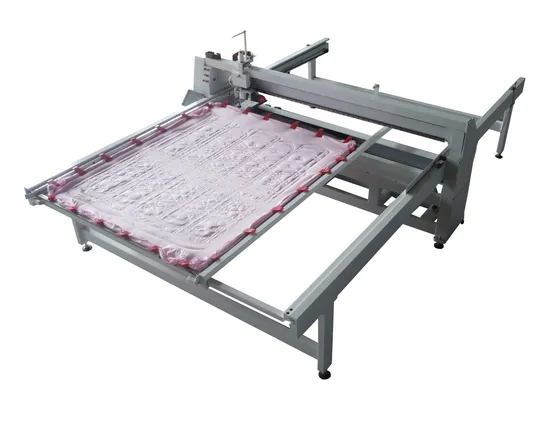

Automatic Lifting Head Single Needle Quilting Machine

Product Description

Specification:
In addition to the regular functions of the quilting machine, we also have the following high-end functions
1·Remote network function, the machine can be connected to the network for remote monitoring and remote software upgrade;
2·Head up and down function. There are three modes to choose from "open head up", "out increase head up", "close head up";
3·Automatic thread trimming function, there are three modes to choose "open thread trimming", "out thin as thread", "turn off thread trimming";
4·Pattern optimization function, the software can re-optimize the fitting after analyzing the customer's original photos, making the quilting quality higher;
5·It is automatically lifted at the end of processing, and the hinge is fixed more firmly, and the quality of the quilt key is improved;
6·Off-position alarm function, automatic alarm and shutdown when the butterfly frame and the nose are off-position, to prevent collision;
7·Low air pressure alarm function, the software detects the air pressure of the quilting machine in real time to prevent unstable operation of the machine when the air pressure is insufficient;
8·Strong current disconnection alarm function, when the strong current is disconnected, the alarm prompts and clears the return to zero state to prevent the machine from deflection and tension;
9·Servo independent alarm function, directly report the fault with the same server number, which helps to quickly locate and solve the problem;
10·High quality quilting, sharp corners and no deformation;
11·Turning without slowing down, the speed of simple patterns is 5~12 seconds higher than that of the old system, and the speed of complex patterns is 30% faster;
12·The thread trimming speed is fast and stable, and the thread trimming needle speed is 300 rpm;
13·Fast moving speed, up to 12 m/min.

Specifications	QY-26S	QY-28S	QY-30S	QY-32S
Max Quilt Size	2.6x 2.8	2.8x 3.2	3.0 x 3.2	3.2 x 3.5
Machine Size	5.0×3.4	5.2×3.6	5.4×3.6	5.6×3.9
Sewing Thick	1500g/square
Sewing Speed	3500 RPM Stitch 2-7m
needle type	DP5 18 ~ 22 #
Machine size	5.0x3.5x1.3	5.6 x 4.2 x 1.6	5.6x 4. 4x 1.6	5.9x4.6 x 1.6
Packaging size	3.7x1x1.4	4.4x 0.92x2.2	4.6x 0.92 x 2.0	4.8x0.92 x2.0
power	220V, 50HZ, 1.5 KW
Gross weight	1500kg	1600kg	1700kg	1800kg
Net weight	1300kg	1400kg	1500kg	1600kg

Feature:
1)The main shaft speed has been raised and work efficiency has been increased.
2)Application of large rotation shuttle while the shuttle core is two times larger than that of small shuttle.
3)The system has testing function so as to have convenient maintenance.
4)Patterns has the function of rotation and overturn.
Notice:
The working speed depends on the working situation,eg, the length of the needles, the kind of cloth,etc.
The Carriage Stroke above is under perfect situation, the real value is limited to the patterns.
If the machine is not the same with photos, subject to the real objects.
After Service:
1.The machine is guaranteed for one year.
2.We can arrange engineer to debug and install for customers.
