Hanbs Five Tool Simultaneous Precision CNC Lathe with Different Choice in best price

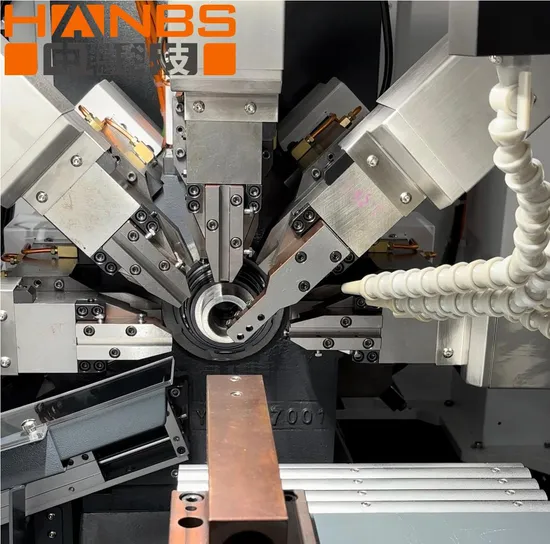

The Zhongcong W20 adopts a five channel CNC system, with an 11 axis absolute value servo motor and spindle servo motor. It can process products with five cutting tools simultaneously. Not only is the processing efficiency several times higher than traditional equipment, but the operation is simple and easy to learn, and programming is fast and convenient.
Some pictures about HANBS
Some pictures about delivery
Installing parts
Foreign customers visit the company
Exhibition photos:
Cast iron display
Some photos about optical machine display:
Samples display
Technical parameter:

control system	HANBS self-innovate (yn 1.0 versions)
Servo axis number	Standard 12 axis
Programming method	5-channels G code programming, each axis can be programmed separately
The number of knives	Group 5
Maximum machining diameter	Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)	The walking knife mode is 50mm
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm)	Φ6mm
Drilling arm handle diameter	∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)	M6 Copper
Dental tapping ability (doraxial delivery)	M5 Copper
Car thread function	Yes
Multi-knife synchronous processing function	Yes
Radial max bore diameter	Φ7mm
Radial max bore tapping size	M5
Maximum clamping diameter of the back side spindle	∅12mm
Maximum bore diameter of the back-side spindle	∅6mm
Maximum tapping diameter of the back-side spindle	M6
Spindle power	2KW(With the function of score)
Backside platform axle power	1.0KW
Maximum spindle speed(For short use only)6000rpm	6000rpm
Back maximum speed (for short use only)	6000rpm
Maximum removal length of piece	50mm
Side power tool unit (optional)	2
End face power tool unit (optional)	1
Row knife ( 8 * 120 * 3))	3
Standard maximum number of tool installed (5 knives + 5 drill / boring)	10
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill)	11
Knife size	8*8
Z1.2.3.4.5 axial stroke	50mm
X1.2.3.4.5 axial stroke	30mm
Backshaft itinerary	150mm
X1.2.3.4.5 axial power	400W
Z1.2.3.4.5 axial power	400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed	30m/min
X1, X2, X3, X4, X5 axis fast forward speed	30m/min
Center height of spindle	1010mm
High version input power	7.6KW
weight	1800Kg
Fuel tank storage	50L
size	1550*1060*1650mm

F&Q
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.Welcome to visit.
Q2. How can I place order and get more details about the machine ?
A: You can contact us by email or on line and tell me which details you want to know I will send you the processing vedio and photos.
Q3. About the price can you give the favourable or best price?
A. We have different series machine,and we will recomand you the suitable machine according to your products.Our aims is to become long-term cooperation and friends so we will give you the favourable price for you.
Q4.Can you provide some certificate?
A. According to different country,we can provide different certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is 46 mm.Mini processing daimeter is 3mm.And you can send me the drawings about your products our engineer will do the assessment.
Q6.How will the machine be transported?
A.We transport machine by sea and the port is Shenzhen.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production and help customer to solve the problems.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.
