Automatic Computer Elastic Tape Cutting Machine; Ribbon Cutting Machine

Product Description

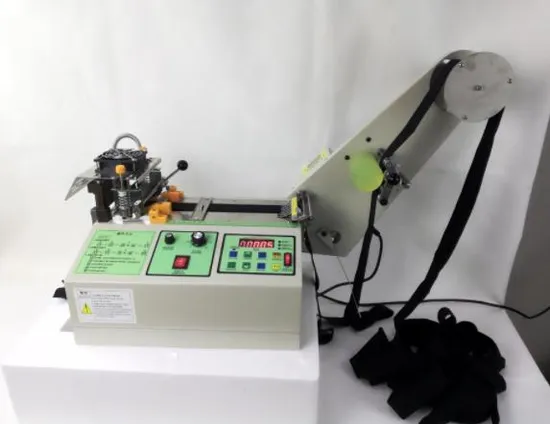

X-01HE Automatic computer Elastic tape cutting machine ; ribbon cutting machine

Cut material


Product Description Features
* High speed: It can cut 100~120 cut per minute. (50mm long)
* Accuracy: Cut-length is accurate cwing to a stepping motor
* Cutting type: Cutting is neat due to using a cold cutter which is durable.
* Automatic operation: It works autoally only by setting length and quantity
* Automatic stopper: It stops autoally if materials run out during operation
* Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on
* Application: belt loop, soft tube, string, plastic zipper, elastic band, small webbing, etc.
* Freature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.

Specifications
* Available Width: 1 ~ 80mm
* Available Length: 1 ~ 99999mm
* Knife: Cold cutting
* Speed: 120pcs/min
* Accuracy: ± 0.1mm
* Power Supply: AC110V 60Hz / AC220V 50Hz 220W
* Measurement & Weight: 38*32*30cm (21kg)
Other model specification

Machine	Automatic tape cutting machine		Ultrasonic label cut machine	label cut & folding machine
Model :	X-01HE	X-8U	X-12U	X-12CF
Type:	Electric	Ultronsic	Ultronsic	Ultronsic or hot & cold knife
Cut Shape:	Straight ; it have elastic feeder, it can cut accurate	It can cut different shape base on your requirement	It can cut straight But have eye sensor, It can cut label	It can cut and folding shape
Cut Width:	0.1---80mm	0.1---100mm	0.1---70mm	1-80mm
Cut length:	3---99999mm	3---99999mm	3---99999mm	3---99999mm
Cut Speed :	120pcs/min	200pcs/min	500pcs/min	200pcs/min
Accuracy:	± 0.1mm	± 0.1mm	± 0.1mm	± 0.1mm
Power Supply:	AC220V 50Hz 300W
Size & Weight	48*48*50Cm 23KG
