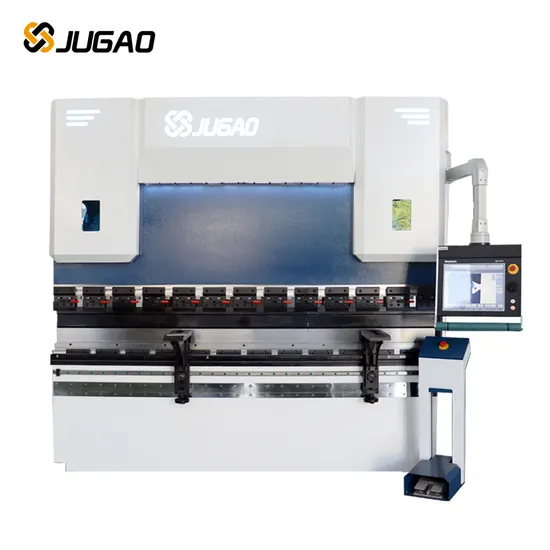

Advanced CNC Pure Electric Bending Machine for Efficient Manufacturing

Product Description

Advanced CNC Pure Electric Bending Machine for Efficient Manufacturing
100% Fully-electric press brake for simple to complex sheet metal bending.German lF brand screw rod ball screw press brake is driven by an AC servo motorand ball screw drive mechanism.lt maximizes productivity with high speed ramand high precision repeatability(0.01mm). This drive method is quiet in operation.which results in cost savings at the same time.
Electric Servo CNC Press Brake with integral machiningand tempering ultra-high strength bed, driven by AC servo motor and ball screw drive mechanism, it maximizes productivity. The machine all uses well-known foreign brand accessories, the whole series is standard with accessories, such as fast jig and quick change of top punch, to save time. 100% all-electric stamping brakes are highly versatile and designed for bending metal materialsfor a variety of applications.
The pure electric servo press brake automatically outputs the appropriate power according to the working conditions, without the use and replacement of hydraulic oil, avoiding the pollution of the waste liquid pressure oil to the environment.
This Series Servo Electric Press Brakes consume up to 50% less energy compared to hydraulic machines. This is achieved through the efficient use of electric motors, which only consume power when actively generating force. Additionally, these motors can recover energy during the deceleration phase, further reducing overall energy consumption.
Our pure electric 8+1-axis CNC Press Brake machine is a cutting-edge solution for precision metal bending and forming. With its powerful and efficient all-electric drive system, advanced CNC programming capabilities, and exceptional flexibility and maneuverability, our machine is the perfect choice for companies that demand the highest levels of performance, reliability, and precision. Upgrade to our machine today and take your metalworking capabilities to the next level!
The new generation DA-Touch controlsoffers an even higher grade of efficiency inprogramming, operation and control oftoday's press brakes, Ease of usecombined with state-of-the-art technologygo hand in hand, improving productivity;
The DA-69T offers 2D as well as 3Dprogramming that includes automaticbend sequence calculation and collisiondetection. Full 3D machine set-up withmultiple tool stations giving true feedbackon the product feasibility and handling;
Highly effective control algorithmsoptimise the machine cycle andminimise set-up time. This makes usingpress brakes easier, more efficient andmore versatile then ever;
The OEM-panel located above the screenreserved for machine functions and OEM-application switches, is integrated in thedesign and can be used depending therequired application.
DA-69T features:
# 3D and 2D graphical touch screenprogramming mode
# 3D visualisation in simulation andproduction
# 17" high resolution colour TFTFull Windows application suite
# Delem Modusys compatibility(module scalability and adaptivity)
# USB, peripheral interfacingOpen system architecture
# Sensor bending & correctioninterface
Product Features:
1. Ultra-high strength bed with integral machining and tempering;
2. The whole machine adopts foreign famous brand accessories;
3. DA69T CNC controller, cost-effective;
4. 100% all-electric stamped brakes are highly versatile;
5. High efficiency, low noise, environmental protection;
6. Automatically output corresponding power to avoid environmental pollution;
7. It can save more than 60% of energy;
8. Reduce operating costs and improve efficiency.
Machine Application:
Pure Electric Servo CNC Press Brake - It is a sheet metal pure electric press designed for sheet metal processing and can be used in both commercial options. Widely used in household farms, restaurants, automobiles, sheet metal manufacturing, light industry, ship props, metal parts, rail vehicles and other industries of sheet metal bending processing.Compared with electro-hydraulic press brakes, it can save more than 60% of energy, reduce operating costs, and increase efficiency by more than 40%, thus becoming a more stable and reliable choice.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
