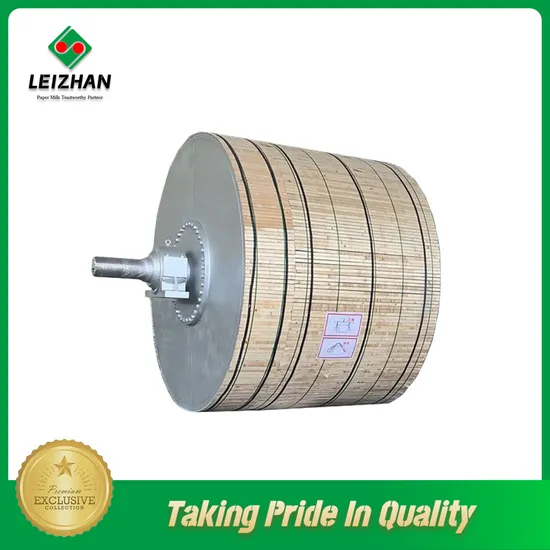

Paper Machine Cast Iron Ci Steel Chrome Coated Yankee Dryer Cylinder for Paper Making Industry
| US$3,500.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZPMDC
Sheet Former Type
All Kinds of Paper Machine
Paper Thickness
All Kinds Paper Suitable
Automation
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
Online and at Site Support
Delivery Term
EXW, Fob, CFR, CIF...
Payment Term
T/T, L/C, D/P, CAD...
Suitable Paper Machine Speed
80-1500m/Min
Shell Thickness
Customized
Transport Package
Standard Seaworthy Package
Specification
customized
Trademark
LEIZHAN
Origin
China
HS Code
843999
Production Capacity
50000sets/Year
Packaging & Delivery
Package Size
3000.00cm * 3000.00cm * 30000.00cm
Package Gross Weight
2000.000kg
Product Description
Product Description Dryer Cylinder is divided into: Cast Iron Dryer Cylinder, Steel Dryer Cylinder, Yankee Dryer CylinderAll dryer cylinders, heads, and journals are special cast iron. Separate journals are bolted onto the dryer heads. Dryer shells are ground on the outside and turned on the inside. All dryer journals with steam or condensate pipes have insulation sleeves. The inner surfaces have grooves for the stationary siphons. The front side ends of all dryers contain manholes.
Cast iron materials are excellent in durability. This is because the free-form flake graphite in the cast iron material ensured its high corrosion and erosion resistance. The cast iron also has good fatigue strength under the pressure roller forces. At the same time, cast iron has good surface performance and does not need metal spraying treatment like a steel dryer.
Detailed Photos
Product Parameters
| Diameter | Design Pressure Mpa | Material | Hardness | Width | Shell Thickness | Roughness | Working speed |
| 1500 | 0.3-0.8 | HT250-300 | 190-240 | 350-10000 | 25-32 | 0.2-0.4 | 200-1200 |
| 1800 | 0.3-0.8 | HT250-300 | 190-240 | 350-10000 | 28-36 | 0.2-0.4 | 200-1200 |
| 2000 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 30-40 | 0.2-0.4 | 200-1200 |
| 2500 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 32-47 | 0.2-0.4 | 200-500 |
| 3000 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 37-56 | 0.2-0.4 | 200-600 |
| 3660 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | 40-65 | 0.2-0.4 | 200-1200 |
| 3680 | 0.3-0.8 | HT250-300 | 190-240 | 1350-5000 | as required | 0.2-0.4 | 200-1200 |
| ≤1500 | 0.3-0.5 | HT200-250 | 190-240 | 1350-5000 | 18-27 | 0.2-0.4 | 200-1200 |
