Agricultural Equipment Hot-DIP Galvanized Beef Cattle Headlock

Product Description

Product Introduction
Robot welding to ensure precise structural dimensions that meet drawing requirements and ensure flexibility in use.
Different type for your option:1000mm, 750mm , 667mm, 600mm, 500mm, 420mm,slopped.
The vertical and curved rod are fully welded at the junction of the upper and lower crossbeams to ensure structural stability.
The automatic return time of the movable rod is ≤ 1.5 seconds.
For beef cattle headlock, we can specially produce with thick support frame.
Anti noise available.
Specification
Main components and materials:in Q235
After welding, all will be overall galvanized .
6m/piece/ 9 cow position, every 3m fastened by special clamps with reinforced column,
Total length can be changed according your requirement(about 3meters or 6 meters).
Types

Type	Distance	cow Age	cow head each pc ( 6meters long )	Unit Price (USD)
JJ-420	420mm	3-6 months	14	23
JJ-500	500mm	6-9 months	12	26
JJ-600	600mm	9-13 months	10	30
JG-667	667mm	13-20 months	9	31
JJ-750	750mm	mature cows	8	32
JJ-1000	1000mm	dry cows	6	34
Slopped type	250mm	younger	20/22	18

All spare part for the installation were included, we can guide the installation and provide drawing.

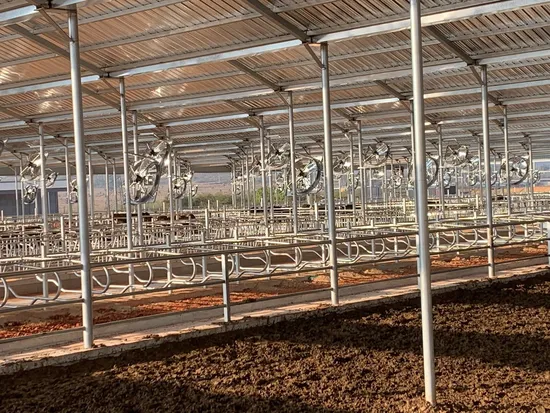

Application
Detail
Related Products

bedding recovery system	back flush valve
cow mattress	cow fan

Company Profile
FAQ Q1. Are you a factory or trading company?
A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?
A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?
A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.Q4: What can you by from our company?
A:Dairy farm design and diary farm equipment: such as rolling curtain, cow fan/ventilation fan, ceiling fan, cow headlock, cow free stall, cow brush,manure scraper, bedding recovery system, manure separator, cow mat,etc.
