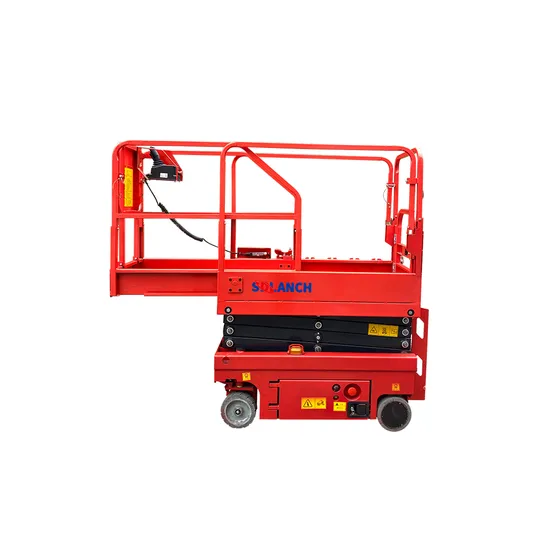

Easy Operation Safety Fast Moving Large Platform Hydraulic Mobile Scissor Lift Tables
Basic Info.
Model NO.
SDLS-12
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
The Maximum Working Height
13.8m
The Maximum Platform Height
11.8m
Safe Working Load
320kg
Table Extension Size
900mm
Minimum Ground Clearance
106mm/29mm
Lifting Speed
5m/Min
Battery
2*12V/80ah
Charger
24V
Max Gradeability
20
The Driving Speed of The Machine
3.5 Km/H
Transport Package
Null
Specification
2390mm*1160mm*2210mm
Trademark
SDLANCH
Origin
China
Packaging & Delivery
Package Size
120.00cm * 80.00cm * 60.00cm
Package Gross Weight
60.000kg
Product Description
Self-propelled scissor lifts are electric and available in a variety of models. Our self-propelled scissor lifts are construction-oriented and can improve operator productivity on demanding outdoor sites. They have the advantages of strong capacity, easy operation, safety, reliability and good quality. First of all, the buffer force of the lifting platform during the lifting process may be several times greater than the weight. In order to enable the lifting platform to lift stably and ensure the safety of the track chassis, the lifting chassis is placed on the hydraulic support system at the beginning of the design. Detailed Photos| Model | SDLS-08 | SDLS-10 | SDLS-12 | SDLS-14 |
| Safe working load | 450kg | 320kg | 320kg | 230kg |
| Maximum working height | 9.8m | 11.8m | 13.8m | 15.8m |
| Maximum platform height | 7.8m | 9.8m | 11.8m | 13.8m |
| Extended platform safe working load | 113kg | 113kg | 113kg | 113kg |
| Working platform size (length x width) | 2270mm×1130mm | 2270mm×1130mm | 2270mm×1130mm | 2630mm×1130mm |
| Overall dimensions (length x width x height, guardrails not folded) | 2390mm×1160mm×2340mm | 2390mm×1160mm×2470mm | 2390mm×1160mm×2600mm | 2760mm×1250mm×2600mm |
| Overall dimensions (length x width x height, guardrail folded) | 2390mm×1160mm×1820mm | 2390mm×1160mm×1940mm | 2390mm×1160mm×2080mm | 2760mm×1250mm×2080mm |
| Extended size of table | 900mm | 900mm | 900mm | 900mm |
| Minimum ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| Wheelbase | 1865mm | 1865mm | 1865mm | 1865mm |
| Turning radius (inner wheel/outer wheel) | 0/2.5m | 0/2.5m | 0/2.5m | 0/2.5m |
| Lifting/driving motor | 24V/4.5KWDC 24V/3.4KW AC | 24V/4.5KW | 24V/4.5KWDC 24V/3.4KW AC | 24V/4.5KWDC |
| Lifting speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Machine travel speed (folded state) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Machine travel speed (lifting state) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Battery | 4×6V/200Ah | 4×6V/200Ah | 4×6V/200Ah | 4×6V/240Ah |
| Charger | 24V | 24V | 24V | 24V |
| Maximum climbing ability | 25% | 25% | 25% | 25% |
| Maximum allowable working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Tire | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm |
| Total Weight | 2250kg | 2550kg | 2960kg | 3300kg |
| Model | SDLS-06 | SDLSM-06 | SDLSM-04 | SDLSN-08 |
| Safe working load | 450kg | 230kg | 230kg | 320kg |
| Maximum working height | 7.8m | 7.8m | 5.8m | 9.8m |
| Maximum platform height | 5.8m | 5.8m | 3.8m | 7.8m |
| Extended platform safe working load | 113kg | 113kg | 113kg | 113kg |
| Working platform size (length x width) | 2270mm×1130mm | 1680mm×780mm | 1300mm×680mm | 2270mm×810mm |
| Overall dimensions (length x width x height, guardrails not folded) | 2390mm×1160mm×2210mm | 1820mm×780mm×2020mm | 1440mm×700mm×1860mm | 2390mm×840mm×2370mm |
| Overall dimensions (length x width x height, guardrail folded) | 2390mm×1160mm×1700mm | 1820mm×780mm×1620mm | 1440mm×700mm×1460mm | 2390mm×840mm×1800mm |
| Extended size of table | 900mm | 800mm | 550mm | 900mm |
| Minimum ground clearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| Wheelbase | 1865mm | 1357mm | 1020mm | 1865mm |
| Turning radius (inner wheel/outer wheel) | 0/2.5m | 0/2 m | 0/1.5m | 0/2.5m |
| Lifting/driving motor | 24V/4.5KWDC 24V/3.4KW AC | 1.6KW/0.5KW | 1.6KW/0.5KW | 24V/4.5KWDC 24V/3.4KW AC |
| Lifting speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Machine travel speed (folded state) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Machine travel speed (lifting state) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Battery | 4×6V/200Ah | 4×6V/200Ah | 2×12V/80Ah | 4×6V/200Ah |
| Charger | 24V | 24V/25A | 24V | 24V/30A |
| Maximum climbing ability | 25% | 25% | 20% | 25% |
| Maximum allowable working angle | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Tire | Φ381×127mm | Φ305×100mm | Φ230×80mm | Φ381×127mm |
| Total Weight | 2100kg | 1200kg | 860kg | 2050kg |
