1.5ton Chinese New Support Crawler Customized Hydraulic Mini Small Excavator

Product Description

1.5ton Chinese New Support Crawler Customized Hydraulic Mini Small Excavator
Product Description

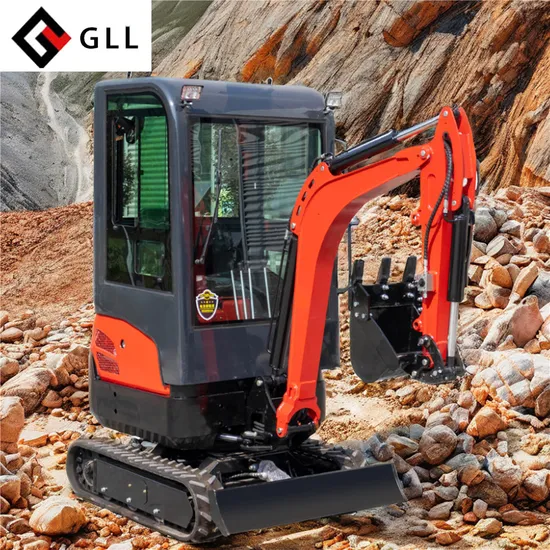

A mini excavator
is a compact, versatile construction machine designed for digging, lifting, and earth-moving tasks in confined spaces. It is characterized by its small size, making it suitable for urban construction sites, landscaping, and small-scale excavation projects.
Key Features:
Compact Size: Allows operation in tight spaces where larger machinery cannot fit.
Hydraulic System: Powers the digging arm, bucket, and other attachments.
Articulated Boom: Offers precise control and maneuverability.
Variable Tracks: Often equipped with extendable tracks for stability and adaptability to different terrain.
Applications:
Urban Construction:
Ideal for excavation, trenching, and site preparation in crowded or residential areas where space is limited.
Landscaping:
Used for grading, planting, and small-scale land modification in gardens and parks.
Utilities and Infrastructure:
Perfect for digging trenches for utilities, such as water and sewer lines, and performing repairs or installations.
Home Improvement:
Suitable for small excavation tasks like digging foundations for home extensions or swimming pools.
Agriculture:
Employed in farming for tasks like digging irrigation ditches, planting trees, or clearing land.
Demolition:
Used for removing small structures, debris, or old landscaping features.

Model	Gll HT10C
Brand	Customized
Dimensions
Weight	1000kgs
Overrall dimension LxWxH	2900x900/930X2180mm
Digging bucket capacity	0.025cbm/120kg
Bucket width	380mm
Engenie	Koop (192F)
Option Engine	Briggs & Stratton
Bore Stoke	Single cylinder, fan cool
Rated power	7kw/3000r/min
Displacement	6.8ml/r
Travel speed	1.5km/h
Wheelbase	910mm
Total length of track	1230mm
Platform ground clearance	380mm
Platform back truning radius	784mm
Chassis width	896mm
Track width	180mm
Chassis ground clearance	132mm
Track height	320mm
Max. Digging depth	1750mm
Max. Vertical Digging depth	1550 mm
Max. Digging height	2610mm
Max. Dumping height	1850mm
Max.Digging Radius on ground	3050mm
Min. Rotation radius	1330mm
Max. Upgrade height of bulldozer blade	345mm
Max. Digging depth of bulldozer blade	255mm

Detailed Photos

Packaging & Shipping
Normally shipped by Sea




FAQ
1. What is the machIne advantage? A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers, Each machine is carefully tested before send to customer.Warranty time for 1 year or 1200 working hours.2. How many units can be put in container?A: 6 units can be in a 20ft container, 12 units can be in a 40HQ container.None packing,and will fixed with wire ropes.3. Are you able to export less than 1 container of mini excavator ? And what's the wooden box's dimension and total weight ?A:Yes ,if 1 unit or 2 units mini excavator machine could shipment by LCL,wooden box;if 4 unit or more than 4 units suggest used 20ft container.If do not have trailer,the wooden box dimension is 2.8x1.12x1.4m ,about 4.3m3;if have trailer the wooden box dimension is 2.8x1.4x1.8m,about 7.54m3. Total weight about 1000kg4. Spare parts supply:A: Spare parts is available all the time.
Any other inquiry, kindly contact us freely.
