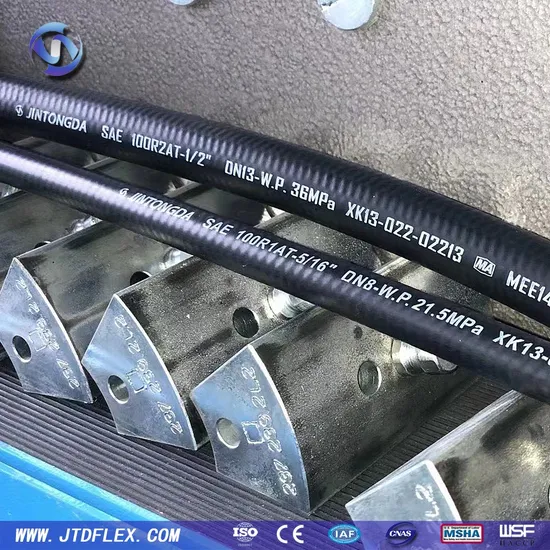

Top Quality Steel Wire Braided R2at Hydraulic Rubber Hose

Product Description

Product Description
Factory direct supply multiple models Hydraulic Hose
Tube: Oil resistant synthetic rubber
Cover: Oil and weather resistant synthetic rubber
Temperature: -40ºC to +240°C
Application: Petroleum-based hydraulic fluid, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Product Parameters

DN	Size		SAE	Inside mm		Braid mm		Outside mm	Working Pressure		Burst Pressure		Bend Radius	Weight	Length
	Inch	mm	Dash	Min	Max	Min	Max	Max	Bar	Psi	Bar	Psi	mm	Kg/m	m
5	3/16"	5	-03	4.6	5.4	9.0	10.0	12.5	250	3625	1000	14500	90	0.19	50/100
6	1/4''	6.3	-04	6.2	7.0	10.6	11.1	14.1	225	3260	900	13050	100	0.21	50/100
8	5/16"	8	-05	7.7	8.5	12.1	12.7	15.7	215	3120	850	12325	115	0.24	50/100
10	3/8''	10	-06	9.3	10.1	14.5	15.1	18.1	180	2610	720	10440	130	0.33	50/100
13	1/2''	12.5	-08	12.3	13.5	17.5	18.3	21.4	160	2320	640	9280	180	0.41	50/100
16	5/8''	16	-10	15.5	16.7	20.6	21.4	24.5	130	1885	520	7540	200	0.45	50/100
19	3/4''	19	-12	18.6	19.8	24.6	25.4	28.5	105	1520	420	6090	240	0.58	50/100
25	1''	25	-16	25.0	26.4	32.5	33.3	36.6	88	1280	350	5075	300	0.88	50/100
32	1 1/4''	31.5	-20	31.4	33.0	39.3	40.5	44.8	63	910	250	3625	420	1.23	20/40
38	1 1/2"	38	-24	37.7	39.3	45.6	46.8	52.1	50	725	200	2900	500	1.51	20/40
51	2''	51	-32	50.4	52.0	58.7	60.2	65.5	40	580	160	2320	630	1.97	20/40

Our Advantages
1.Professional
Our factory was established in 1999 and has more than 20 years of experience in hydraulic hose production.Currently, we have three factories of our own, one for rubber mixing and two for production.
2.High productivity
We have 26 high-speed automatic braiding machinesAt present, our monthly output can be maintained at about 800,000 meters , and the annual output can reach 10 million meters.
3.High quality raw materials
Our factory uses high-quality raw materials to ensure product quality, and we have our own rubber mixing center to control quality from the source.
4.A good after-sales service
During the after-sales validity period, once we receive customer feedback on quality issues, we will respond within 72 hours. Customer satisfaction is our aim. Detailed Photos
Certifications
Company Profile
JUYE JINTONGDA PIPE INDUSTRY CO., Ltd is a professional manufacturer of hydraulic hose and industrial hose with various specifications from 1999. We integrates the Research&Development, Production, Sales Export and focus on the high quality products all the time.
Our company is registered with 21 million RMB capital, covering an area of 30,000 square meters. We are located in the alluvial plain of the Yellow River, with developed transportation and convenient logistics.
We specialize in production and sales of hydraulic hose, now we mainly produce 1SN, 2SN, 4SP and 4SH products in compliance with American standards of SAEJ517 and European standards of DIN.Our annual production capability is 10 million meters around (cloth hose 4million and smooth hose 6million). We use automatic high speed braiding machine and advanced quality management system to ensure the reliability and stability of the products.
We have strict ISO quality control system and after-sales service system as well. Each batch of goods will do burst pressure tests and impulse tests before leaving factory.
JINTONGDA sincerely invite every client to visit our factory, we will serve you wholeheartedly. Sincerely awaiting for your visit
Packaging & Shipping
FAQ
1) Is Jintongda a factory or trade company? Factory built in 1999, turnover 100million RMB.2) How many countries have you exported to? For more than twenty.3) Do you accept OEM orders? Yes, we have our own trademark JTD and Looeit, also customized for OEM orders.4) How long to deliver? 15 days for 1x20'GP, 25 days for 1x40'GP 5) Before deliver, is there any test in your factory? Yes,we have pressure test, appearance test, length measure, routing inspection for 100% products.
