Plug-in Instrument for Rapid Prototyping of Equipment

Product Description

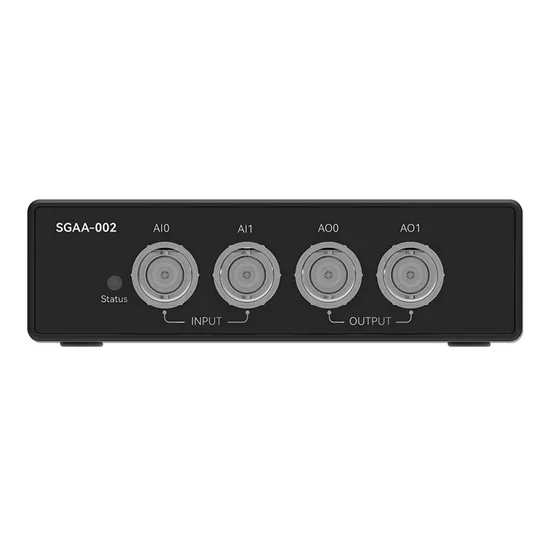

Products Description NYSA Modular Instrument Platform The Nysa Modular Instrument Platform launched includes three forms: Embedded Instrument Module, Plug-in Instrument complete machine and Standalone Instrument. The Embedded Instrument Module is composed of FPGA controller, instrument module and backplane, which can be well integrated into the device. The whole Plug-in Instrument can be used for rapid prototyping of equipment, as well as a multi-function instrument. The Standalone Instrument is small and compact and can be used as a single-function instrument. With Nysa, various functions such as FPGA controller, multimeter, oscilloscope, signal generator, data recorder, and audio analyzer can be easily integrated. At the same time, functions such as firmware download, bus expansion, control and synchronization can be realized through FPGA. Smartgiant can provide customized services oriented to modules, PCBs and comprehensive testers, which based on hardware, logic, firmware and software, and is committed to bringing customers more efficient solutions. Product Details Controllers Specification (Quotation Depends on Configuration)

Controllers	FPGA Models & Parameters	Basic Specification
SG2625-MU01PC-Zynq 7020	Xilinx Zynq 7020, Dual-Core ARM Cortex-A9, Atrix-7 85K-Logic Cell:	1 GB DDR3, 4 GB eMMC, 16 MB Quad SPI Flash, 1 Gb Ethernet, USB 2.0, UART:
SG2625-MU02PC-Zynq 7010	Xilinx Zynq 7010, Dual-Core ARM Cortex-A9, Atrix-7,25K-Logic_Cell;	1 GB DDR3, 4 GB eMMC, 16 MB Quad SPI Flash, 1 Gb Ethernet, USB 2.0, UART:
SG2625-MU03PC-Zynq 7007	Xilinx Zynq 7007, Single-Core ARM Cortex-A9, Atrix-7,23K-Logic_Cell;	512 MB DDR3, 4 GB eMMC, 16MB Quad SPI Flash, 1 Gb Ethernet, USB 2.0, UART:
Nexus Pro -2EG	Xilinx Zynq UltraScale+ZU2EG, Quad-Core ARM, 103K-Logic_Cell,	2 GB DDR4, 16 GB eMMC, 1 Gb Ethernet, USB 3.0 Type-C, UART:
Nexus Pro -4EG	Xilinx Zynq UltraScale+ZU4EG, Quad-Core ARM, 192K-Logic_Cell, 16 lane Serdes;	2 GB DDR4, 16 GB eMMC, 1 Gb Ethernet, USB 3.0 Type-C, UART:
Nexus Pro -7EG	Xilinx Zynq UltraScale+ZU7EG, Quad-Core ARM, 504K-Logic_Cell;	2 GB DDR4, 16 GB eMMC, 1 Gb Ethernet, USB 3.0 Type-C, UART;

Instrument Module Specification (Quotation Depends on Configuration)

Type	Module	Basic Specification	Embedded	Plug-in	Standalone
DMM	SG2700-AD01PC-C	6½-bit precision, 24-bit resolution, 5S/s ~ 250kS/s, DCV, DCI	√	√
	SG2700-AD03PC-D	6 ½-bit precision, 24-bit resolution, 5S/s ~ 250kS/s, DCV, DCI, ACV, diode, 2/4 line resistance	√	√	√
	SG2700-AD05PC-D	24-bit resolution, 2-wire capacitance, 2% precision	√	√	√
	SG2700-AD07PC-C	6½-bit precision, 24-bit resolution, 5S/s ~ 250kS/s, DCV, DCI	√	√
Scope	SG2625-AD01PC-B	12-bit ADC, 40Msps, 20MHz bandwidth, 1-channel differential input	√	√
	SG2625-AD05PC-D	12-bit,125MSPS,30MHZ bandwidth,single-ended, 2-channel	√
Signal Source	SG2625-DA01PC-G	16-bit DAC, 50Msps, 4MHz bandwidth, 1-channel output	√	√
	SG2625-DA02PC-D	12-bit,125 MSPS,10MHZ bandwidth, 1-channel	√
Data Logger	SG2625-AD02PC-F	24-bit ADC, 125Ksps, DCI, 1-channel current input	√	√
	SG2625-AD06PC-D	24-bit ADC, 250Ksps, DCV, 2-channel voltage input	√	√
Audio Analyzer	SG2700-AU01PC-D	24-bit ADC, 192KSPS, 1-channel single-ended input @THD-106 dB/THD+N-82 dB @THD-104dB/THD+N-102 dB	√	√	√
	SG2700-AU02PC-B	24-bit ADC, 192KSPS, 1-channel differential input @THD-106 dB/THD+N -83 dB @THD-106 dB/THD+N-102 dB	√	√	√
	SG2700-AU05PC-B	24-bit ADC, 2-channel differential input @THD-102dB/THD+N-82dB @THD-100 dB/THD+N-97dB	√	√

Company Introduction Why Choose Us Our Advantages 1. Global Leading Customers: Amazon, Lenovo, Facebook, HUAWEI, VIVO, etc. 2. Mature used in 3C automatic production line and automatic production equipment, such as mobile phone, computer, tablet, mobile phone, etc. 3. 15+ years in AI vision inspection & automated testing.
4. Certificate: ISO-14001,ISO-27001,CE,CCC, 41 Copyrights, 32 Patents.
5. More than $30 million Revenue in recent 3 years.
6. 7X24 hours Aftersales service and technical support.
7. Plant Area: 4800 Square meter
R&D Lab & Automatic Assembly Line Exhibition
