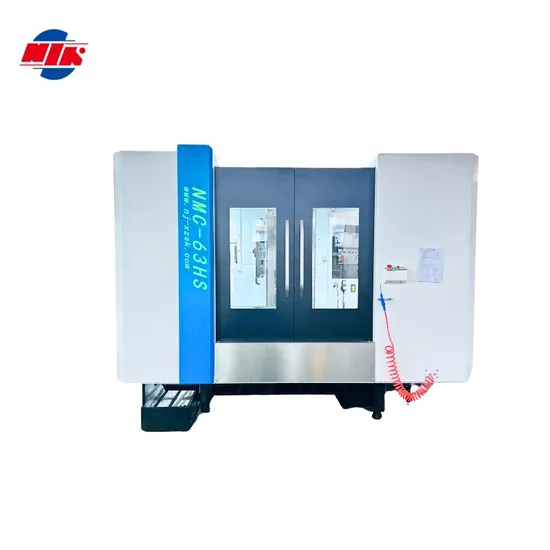

Nmc63HS Horizontal Machining Center Large Size CNC Machining Center Machine with Two Spindle CNC Machine CNC Lathe Tools Machinery with High Precision
| US$10,000.00-200,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
NMC63HS
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Delivery Time
in Stock
Table Indexing Number
0.001
Table Form
5-22*125t
Max.Loading of Worktable
1500
Max. Workpiece Swing Diameter on Worktab
1100
Max. Turning Speed of Turntable
6
Cutting Feed Speed
0.005~6
Spindle Motor Power
17.5kw
Shank Form
Bt50
Max.Tool Weight
18
X/Y/Z Axis Position Accuracy
0.012
Repeat Position Accuracy
10″/5″
Spindle Torque
143/236
Tool Magazine Capacity/Form
60
X/Y/Z/ Turntable Axis Servo Motor Torque
27/27/36/20
Transport Package
Suitable for Sea Shipping
Specification
3850*3550*3200
Trademark
XINZHE
Origin
Nanjing China
Production Capacity
300 Sets/Year
Product Description
SPECIFICATIONS
| Specification | NMC63HS | |
| Worktable size (W×L) | mm | 630x630 |
| Table indexing number/pallet exchange time | Deg | 0.001° |
| Table form (,No.*screw hole) | mm | 5-22*125T |
| Max.loading of worktable | kg | 1500 |
| Distance from spindle center to worktable | mm | 70~970 |
| Distance from the spindle front end to worktable center | mm | 200~1120 |
| Max. Workpiece swing diameter on worktable | mm | 1100 |
| X/Y/Z axis travelling | mm | 1100/900/920 |
| X/Y/Z guideway | XYHeavy Duty Linear Rolling Guide Z slide guideway | |
| X/Y/Z quickly move speed | m/min | 20/20/18 |
| Max. Turning speed of turntable | r/min | 6 |
| Cutting feed speed | m/min | 0.005~6 |
| X/Y/Z/ turntable axis servo motor torque Power | Nm kw | 27/27/36/20 3.0/3.0/3.0/2.5 |
| Spindle motor power | KW | 17.5KW |
| Spindle speed range | r/min | 45~6000 |
| Spindle torque | Nm | 143/236 |
| Tool magazine capacity/form | pcs | 60 tool |
| Shank form | BT50 | |
| Max.tool weight | kg | 18 |
| Max. tool size (diameter/length) | mm | Φ115(NeighborhoodΦ200)/500 |
| Tool change time (tool to tool) / tool change method | Sec | 5 / Random |
| X/Y/Z axis position accuracy | mm | 0.012/0.012(Two-way full course, according to Germany VDI/DGQ 3441standard test) |
| X/Y/Z axis repeat position accuracy | mm | 0.008(Two-way full course, according to Germany VDI/DGQ 3441standard test) |
| Turntable position accuracy/repeat position accuracy | ″ | 10″/5″ |
| CNC system display | ″ | 10″ /5 color (Closed-loop control required when selecting 0.001° CNC rotary table) |
| Air pressure | MPa. | 0.5~0.7 (flow:800L/min) |
| Electricity demand | KVA | 35 (three-phase AC 380V± 10%,50Hz± 1Hz) |
| Machine size (L×W×H) | mm | 3850×3550×3200 |
| Machine weight | kg | 12100 |
Detailed Photos
Packaging & Shipping
Exhibition Show
Company Profile
After Sales Service
CERTIFICATIONS
FAQ
| FAQ | |
| Q1 A1 | How can I choose the most suitable machines ? If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you. If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you. |
| Q2 A2 | Where is our factory located? How can I visit there? Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory. |
| Q3 A3 | How is the warranty? We will supply standard ports and accessories with our machine when shipment. Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge. |
| Q4 A4 | Do you have a stock? Our Chinese market order is very good, we have many machines produce everyday and delivery everyday. Our fastest delivery time for 1~5 sets will be within one month. |
| Q5 A5 | How about your quality? We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system. Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. |
| Q6 A6 | Do you have professional engineers? Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality. |
| Q7 A7 | What is the package? Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation. |
| Q8 A8 | What's your main products of your company? We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool . |
| Q9 A9 | What's the MOQ? One set. The big discount will start from three sets. |
| Q10 A10 | What's the Payment Terms ? T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation. |
| Q11 A11 | What is the charge of installing and commissioning? Most of machines you can install well according to our drawing. For some machines, it need our technician to go to your local site and help you install and commission machines. At the same time, our technician will train your workers, it will table about 7~15days for different machines. The return air-tickets, accommodation, food, salary (USD150.00/day for each technician), etc will be born by the end-user. |
