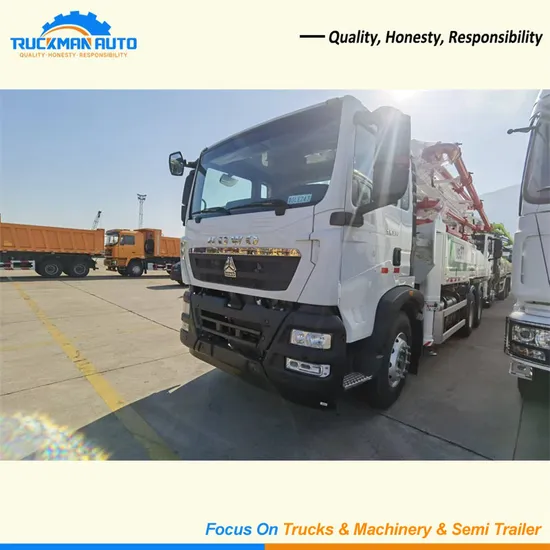

SINOTRUK HOWO XS37 37 Meters Concrete Pump Truck

Product Description

Product Introduction
Concrete Pump Truck Introduction
The concrete pump truck is composed of five parts: boom, pumping, hydraulic, support and electric control. Concrete pump truck is transformed on the chassis of the load carrying vehicle, which is installed on the chassis with motion and power transmission device, pumping and mixing device, fabrication device and some other auxiliary devices. The power of the concrete pump truck transmits the engine power to the hydraulic pump unit or rear axle through the power splitter box, and the hydraulic pump pushes the piston to drive the concrete pump to work. Then the concrete is transported to a certain height and distance by using the placing rod and conveying pipe on the pump truck.


Product Parameters
SINOTRUK XS37 Concrete Pump Truck Specification

PARAMETER
Overall Dimension	11000x2500x3900mm
Weight	25200kg
Engine
Type	MCO7H.35-50
Rated power	257KW
Max. torque	1400Nm
Displacement	7.36L
Pumping System
Theoretical output	120m³/h
Concrete pumping pressure	8MPa
Theoretical pumping times	28Time
Filling height	1540mm
Placing Boom
Reach height	37m
Reach depth	24.9m
Slewing radius	32.5m
Slewing angle	360°
Stabilizer Span
Longitudinal span of stabilizer	7000mm
Transverse span of front stabilizer	6500mm
Transverse span of rear stabilizer	7350mm
Other
Lubrication method	Automatic lubrication
Control method	Manual/remote control

Product Features
SINOTRUK HOWO XS37 Pump Truck Boom System
In the structure of concrete pump truck, the boom system is one of the key components.The boom system of concrete pump truck is a collapsible and unfoldable linkage mechanism, which includes components such as rotary table, multi-section boom, linkage, hydraulic cylinder, conveying pipe and connectors. The boom system realizes the long-distance conveying of concrete in horizontal and vertical directions through the raising, lowering, extending and closing of the boom, and is not affected by intermediate obstacles. During the working process, it is forbidden to stand people under the concrete placing boom.
Anti-rust Measures
Concrete Mixer Truck Waterproof Tarpaulin

When our construction machinery is shipped, it is covered with a waterproof tarpaulin, which can avoid seawater touching the surface of the construction machinery and reduce mechanical corrosion and rust. Tarpaulins protect cargo from moisture, debris and potential damage. By creating a waterproof barrier, a tarp prevents water from seeping in, which can lead to corrosion or damage to the cargo. In addition, it helps to keep dust, dirt and other contaminants out, maintaining the cleanliness and integrity of the cargo.

After Sales Service
HOWO XS37 37 Meters Concrete Pump Truck After-sales Service

We have a specialized parts warehouse, can provide various brands of bulldozers, excavators, loaders, rollers, pavers and other construction machinery equipment and parts. At the same time for the majority of construction machinery parts product users to provide engines, chassis, hydraulic systems, transmission systems and other comprehensive construction machinery parts product solutions. Our logistics transportation is also very fast, can quickly help customers get the parts.

Mechanical Inspection Services
SINOTRUK 37 Meters Concrete Pump Truck Inspection Services

When our construction machinery arrives at the port of shipment, we have specialists inspect the vehicle for breakages, scratches and whether it has been sprayed with anti-rust wax to ensure that the machinery is in perfect condition before shipment. We store spare parts for the machinery in a locked toolbox in case they are lost at the destination port. There are two sets of keys for the machinery and we will send you a separate set by DHL Express, as very often the freight companies get the keys mixed up and we will send you the keys to avoid any trouble.
