Factory Price Manufactured Decoration Material Anti-Static Access Floor System HPL Panel for Computer Room, Data Center

Product Description

Anti-static Access Floor-HPL Panel Product Description Anti-static Access Floor-HPL Panel

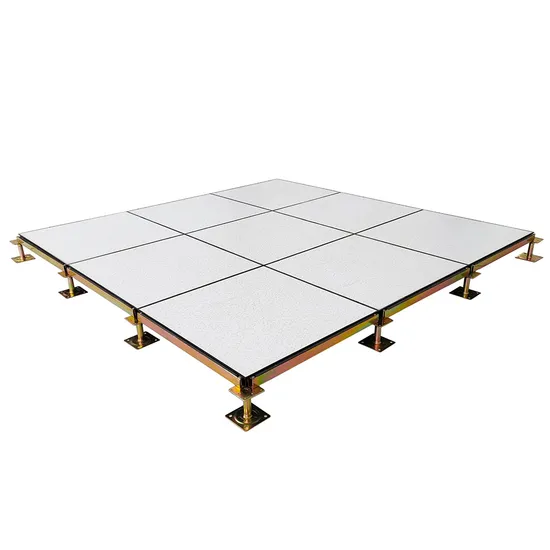

HT Well Design Data Center HPL Covering Steel Raised Floor is made of good quality cold-rolled steel sheet, which is stretched, spot-welded, and coated with epoxy powder after having been phosphoreted. There is foaming cement fully filled. The surface is stuck with High Pressure Laminate (HPL) or Conductive PVC tile. The borders are trimmed with conductive rubber edges.
Anti-static Access Floor-HPL Panel Characteristics
--Excellent antistatic performance
--Flame retardant, antiskid, antirust, antisoil
--Mighty glue, strong wearability, non-bubble, non-degumming
--Class A flame spread and smoke development rating
Zinc Galvanized Pedestal&Stringer
Hot-dipped Galvanized Pedestal&Stringer
Product Parameters Technical Paramter of Anti-static Access Floor-HPL Panel

Type	Size	Uniform load	Concentrated load		Rolling load		Impact load	Ultimate load
			0.100''/2.5mmDEFLECTION		10PASS	10KPAAASS
FS662	600*600*34mm	14.71KN/	2.94KN	300KG	2.45KN	2.00KN	100LB/45KG	8.85KN
	610*610*35mm
FS800	600*600*34mm	17.78KN/	3.56KN	363KG	2.94KN	2.45KN	100LB/45KG	11.25KN
	610*610*35mm
FS1000	600*600*34mm	22.22KN/	4.45KN	454kG	3.56KN	2.67KN	150LB/68KG	14.50KN
	610*610*35mm
FS1250	600*600*34mm	27.78KN/	5.56KN	567KG	4.45KN	3.56KN	150LB/68KG	18.36KN
	610*610*35mm
FS1500	600*600*34mm	33.34KN/	6.68KN	680KG	5.56KN	4.45KN	175LB/68KG	22.17KN
	610*610*35mm
FS2000	600*600*34mm	44.45KN/	8.89KN	907KG	6.67KN	5.56KN	175LB/79KG	29.42KN
	610*610*35mm

Application Scenario Computer room, data center, control room, laboratory, office building, bank, post telegraph, power control center, workshop and places where require antistatic environment or have many wires.
Our Advantages
Company Profile Welcome to Changzhou Huateng Access Floor Co., Ltd. Huateng has specialized in Raised Access Floor since 1993. With continuous innovation and development, we are now covering 80, 000 square meters with more than 200 employees.Huateng has been certificated in both ISO9001 and ISO14001 systems. For steel raised floor production, we developed an digital automatic production line, from steel cutting to welding. Huateng raised access floors are widely used in offices, computer rooms, data centers, clean rooms and other public places. Since the birth of the company, we've begun to develop our oversea markets. We continue to export various types of our products around the world such as steel cementatious raised floor, woodcore raised floor, calcium sulphate raised floor, encapsulated panels, air flow panels and understructures."Whatever You Load, HT Panels Can Hold". Following this philosophy, Huateng has earned the trust of customers from Asia, North America, Middle East, USA and Europe. Huateng diligently strives for cooperation with both domestic and international friends.
Packaging & Shipping
Certifications
