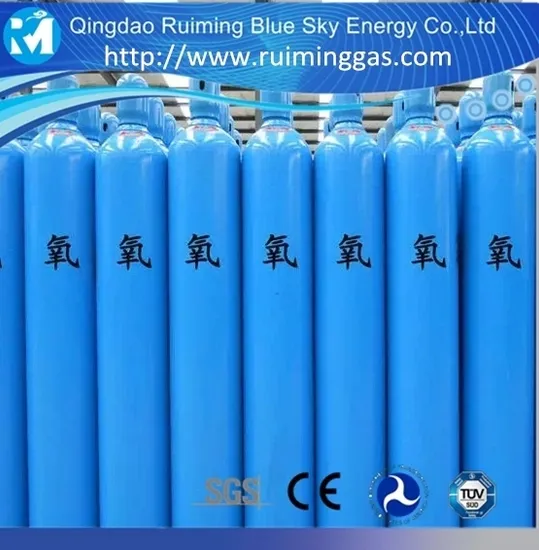

Wholesale 15L Medical Oxygen Cylinder 150bar Steel Tank
| US$60.00-70.00 | 100 Pieces (MOQ) |
Basic Info.
Material
Stainless Steel
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Diameter
219-232-267 mm
Capacity
10L, 20L, 40L, 50L
Working Pressure
150 Bar/ 200 Bar
Standard
ISO 9809-3/ DOT./ TUV
Material No.
37mn/ 34CrMo4
Cap/ Handle
All Accepted
Bottom Shape
Concave
Neck Thread
with Neck Thread
Painting Color
Based on Customer′s Request
Report
Hydraulic Test Report/ Batch Test Report
Transport Package
Plastic Net
Specification
219/232 diameter, 10-60L capacity
Trademark
RM
Origin
Qingdao, China
HS Code
7311009000
Production Capacity
60000 PCS Per Month
Product Description
Our Seamless Steel Oxygen Cylinders are mainly produced conformity with Standard GB5099-94, ISO9809-1/3 and EN1964. The raw material is either Seamless Steel Pipe or Steel Billet.Our Seamless Steel Oxygen Cylinders can be widely used in many fields, such as industry, medical equipment, fire protection and scientific research, for storage and transport of permanent gases and high pressure liquefied gases, such as Oxygen Gas, Carbon Dioxide Gas, Argon Gas, Nitrogen Gas, Helium Gas, Carbon Monoxide Gas, SF6 Gas, N2O gas, Air, etc.
Our Oxygen Cylinder is widely applied in chemical, metallurgical, mechanical, medical, scientific research and building industry.
What we can promise for you:
1. High quality and security gas cylinders
2. Best price in the market
3. Fast delivery (3~4 weeks)
| Type | Diameter (mm) | Capacity (L) | Height (mm) | Weight (kg) | Working pressure(Mpa) | Design wall thickness(mm) | Material |
| WMA108-1.4-15 | 108 | 1.4 | 240 | 2.8 | 15 | 2.9 (GB5099) 3.2 (ISO9809- 3) | 37Mn |
| WMA108-2-15 | 2 | 310 | 3.5 | ||||
| WMA108-3-15 | 3 | 437 | 4.8 | ||||
| WMA121-2.8-15 | 121 | 2.8 | 350 | 4.6 | 15 | 3.5 | 37Mn |
| WMA121-3-15 | 3 | 375 | 4.9 | ||||
| WMT121-4-15 | 4 | 477 | 5.8 | ||||
| WMA140-4-15 | 140 | 4 | 372 | 5.77 | 15 | 4.1 | 37Mn |
| WMA140-5-15 | 5 | 458 | 7.52 | ||||
| WMA140-8-15 | 8 | 671 | 10.72 | ||||
| WMA152-7-15 | 152 | 7 | 528 | 9.57 | 15 | 4.4 | 37Mn |
| WMA152-8-15 | 8 | 600 | 10.66 | ||||
| WMA152-10-15 | 10 | 726 | 12.6 | ||||
| WMA152-15-15 | 15 | 1012 | 17.7 | ||||
| WMA159-4-15 | 159 | 4 | 320 | 6.8 | 15 | 4.4(GB5099) 4.7(ISO 9809-3) | 37Mn |
| WMA159-8-15 | 8 | 554 | 10.8 | ||||
| WMA159-10-15 | 10 | 665 | 12.7 | ||||
| WMA159-15-15 | 15 | 945 | 17.5 | ||||
| WMA180-8-15 | 180 | 8 | 475 | 13.9 | 15 | 5.3 | 37Mn |
| WMA180-10-15 | 10 | 565 | 16.2 | ||||
| WMA180-12-15 | 12 | 655 | 18.4 | ||||
| WMA180-15-15 | 15 | 785 | 21.7 | ||||
| WMA180-20-15 | 20 | 1010 | 27.3 | ||||
| WMA219-20-15 | 219 | 20 | 710 | 27.8 | 15 | 5.7(GB5099) 6.1( ISO 9809-3) | 37Mn |
| WMA219-40-15 | 40 | 1325 | 48.5 | ||||
| WMA219-45-15 | 45 | 1455 | 50.8 | ||||
| WMA219-50-15 | 50 | 1605 | 55.6 | ||||
| WZA232-40-15 | 232 | 40 | 1160 | 44.2 | 15 | 5.3 | 37Mn |
| WZA232-47-15 | 47 | 1350 | 50.3 | ||||
| WZA232-50-15 | 50 | 1430 | 53 | ||||
| WZA267-40-15 | 267 | 40 | 930 | 45.5 | 15 | 5.8 | 37Mn |
| WZA267-50-15 | 50 | 1127 | 53.9 | ||||
| WZA267-70-15 | 70 | 1521 | 70.7 | ||||
| WGA232-30-20 | 232 | 30 | 916 | 37.4 | 20 | 5.2 | 34CrMo4 |
| WGA232-38-20 | 38 | 1127 | 44.8 | ||||
| WGA232-40-20 | 40 | 1180 | 46.7 | ||||
| WGA232-46.7-20 | 46.7 | 1358 | 52.9 | ||||
| WGA232-47-20 | 47 | 1366 | 53.2 | ||||
| WGA232-50-20 | 50 | 1445 | 56 | ||||
| WGA232-60-20 | 60 | 1710 | 65.2 |
Our Seamless Steel Oxygen Cylinders are mainly produced conformity with Standard GB5099-94, ISO9809-1/3 and EN1964. The raw material is either Seamless Steel Pipe or Steel Billet.
Our Seamless Steel Oxygen Cylinders can be widely used in many fields, such as industry, medical equipment, fire protection and scientific research, for storage and transport of permanent gases and high pressure liquefied gases, such as Oxygen Gas, Carbon Dioxide Gas, Argon Gas, Nitrogen Gas, Helium Gas, Carbon Monoxide Gas, SF6 Gas, N2O gas, Air, etc.
Our Oxygen Cylinder is widely applied in chemical, metallurgical, mechanical, medical, scientific research and building industry.
What we can promise for you:
1. High quality and security gas cylinders
2. Best price in the market
3. Fast delivery (3~4 weeks)
| Type | Diameter (mm) | Capacity (L) | Height (mm) | Weight (kg) | Working pressure(Mpa) | Design wall thickness(mm) | Material |
| WMA108-1.4-15 | 108 | 1.4 | 240 | 2.8 | 15 | 2.9 (GB5099) 3.2 (ISO9809- 3) | 37Mn |
| WMA108-2-15 | 2 | 310 | 3.5 | ||||
| WMA108-3-15 | 3 | 437 | 4.8 | ||||
| WMA121-2.8-15 | 121 | 2.8 | 350 | 4.6 | 15 | 3.5 | 37Mn |
| WMA121-3-15 | 3 | 375 | 4.9 | ||||
| WMT121-4-15 | 4 | 477 | 5.8 | ||||
| WMA140-4-15 | 140 | 4 | 372 | 5.77 | 15 | 4.1 | 37Mn |
| WMA140-5-15 | 5 | 458 | 7.52 | ||||
| WMA140-8-15 | 8 | 671 | 10.72 | ||||
| WMA152-7-15 | 152 | 7 | 528 | 9.57 | 15 | 4.4 | 37Mn |
| WMA152-8-15 | 8 | 600 | 10.66 | ||||
| WMA152-10-15 | 10 | 726 | 12.6 | ||||
| WMA152-15-15 | 15 | 1012 | 17.7 | ||||
| WMA159-4-15 | 159 | 4 | 320 | 6.8 | 15 | 4.4(GB5099) 4.7(ISO 9809-3) | 37Mn |
| WMA159-8-15 | 8 | 554 | 10.8 | ||||
| WMA159-10-15 | 10 | 665 | 12.7 | ||||
| WMA159-15-15 | 15 | 945 | 17.5 | ||||
| WMA180-8-15 | 180 | 8 | 475 | 13.9 | 15 | 5.3 | 37Mn |
| WMA180-10-15 | 10 | 565 | 16.2 | ||||
| WMA180-12-15 | 12 | 655 | 18.4 | ||||
| WMA180-15-15 | 15 | 785 | 21.7 | ||||
| WMA180-20-15 | 20 | 1010 | 27.3 | ||||
| WMA219-20-15 | 219 | 20 | 710 | 27.8 | 15 | 5.7(GB5099) 6.1( ISO 9809-3) | 37Mn |
| WMA219-40-15 | 40 | 1325 | 48.5 | ||||
| WMA219-45-15 | 45 | 1455 | 50.8 | ||||
| WMA219-50-15 | 50 | 1605 | 55.6 | ||||
| WZA232-40-15 | 232 | 40 | 1160 | 44.2 | 15 | 5.3 | 37Mn |
| WZA232-47-15 | 47 | 1350 | 50.3 | ||||
| WZA232-50-15 | 50 | 1430 | 53 | ||||
| WZA267-40-15 | 267 | 40 | 930 | 45.5 | 15 | 5.8 | 37Mn |
| WZA267-50-15 | 50 | 1127 | 53.9 | ||||
| WZA267-70-15 | 70 | 1521 | 70.7 | ||||
| WGA232-30-20 | 232 | 30 | 916 | 37.4 | 20 | 5.2 | 34CrMo4 |
| WGA232-38-20 | 38 | 1127 | 44.8 | ||||
| WGA232-40-20 | 40 | 1180 | 46.7 | ||||
| WGA232-46.7-20 | 46.7 | 1358 | 52.9 | ||||
| WGA232-47-20 | 47 | 1366 | 53.2 | ||||
| WGA232-50-20 | 50 | 1445 | 56 | ||||
| WGA232-60-20 | 60 | 1710 | 65.2 |
Advantages of our gas cylinders: HIGH QUALITY
We have implemented strict and complete quality control system, which ensures each gas cylinder can meet quality requirements. All gas cylinders must be strictly inspected before shipment. COMPETITVE PRICE
As a big gas cylinder factory, our output is over 4000 PCS per day, that will effectively reduce labor cost and other cost of gas cylinders like valve and raw materials. That's why we could always offer you best price !
GOOD AND PROFESSIONAL SERVICE
We have worked in this field for over 10 years, all of our egineers and sales could supply best suggestions and answers for your queations, no matter gas cylinders or the gas filling process in fillowing.
Since now, we could supply you:
1. Gas filling service: N2O, Argon, CO2, Helium, Oxygen, Nitrogen, ect.
2. Used Gas cylinder insepection service too keep safe
3. Related gas equipment supply
When you chose RUIMING, you chose a trustworthy partner! FAST DELIVERY TIME
Normal delivery time for 40L gas cylinder: 15 days
50L 200 BAR gas cylinders: 25-30 days
If you need gas filling , it will take more 10 days.
OEM ACCEPTED
OEM is accepted in our company, no matter COLOR, VALVE, CAP/HANDLE, and marks. All these could be fully filled.
