Jieda PGZ1000 Model Vertical Type Electric Centrifuge Machine

Product Description

Jieda PGZ1000 Model Vertical Type Electric Centrifuge Machine Introduction of PGZ1000 Model Electric Centrifuge Machine:
PGZ1000 centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users' demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid.
Main Features of PGZ1000 Model Electric Centrifuge Machine:
1. Automatic operation, continuous operation
2. Excellent dehydrating performance
3. Low power consumption, high handling capacity
4. Small machine with compact design
5. Stable running even when the flow changes
6. Suits for various kinds of materials
Special Allocation of PGZ1000 Model Electric Centrifuge Machine:
1. Cleaning and spraying system
2. Nitrogen protection system
3. RF admittance material process control
4. PLC program control
5. Hydraulic action system
6. Gas auxiliary scraper
7. No basic form(equipped with vibration isolation chassis +vibration damper).
8. The corresponding stainless steel(SUS304,321,316L,or titanium) is adopted according to anticorrosive requirements for users' materials to be separated.
Standard Manufacturing Form of PGZ1000 Model Electric Centrifuge Machine:
1.Structure: The housing is equipped with the feeding pipe, washing pipe, sight glass, exhaust port, and lighting hole. The closed structure, bowl, housing and cover are made of stainless steel SUS304. The machine base is made of castings. The surface is coated with stainless steel. The interior and exterior surfaces of bowl and housing, and the surface of exposed parts in the machine are all subjected to polishing treatment.
2.All fasteners are made of stainless steel.
3.PLC control is adopted.
4.Electromechanical material process control.
5.Driving and braking: ordinary motor (or explosion-proof motor) + frequency converter + dynamic braking.
6.Pneumatic system or hydraulic system.
7.Foundation-free type (balancing block + imported high-precision liquid damping agent type vibration isolator).
Main Technical Parameters of PGZ1000 Model Electric Centrifuge Machine:

Model	Drum				Separation Factor(ω²r/g)	Motor Power(KW)	Cover Height(mm)	Machine Weight(kg)	Dimensions(mm)
	Diameter(mm)	Working Volume(L)	Loading Limit(kg)	Speed(R/Min)
PGZ-800	800	100	135	1200/1500	645/1008	7.5/11	2130	2500	1800*1300*1880
PGZ-1000	1000	175	235	1000/1200	560/806	11/15	2500	3500	2100*1430*2150
PGZ-1250	1250	400	530	1000/1200	700/1008	22/30	3000	4500	2300*1700*2350
PGZ-1250A	1250	505	650	1000	700	22	3120	5000	2300*1700*2700
PGZ-1500	1500	625	935	880	645	37	3650	7800	2800*2050*2820
PGZ-1600	1600	790	1050	850	647	37	3785	8500	2900*2160*2820

Drawings of PGZ1000 Model Electric Centrifuge Machine:
1. Scraper cylinder
2. Cover
3. Shell
4. Drum
5. Bearing pedestal
6. Motor
7. Frame
8. Shock absorber
9. Feeding pipeline
10. Manhole
11. washing pipe
12. Nitrogen pipe
13. Level detector
14. Water outlet pipe

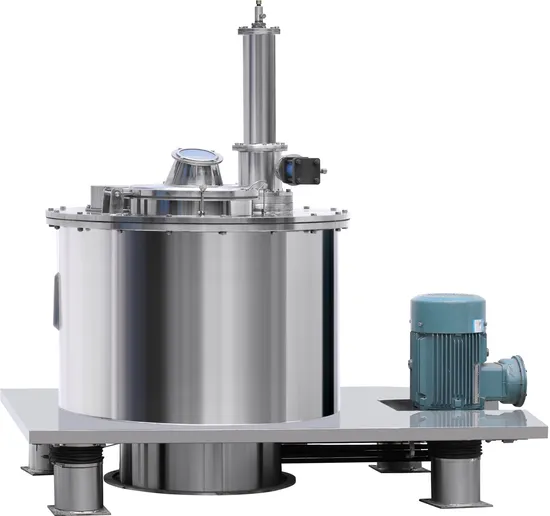

Photo of PGZ1000 Model Electric Centrifuge Machine:
Company Profile:
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Certificates of Our PGZ1000 Model Electric Centrifuge Machine:
Our Centrifuge Workshop:
Jieda has high-precision CNC machining tools and machining centers, advanced production equipment, fine technique and strict and perfect quality management system, and moreover, we gather professional elites and science and technology team with leading level, so as to make full use of new technologies, new techniques and new materials to guarantee stability and reliability of products. Our product quality originates from advanced manufacturing means, and the concept of fine products stems from continuous innovation.
