Sh380 Mining Construction Machineslarge-Size Digger Excavator

Product Description

Jiubang Earth-moving machinery crawler excavator Product Description

Basic parameters
Working weight	37000KG	power	212KW/2000rpm
Bucket Capacity	1.62-1.82m3	Hydraulic System	Linde
Working device form	backhol	min. groundl clearance	565mm
Walking motor	Rexroth/OK
Dimensions
Overall length	11161mm	Overall width	3200mm
Transport height	3347mm	Overall width of upperstructure	3195.3mm
Overall height of cab	3293mm	Shoe width	600mm
Track gauge	2600mm	Min. ground clearance	565mm
Tail swing radius	3438mm	Track ground length	5872mm
Performance specifications
Rated Power	212KW/2000rpm	Travel speed(H/L)	5.0-3.0km/h
Swing speed	9.7rpm	Gradeability35°	70%
Max. digging force	272KN
Working scope
Max. digging height	11056mm	Max. dumping height	6905mm
Max. digging depth	6755mm	Max. vertical wall digging depth	6452mm
Max. digging reach	10645mm	Min. swing radius	4418mm

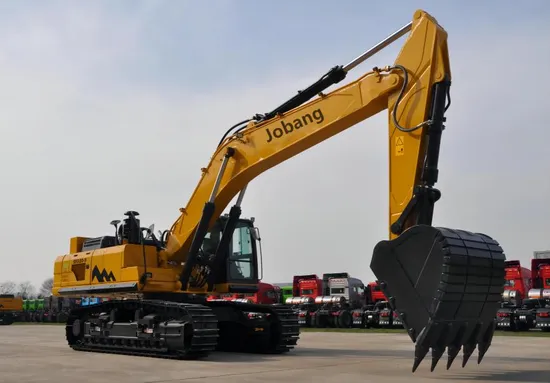

Product Show
Company Profile

Jiubang Heavy Industry, located in Jining, Shandong, China, is a well-known enterprise in the heavy machinery manufacturing industry and a national high-tech enterprise. The company started in 2010. The new factory covers an area of more than 60,000 square meters, with 370 employees and more than 350 after-sales outlets. An enterprise integrating industry and trade, focusing on the research and development, design, production and sales of aerial work vehicles, suspension cranes, folding arm cranes, spider crawler cranes, forklift trucks, new energy engineering vehicles, laser screed machines and other products. With laser cutting machines, bending machines, fully automatic digital processing equipment, and a number of technical patents, it provides better products and services for global customers. The products are exported to more than 20 countries and regions including Russia, Southeast Asia, Kazakhstan, the Middle East, and Africa. We sincerely invite businessmen from all over the world to develop together.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Can you meet my special requirements?
A: Yes, we accept customization.
3: What about the delivery time?
A: Generally, it will take 3 days after payment arrived.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
