Monoblock Infrared Automatic CNC Stone Cutting Machine Bridge Saw Chamfering in Canada

Product Description

Product Description
What it do?
Our bridge stone cutting machines are designed to cut big slabs of marble, granite, quartz, and other material into needed sizes. A chamfering function and a 360 rotation worktable are optional based on the needs of clients.
We have four models of bridge stone-cutting machines to meet the needs of our customers.

	Charming Function	360 Rotating Worktable	Max. Cutting Size (L*W*H)
YTQJ-500	×	×	3200*2000*110 mm
YTQJ-500B	×	√	3200*2000*110 mm

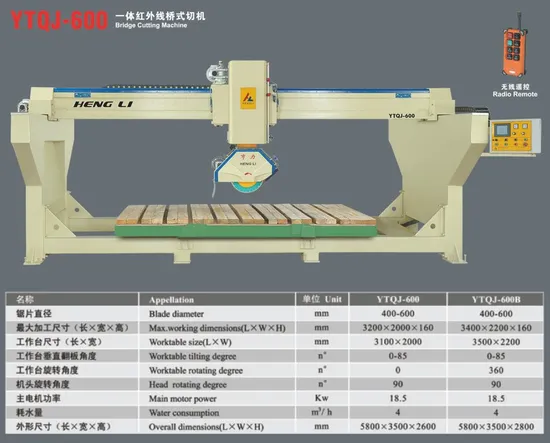

YTQJ-600	√	×	3200*2000*160 mm
YTQJ-600B	√	√	3400*2200*160 mm

The Parameter

	UNIT	YTQJ-500	YTQJ-500B	YTQJ-600	YTQJ-600B
Blade Diameter	mm	400-500	400-500	400-600	400-600
Max. Processing Size (L*W*H)	mm	3200*2000*110	3200*2000*110	3200*2000*160	3400*2200*160
Worktable Size (L*W)	mm	3100*2000	3100*2000	3100*2000	3500*2200
Worktable Tilting Degree	n°	0-85	0-85	0-85	0-85
Worktable Rotating Degree	n°	χ	0-360	χ	0-360
Head Rotating Degree	n°	0/90	0/90	0/90	0/90
Head Tilting Degree	n°	χ	χ	0-50	0-50
Main Motor Power	Kw	18.5	18.5	18.5	18.5
Water Consumption	m3/h	4	4	4	4
Overall Dimensions (L*W*H)	mm	5800*3500*2250	5800*3500*2250	5800*3500*2600	5800*3500*2800
Weight	t	5	6	5.5	6.5

The Structure
These machines have an integrated bridge structure. They consist of a crossbeam, a rotatable worktable(driven by the hydraulic system), two support columns, and a spindle box with a tiltable cutting head.

How it works?
It is equipped with a PLC control system with a human-machine interface that can manage the cutting speed, the cutting quantity, and the cutting size.

More Details
1. The cutting head (blade) can rotate to 90 degrees to cut the slabs. Without rotating the worktable, it can reduce the movement of slabs and eventually increase the accuracy.
2. The cutting heads (blade) can tilt to 50 degrees to chamfer slabs.
_____________________________________________________________________________________________________________________________________________________________
1. The worktable can tilt to 85 degrees in order to place and move away slabs easier.
2. The worktable can rotate from 0 to 360 degrees and stop at any degrees between the range. Working with the head, users can cut such triangle shapes as well.
_______________________________________________________________________________________________________________

The machine includes a screen, a remote control, and some convenient buttons, allowing users to control the machine in multiple ways. The working speed is adjustable based on the processing materials. The maximum cutting size can be 3400mm (L) x 2200mm (W) x 160mm (H)
___________________________________________________________________________________________________________________________________________________________
It is equipped with an infrared alignment device. The device provides users with visualization of the starting cutting position of slabs, which can help to save materials. These machines are equipped with sensors to detect the forward and backward movement of the crossbeam and the up and down movement of the head. They can make sure safety and improve efficiency. ________________________________________________________________________________________________________________________________
The key components of these machines such as inverter, touch screen, and frequency converter are supplied by the best companies in the world.
Our Service
Pre-service
Before the sale, we welcome customers to visit our factory or to help arrange to visit our existing customers' factories. Professional purchasing advice. We guarantee all of our machines will be checked and tested before handing over to our customers.
After Sales Installation services: In many counties including America, Canada, Malaysia, Singapore, Africa (most African countries), Australia, and New Zealand, we have some regular staff or working partners in those countries to provide service. For other counties, we will send staff from our company to provide installation service. One-year warranty for all of our machines. For those machines out of warranty, we can still provide technical support. We work with many transportation companies with a good reputation and competitiveness in price. Related Products
Company Profile
HENGLI was established in 2007. We are a designer and manufacturer of stone processing machinery in Quanzhou China. Our range of machines mainly includes stone cutting machines, stone polishing machines, stone profiling machines and 5-axis stone working centre (multiple functions). We have our own technical team to constantly improve the function and quality of our machines, and we also have a great sale team to support our customers. We sell our products to many countries such as the USA, Canada, Australia, Turkey, Vietnam, Brazil, Russia, South Africa, Malaysia, Oman, India, and so on. We are very active in attending different international stone exhibitions to get feedback from customers. Customers' feedback is the most important to us. It helps us to constantly improve in service and quality, which it is always our belief since the beginning of this company. We can't wait to sell our products to more countries and to meet more customers.

FAQ
Q: Are you a manufacturer? A: Yes, we are a professional and top stone machine manufacturer for more than 15 years in China. We have our own factory. Also, we have many authorized agents all over the world to take care of machines after selling service.Q: Can I get a machine according to my own requirements? A: Yes. If customers have special requirements for machines. We are happy to adjust or redesign our machines to meet the needs of customers. Q: This is the first time I use this kind of machine, is it easy to operate?A: All of our machines are easy to operate. Additionally, an English instruction manual will send to you with the machine. If there is still have any questions, we will provide a free professional online guide for you until you could use the machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send the machine to your country port or to the door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.Q: How is your after-sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealers to do machine installation and maintenance.
