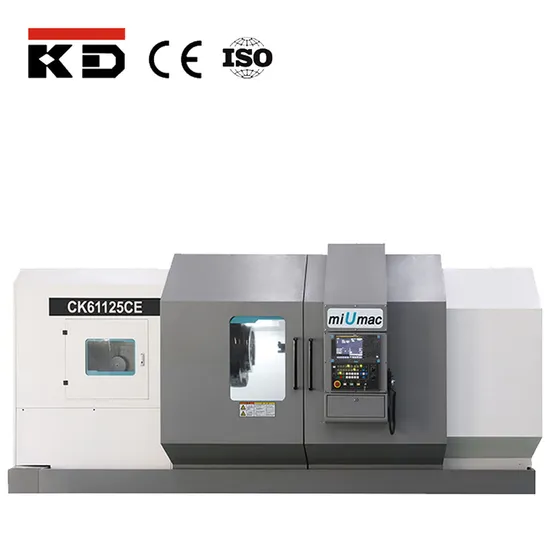

CE Approved Lathe Machine with Factory Price Flat Bed L
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK61125CE
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
130mm
Spindle Nose
A2-15
Main Motor
22kw
Max. Swing Over Bed
1250mm
Max. Turned Length
1.5m
Tool Post Stations
4-Stations
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
180 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | CK61100CE | CK61125CE | CK61140CE | |
| CAPACITY | | | | |
| Max. swing over bed | Ф1000 mm | Ф1250 mm | Ф1250mm | |
| Max. swing over carriage | Ф620 mm | Ф815 mm | Ф980 mm | |
| Width of bed | 755 mm | |||
| Max. length of workpiece | 1.5/ 2/ 3/ 4/ 5/ 6/ 8/ 10 m | |||
| Max. turning length | 1.3/ 1.8/ 2.8/ 3.8/ 4.8/ 5.8/ 7.8/ 9.8 m | |||
| Max. weight between centers | 5000 kg | |||
| SPINDLE | | | | |
| Spindle nose | A2-15 | |||
| Spindle bore | Ф130 mm | |||
| Spindle tapper | Metric Ф140 1:20 | |||
| Steps of spindle speed(manual) | 2 steps (manual) | |||
| Range of spindle speed | 2.5~270 rpm | |||
| FEED | | | | |
| Rapid feed for axis Z | 6 m/min | |||
| Rapid feed for axis X | 5 m/min | |||
| TRAVEL | | | | |
| Max travel of Z axis | 1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8m | |||
| Max travel of X axis | 580 mm | 685 mm | 685 mm | |
| TOOL POST | | | | |
| Tool post stations | 4 | |||
| Tool cross section | 40×40 mm | 40×40 mm | ||
| TAILSTOCK | | | | |
| Tailstock sleeve outer dia. | Ф160 mm | |||
| Tailstock sleeve taper bore | Metric Ф80 | |||
| Tailstock sleeve travel | 300 mm | |||
| OTHERS | | | | |
| Mi. Input | 0.001 mm | |||
| Main motor power | 26kW | |||
| Coolant pump power | 370 w | |||
| Chuck diameter | Ф1000mm (4-jaw chuck) | Ф1250mm (4-jaw chuck) | ||
