Versatile Various Rope Diameters Snatch Block

Product Description

Product Description

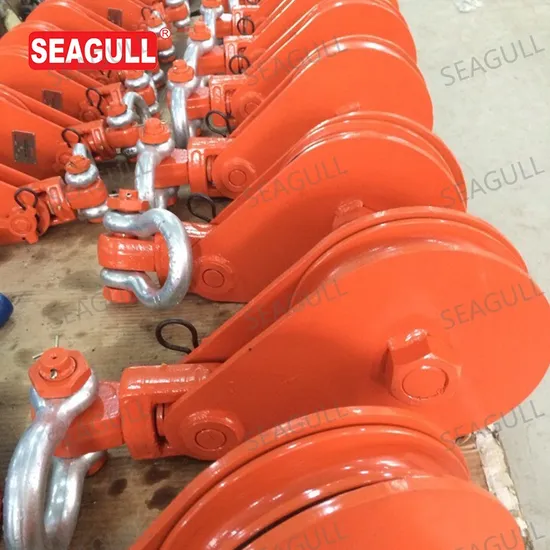

2T - 85T HEAVY DUTY SNATCH BLOCKS The SEAGULL Heavy-Duty Snatch Block uses a new heavy-duty steel structure to deliver superior strength that's up to 4 times stronger than standard snatch blocks.Detail
Easy assembly: Only the wheels, pulley body, a shaft, a cotter pin and pliers and other simple tools can be prepared for assembly.
Accurate size: the components are matched accurately, such as the small bump on the central shaft and the special groove on the wheel can be just embedded together to prevent the central shaft from turning around inside the wheel.
Easy connection: It is connected with the block body through the nut, easy to install and disassemble, easy to quickly change or adjust the hook position.
Good safety: Equipped with anti-tripping pawl (black parts), can prevent the rope from accidentally disconnecting during hoisting, reducing safety risks.
High safety guarantee: the hook is equipped with an insurance card, which can prevent the sling from slipping accidentally, and the operation is safe.
Stable structure: the whole parts are connected tightly, the material is strong, can withstand large tension, and is not easy to deformation and damage.

LH HEAVY DUTY SNATCH BLOCKS
TYPE HOOK		S.W.L (T)	SHEAVE DIA (mm)	A1 (mm)	B (mm)	C (mm)	FOR WIRE DIA (mm)	N.W. (kg)
LH3X1		2	75	292	82	70	7-9	3.9
LH4(1/2)X1		4	115	358	120	70	10-12	6.2
LH6"X1		4	150	412	160	70	16-18	8.4
LH6"X1		8	150	498	160	93	20-22	14.1
LH8"X1		8	200	549	210	93	20-22	19
LH8"X1		15	200	672	230	102	22-24	34
LH10^X1		10	250	695	260	115	24-26	36
LH10^X1		12	250	701	260	115	24-26	36
LH12X1		12	300	797	310	133	24-26	56
LH12X1		15	300	800	310	133	24-26	58
LH14X1		22	355	960	365	140	28-32	112
LH16X1		22	400	1027	415	140	28-32	122
LH16X1		30	400	1085	415	155	32-35	170
LH20'X1		30	500	1177	514	162	32-35	213
LH24X1		50	600	1445	625	240	46-50	408
LH30X1		85	760	1960	800	288	56-64	810

LS HEAVY DUTY SNATCH BLOCKS
TYPE SHACKLE	S.W.L (t)	SHEAVE DIA (mm)	A2 (mm)	B (mm)	C (mm)	FOR WIRE DIA (mm)	N.W. (kg)
LS3*X1	2	75	286	82	70	7-9	3.8
LS4(1/2)"X1	4	115	345	120	70	10-12	6.2
LS6X1	4	150	399	160	70	16-18	8.3
LS6*X1	8	150	475	160	93	20-22	14.1
LS8"X1	8	200	528	210	93	20-22	18.7
LS8*X1	15	200	663	210	102	22-24	33
LS10"X1	10	250	679	260	115	24-26	34.7
LS10X1	12	250	679	260	115	24-26	34.7
LS12X1	12	300	767	310	133	24-26	54
LS12X1	15	300	788	310	133	24-26	55
LS14X1	22	355	952	365	140	28-32	109
LS16*X1	22	400	1019	415	140	28-32	118
LS16'X1	30	400	1126	415	155	32-35	164
LS20*X1	30	500	1256	514	162	32-35	208
LS24*X1	50	600	1525	625	240	46-50	418
LS30X1	85	760	1910	800	288	56-64	840

Main Product
Company Profile
Established in 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. is a leading manu-facturer of lifting tools and equipments, including hand chain hoists, lever hoists, electric hoists, lifting clamps and more. With ISO9001:2015certification and TUV CE/GS approvals, we ensure top-quality products for global markets like the USA, Germany, Japan, and others. As a trusted OEM partner for international brands, we export 95% of our products worldwide. Our advanced testing facilities and strict quality control guarantee reliable performance. Over 50% of our clients have collaborated with us for more than 10 years, thanks to our consistent quality and excellent service.
SEAGULL is your reliable partner for innovative lifting solutions.
