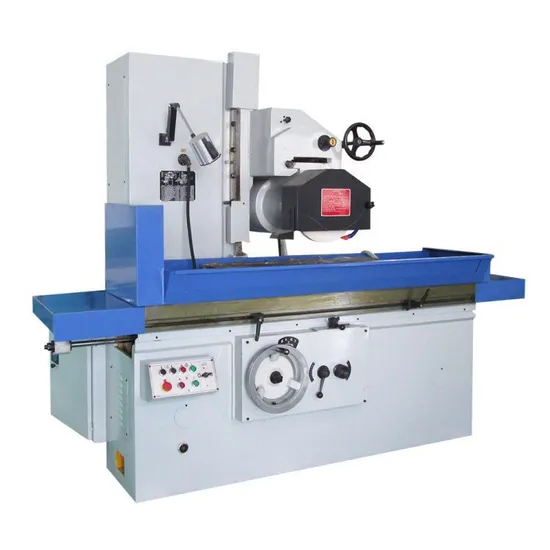

Surface Grinding Machine with Horizontal Spindle and Rectangular Table
Basic Info.
Model NO.
M7132
Type
Surface Grinding Machine
Processing Object
Cam
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
800X400
Trademark
Allway
Origin
China
HS Code
84601910
Production Capacity
1000PCS/Year
Product Description
| Model | M7132*1000 | M7132*1600 | M7132*2000 | ||||
| Working table | Table size(L×W) | mm | 1000×320 | 1600×320 | 2000×320 | ||
| Max movement of working table(L× W) | mm | 1100 | 1700 | 2100 | |||
| T-Slot(number×width) | 3×18 | 3×18 | 3×18 | ||||
| Speed of working table | m/min | 3--25 | 3--25 | 3--25 | |||
| Grinding head | Max distance from spindle center to table surface | mm | 570 | 570 | 570 | ||
| Max travel of grinding head | Cross(Manual and hydraulic) | mm | 350 | 350 | 350 | ||
| Vertical(Manual) | mm | 400 | 400 | 400 | |||
| Spindle speed | rpm | 1440 | 1440 | 1440 | |||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ350×40×φ127 | φ350×40×φ127 | φ350×40×φ127 | |||
| Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | |||
| Grinding head feed per revolution of handwheel | mm | 1.00 | 1.00 | 1.00 | |||
| Total power | kw | 11 | 12 | 12 | |||
| Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.37 | ||
| Speed | r/min | 1440 | 1440 | 1440 | |||
| Oil pump motor | Power | kw | 3 | 4 | 4 | ||
| Speed | r/min | 960 | 960 | 960 | |||
| Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | ||
| Speed | r/min | 2800 | 2800 | 2800 | |||
| Oil pump | Flow | L/min | 100 | 125 | 125 | ||
| Working pressure | MPa | 1.5 | 1.5 | 1.5 | |||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | ||
| Surface roughness | µm | Ra0.63 | Ra0.63 | Ra0.63 | |||
| Weight | N/G | kg | 3500/4000 | 4300/4900 | 4830/5300 | ||
| Overall dimension(L×W×H) | mm | 2630×1700×2100 | 4150×1700×2300 | 5000×2000×2350 | |||
| Cabinet Size : 2760×1750×2260MM Net Weight: 3500KG Gross Weight: 4000KG I. Main machine | ||||||
| Item no | Name | Specification or remark | Unit | Quantity | Remark | |
| 1 | Main machine | M7132 (320×1000) | Set | 1 | ||
| II. Attachment spare component | ||||||
| Item no | Name | Specification or remark | Unit | Quantity | Remark | |
| 1 | Coolant Mechanism | Flow: 22L/min JCB-22 | Set. | 1 | ||
| 2 | Electric Magnetic Chuck | 300×1000 | Pec. | 1 | ||
| 3 | Wheel Adopter and Wheel | 127ø GB46-ZR2-1- P350×40×127 | Set. | 1 | Fix on machine | |
| 4 | Iron Gasket | HJ×81-1 | Set. | 5 | ||
| 5 | Balance Shaft and Nuts | Ø32×270,M36×1.5 | Set. | 1 | Installed in the attachment | |
| 6 | Balance blocks and screws | M6×12 | Set. | 5 | ||
| 7 | Diamond Seating(No Diamond ) | Set. | 1 | |||
| 8 | Scratch Scrap Iron | Set | 1 | |||
| 9 | Hexagonal Socket Wrench | 46 | Set | 1 | ||
| 10 | Round Nut Spanner | 78-85 | Set. | 1 | ||
| 11 | Round Nut Spanner | 135-145 | Set. | 1 | ||
| 12 | Sleeve Nut and Handle | M80×2 Ø22×280 | Set. | 1 | ||
| 13 | Single-head Wrench | 19 | Set. | 1 | ||
| 14 | Foundation Bolt,Screw and Gasket | M20×400,M20,20 | Pair | 2 | ||
| III. technical document | ||||||
| Item no | Name | Specification or remark | Unit | Quantity | Remark | |
| 1 | Operation manual | Set | 1 | |||
| 2 | Electrical Specification | Set | 1 | |||
| 3 | Inspection Certificate | Set | 1 | |||
| 4 | Electrical Altas | Set | 1 | |||
| 5 | Packing list | Set | 1 | |||
