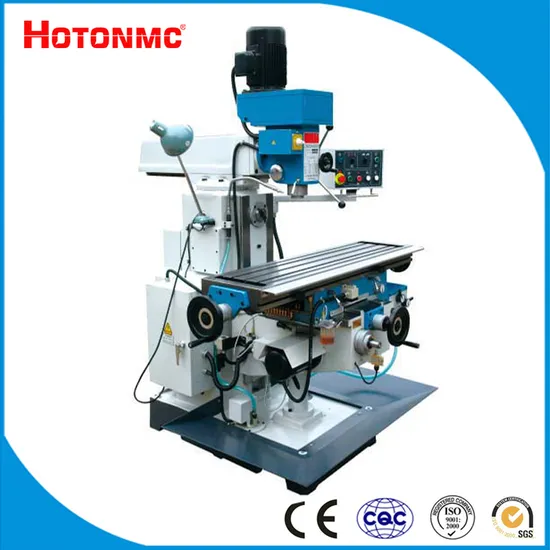

ZX6350A ZX6350ZA Universal auto feeding horizontal vertical drilling milling machine
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350A ZX6350ZA
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
long travel
800mm
Taper
MT4
Vertical Travel
300mm
Cross Travel
300mm
Table Size
1250X320mm
Transport Package
Plywood Case
Specification
2150KGS
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
20 PCS/Month
Product Description
DRILLING MILLING MACHINE:
Z-automatic feed milling head
2. Rectangular guideway on lifting platform
3. High stability
4. Hardened on X, Y, Zaxes.
5. Vertical head swivels +- 45 degree.
6. X--axis travel can be with 800mm (Optional)
SPECIFICATIONS:
| MODEL | UNIT | ZX6350ZA |
| Spindle taper | MT4/ISO40 | |
| Distance vertical spindle to table | mm | 100-400 |
| Distance horizontal spindle to table | mm | 0~300 |
| Distance spindle to column | mm | 200~550 |
| Spindle seeds range | r/min | (8 steps)60-1500(vertical) (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1250×320 |
| Table travel | mm | 800/300/300 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 22-555(8 steps)(max.810) |
| T of table (no./width/distance) | mm | 3/14/70 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 750 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1450/1600 |
| Overall dimension | mm | 1700×1480×2150 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches | DRO on X, Y, Z--AXIS. Universal dividing head. Rotary worktable. Clamping kit. |
