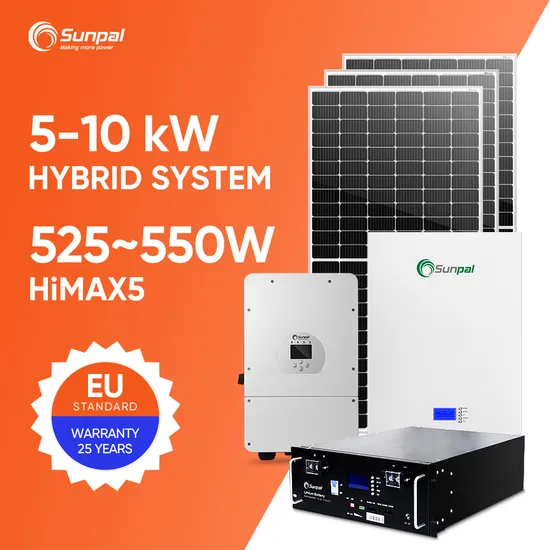

Sunpal Full Solar Power System Price 5kw 8kw 10kw Hybrid Solar Energy Storage System Kit for Home
Basic Info.
Model NO.
SP10KW3-HY
Condition
New
Certification
ISO, CE
Application
Home
Specification
Normal, Solar Panels, Solar Inverter, Solar Battery
Product Name
Household Hybrid Solar Power System
Controller Type
MPPT
System Type
off-Grid Hybrid Solar Photovoltaic System
Solar Panel
Mono Crystalline Perc Solar Panel
Inverter
Single Phase/Split Phase/3phase
Battery
Lead Acid/LiFePO4 Lithium Battery
Mounting Structure
Customzied
Usage
Home Solar Energy Generation
Packing
Wooden Box
Technical Support
Complete Technical Support
Packing Size
200*130*50cm
Packing Weight
850kg
Type
Hybrid/on-Grid/off Grid Solar System
Power
5-10kw
Features
for Home Use
Transport Package
Wooden Box Package by Sea
Trademark
Sunpal
Origin
China
HS Code
8501320000
Production Capacity
10000 Piece/Pieces Per Day
Packaging & Delivery
Package Size
200.00cm * 130.00cm * 50.00cm
Package Gross Weight
850.000kg
Product Description
Product Description| System MODEL | SP5KW-HY | SP8KW-HY | SP10KW3-HY | SP12KW3-HY |
| PV System Size Nominal (kWp) | 5.5 | 8.8 | 11 | 13.2 |
| PV MODULE SPECIFICATIONS (*half cell mono) | ||||
| Power (W) | 550 | |||
| Vmp (V) | 41.96 | |||
| Dimensions (L x W x H) (mm) | 2279*1134x35 | |||
| Certifications | CE / TUV (IEC 61215 & IEC 61730) / UL (UL1703) | |||
| INVERTER SPECIFICATIONS | ||||
| Inverter Size (kW) | 5 | 8 | 10 | 12 |
| Max DC Power (W) | 6500 | 10400 | 13000 | 15600 |
| Max DC Voltage (V) | 500 | 1000 | ||
| MPPT Voltage Range(V) | 150-425 | 125-425 | 200-650 | 200-650 |
| Output Voltage | 220,230Vac | 220/380,230/400Vac | ||
| UPS (Off Grid Model with Battery) | ||||
| Rated Power (VA) | 5000 | 8000 | 10000 | 12000 |
| Max DC Charge/Discharge Current(A) | 120 | 190 | 210 | 240 |
| Max Power(W)for 10 Seconds | 7500 | 12000 | 15000 | 18000 |
| BATTERY BANK SPECIFICATIONS | ||||
| Battery Type | Li-Ion(LifePO4) | |||
| Total Batteries | 1 | 2 | 3 | 4 |
| Battery Bank Power(kWh) | 4.8 | 9.6 | 14.4 | 19.2 |
| Battery Voltage (V) | 48 | |||
| Battery Current(Ah) | 100 | |||
| Number of PV Modules | 10 | 16 | 20 | 24 |
Company Profile
Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation for quality. With over 10 years of development, Sunpal now has a factory area covering 150,000 square meters, with 600 experienced employees.
