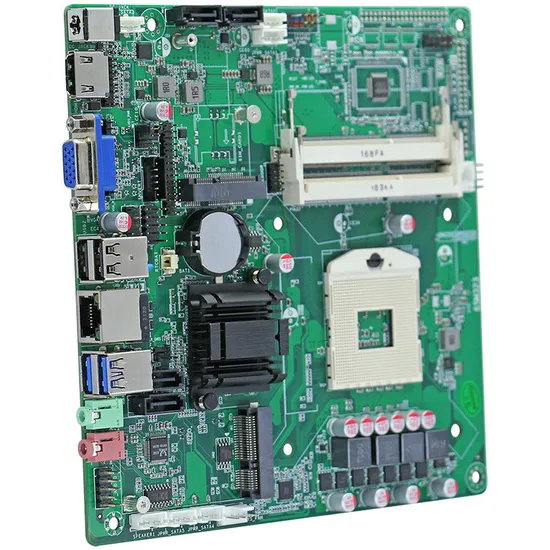

Itx Intel Hm76/77 Industrial Mother Board for Smart Board Touch Screen
Basic Info.
Model NO.
Z-76D12-AL
Operating Temperature
-40℃ to 85℃
Power Supply Type
ATX12V
Storage Interface
SATA 3
Supported Memory Type
DDR4
System Expansion Slot
PCIe x16
Integrated Graphics
Integrated Graphics
Main Chipset
Intel
Maximum Memory Capacity
64G
Structure
Mini-Itx
Memory
DDR3
SATA Interface
SATA3.0
Printed Circuit Board
Six Layer
Main Board Structure
Integrated
Audio Effects
Not HiFi
CPU
Shrink Bag Intel&Reg Sandy Bridge IVY Bridge
Chipset
Intel Hm76/77 Chip
RAM
1*DDR3-1066/1333/1600 SODIMM Memory Max 8GB
Storage
1*SATA, 1* Msata Sdd/HDD
Audio
Cmedia HS-100b HD Audio
LAN
1*Realtek Rtl8111h Network Card Chip
Display
CPU Integrated Graphics Card
Double Display
VGA/HDMI/Edp1/Edp2, Support Any Asynchr
COM
2*COM Shrink Bag RS232
USB
4USB 3.0 6 USB 2.0
Front I / O
DC in(12V), HDMI, VGA, 2*USB3.0, Rj-45
on Board I / O
1*Edp1 Pins 1*Invert Pin 1*Edp2 Pins 1*VGA Pins
Special Features
Support Guard Dog, No Disk Startup, Network Wake-U
Power Supply Mode
DC12V
Working Humidity
0~50ºC
Transport Package
Box
Specification
282*257*79mm
Trademark
zoomtak
Origin
China
HS Code
8471504090
Production Capacity
99999999999999/Year
Product Description
We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:>Logo(Packing , Computer Logo)
>Computer Colors
>Security
>Interfaces Customization
>Virtualisation
>Data Protection
We also have 8th 10th 11th 12th OPS Module and Thin Client, Thick Client, Digital Signage Player,Android Box, 4G/5G Cloud Mini Computer and so on. If you have inquiry of different Mini PC, freely to contact us.
Product Description
| Specification | |||||||
| CPU | Shrink bag Intel® SandyBridge,IvyBridge M Series PGA988:i3,i5,i7 Processor | ||||||
| Chipset | Intel® HM76/77 Chip | ||||||
| RAM | 1*DDR3-1066/1333/1600 SODIMM memory MAX 8GB | ||||||
| Storage | 1*SATA, 1* mSATA SDD/HDD | ||||||
| audio | Cmedia HS-100B HD audio | ||||||
| LAN | 1*Realtek RTL8111H Network card chip,PCI-E Bus Gigabit Network Card | ||||||
| 1*MINI PCI-E Interface,Support for wireless networks: WIFI/BT/4G Module | |||||||
| Display | CPU Integrated graphics card | ||||||
| Double display | VGA/HDMI/EDP1/EDP2,Support any synchronous/asynchronous dual display | ||||||
| COM | 2*COM Shrink bag RS232(9pin Adjustable 5V/12V Voltage),COM2 Support RS485 Function | ||||||
| USB | 4*USB 3.0,6* USB 2.0 (On board Pins) | ||||||
| Front I / O | DC IN(12V), HDMI, VGA, 2*USB3.0, RJ-45, 2*USB3.0, Mic-in, Line-out Interface | ||||||
| On board I / O | 1*EDP1 Pins,1*Invert Pins,1*EDP2 Pins,1*VGA Pins,1*HDMI Pins, | ||||||
| 2*COM P2.54mmPins,1*LPT Pins,3 group*USB2.0 Pins(6*USB2.0), | |||||||
| 1*SIM Card slot, | |||||||
| 1*Pre-audio Pins,1*Power amplifier Pins,1*Buzzer, | |||||||
| 1*4-pin Power interface,2 *Fan socket,1*SATA socket,1*SATA Power supply Pins | |||||||
| Special Features | Support Guard dog, No disk startup, Network wake-up, power on, timing boot | ||||||
| Mechanical & Environmental | |||||||
| Power supply mode | DC12 | Heat dissipation mode | Fan cooling | Size(L*W) | 170mm*170mm | ||
| Working humidity | 0~50ºC | Storage temperature | -40~75ºC | Ambient humidity | 0~90% Air humidity, no condensation | ||
| Packing list | Motherboard | *1 | SATA Data line | Matching | |||
| I/O Baffle | Matching | Hard drive power cord | Matching | ||||
| Application Fields, digital sign, self-service terminal, interactive electronic whiteboard, industrial computer, industrial tablet computer, medical, cloud terminal, etc. | |||||||
FAQ Q1: Are you the manufacturer of the product?
A: Yes, of course we are. We have own property rights factory.
Q2: Can you provide OEM or ODM services?
A: Yes, we are willing to provide our customers with OEM and ODM services.
Q3. Can you print my logo on the product?
A: Yes, we support.
Q4. What is the warranty?
A: 3 years warranty.
Q5: If the product is out of warranty, what should I do?
A: We will repair it for free.
Q6: Where can I place an order?
A: You can contact us directly via email. If you have any other questions, please feel free to contact us.
