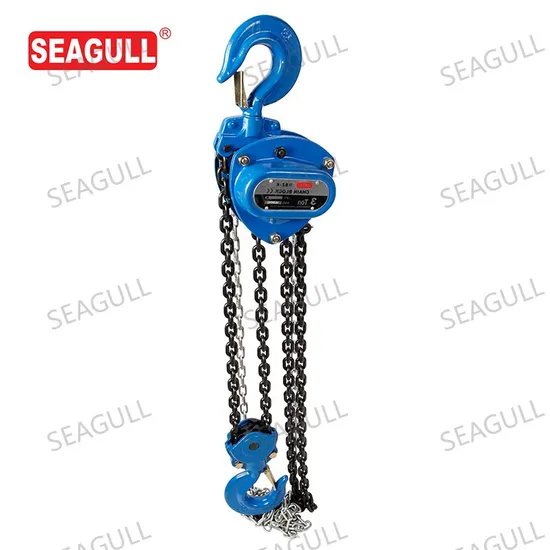

Long Reach Capability Special Lifting Tasks Hand Chain Hoist

Long Reach Capability Special Lifting Tasks Hand Chain Hoist

US$150.00 10 Pieces (MOQ)

Basic Info.

Model NO.
HSZ-K
Lift Speed
2~8m/min
Maximum Lifting Height
>20m
Certification
CE
Condition
New
Color
Blue
Capacity
0.25t-50t
Lifting Hook
Forge
Material
Light Steel
System
Automatic Double Braking System
Transport Package
Details: Packed in Carton Firstly,and Then Reinfor
Specification
0.25T-50T
Trademark
SEAGULL
Origin
China
Production Capacity
150000 PCS Per Year

Product Description


Product Description
0.25T to 50T Hand hoist Chain block is widely used in factories,miners,docks,warehouses,construction sites,agriculture and other fields, to lift goods and lifting equipment, in particular in conditions with no power supply or narrow , demonstrate superiority.
Detail
High strength chain: mostly alloy steel material, after special treatment, strong bearing capacity, can withstand greater tension, not easy to break, to ensure safe and reliable lifting operation.
Good wear resistance: the chain has high surface hardness and excellent wear resistance, which can reduce wear during long-term use, extend service life, and reduce replacement frequency and cost.

Strong adaptability: reasonable shape and size design, can adapt to a variety of specifications of the sling, a wide range of applications.
Flexible rotation: the connecting part of the hook and the main body of the hoist can be rotated flexibly, which is convenient for lifting operation at different angles and improves the convenience of use.

Wide applicability: There are a variety of specifications, can meet different weight requirements, widely used in factories, mines, warehouses and other places.
Easy operation: relying on manpower to pull the chain drive, no need for other power sources such as electricity, simple operation method, easy to master.
Model HSZ-0.5K HSZ-1K HSZ-1.5K HSZ-2K HSZ-3K HSZ-5K HSZ-10K HSZ-20K HSZ-30K
Rated load (T) 0.5 1 1.5 2 3 5 10 20 30
Standard Iit (m) 2.5 2.5 2.5 2.5 3 3 3 3 3
Test load (T) 0.75 1.5 2.25 3 4.5 7.5 12.5 25 37.5
Efforts required at capacily (N) 262 324 395 330 402 430 438 438 442
Diameter of load chain (mm) 5 6 7.1 6 7.1 10 10 10 10
No.of load chains 1 1 1 2 2 2 4 8 12
Dimenslons(mm) A B
C
D
120
116
285
28
147
136
332
32
181
147
410
38
158
136
470
40
202
148
550
44
228
178
640
50
373
178
737
64
638
195
1022
82
703
397
1050
82
Net weight (kg) 7 10 15 23 23 38 68 160 235
Extra weight per meter of extra lit(kg) 1.5 1.8 2 3.2 3.2 5.3 9.8 19.6 28.3

Main Product
Company Profile
Established in 1986, Changshu Seagull Crane&Hoist Machinery Co., Ltd. is a leading manu-facturer of lifting tools and equipments, including hand chain hoists, lever hoists, electric hoists, lifting clamps and more. With ISO9001:2015certification and TUV CE/GS approvals, we ensure top-quality products for global markets like the USA, Germany, Japan, and others. As a trusted OEM partner for international brands, we export 95% of our products worldwide. Our advanced testing facilities and strict quality control guarantee reliable performance. Over 50% of our clients have collaborated with us for more than 10 years, thanks to our consistent quality and excellent service.
SEAGULL is your reliable partner for innovative lifting solutions.
Our Advantages
Certificate&Exhibition
Packaging & Shipping
FAQ
About US
Q1 Manufacturer or Trading Company?
We are Manufacturer and trading company, based in ChangshuCity,Jiangsu Province. Focus: high-quality, safe lifting solutions.
Q2 Certifications?
ISO9001, CE, GS, ASME compliant. Certificates available upon request.
Q3 OEM/ODM?
Yes. Custom colors, logos, manuals,packaging.
Q4 Advantages?
Quality products, wide range, customization, competitive pricing, excellent after-sales service.
Products
Q1 Main Products?
Manual Chain Hoists, Electric Hoists, Electric Trolleys, Beam Trolleys, Beam Clamps, Lifting Clamps, Snatch Blocks, Permanent Magnet Lifters, Mechanical Jacks, Manual Winches, Webbing Slings, etc.
Q2 Manual Chain Hoist Capacity?
0.25 tons - 50 tons. Custom options available.
Q3 Chain Material?
High-strength alloy steel, heat-treated, EN818-7 compliant.
Q4 Electric Hoist Voltage/Control?
220V/380V/415V/440V,50Hz/60Hz. Hand & remote control options.
Q5 Choosing the Right Tool?
Consider load, height, environment, frequency, safety. Contact sales for assistance.
Q6 Product Catalog?
Request via contact form.
Orders&Payment
Q1 MOQ?
Varies. Different products with different MOQ. Please contact us for details.
Q2 Payment Methods?
T/T or L/C in USD/RMB/EUR.
Q3 Delivery Time?
30-60 days, but negotiable for urgent order.
Q4 Trade Terms?
FOB, CIF, CFR, negotiable
After-Sales Service
Q1 Warranty?
1 or 2 years warranty depends on different products, against defects (non-human caused).
Q2 After-Sales Support?
Contact sales representative, email
Q3 Technical Support?
Installation, debugging, maintenance assistance available.
Other
Q1 Samples?
Available on request. Fees may apply.
Q2 Become an Agent?
Contact sales team for details.
