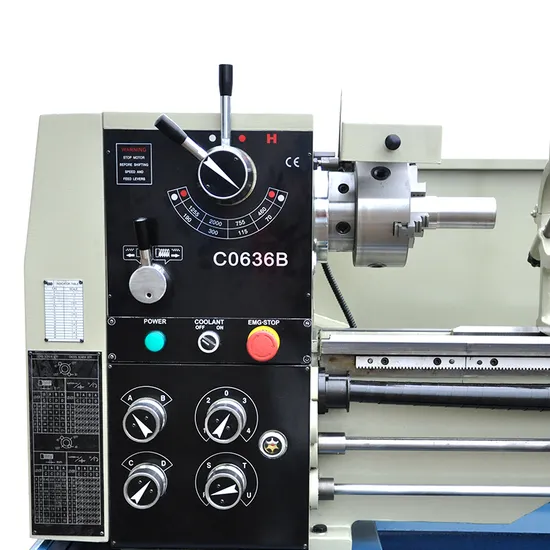

New Hard Way Single Phase Factory 1340 Turning Cheap Lathe

New Hard Way Single Phase Factory 1340 Turning Cheap Lathe

US$3,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.
C0636B/1000
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
1990X760X1435
Specification
1990x710x1170mm
Trademark
kaida
Origin
Zhejiang
Production Capacity
1200/Year

Product Description

New Hard Way single phase factory 1340 Turning Cheap Lathe Product Description
Product Specifications

MODELS
C0632B
C0636B
CAPACITY
Max. swing over bed
330mm
360mm
Max. swing over gap
476mm
508mm
Max. swing over slide
185mm
215mm
Width of bed
186mm
Max. length of workpiece (two centers)
750/1000mm
SPINDLE
Spindle nose
D4
Spindle bore
ะค38mm
Taper bore of spindle
M.T.NO.5
Steps of spindle speed
8
Range of spindle speed
70~2000rpm
FEED
Range of longitudinal feeds
0.0013-0.0173in/r (0.026~0.348mm/r)
Range of cross feeds
0.0005-0.00598in/r (0.007~0.094mm/r)
THREADING
Inch threads
40~2 1/4 T.P.I/20 kinds
Metric threads
0.45-10mm/ 28kinds
TAILSTOCK
Travel of tailstock quill
95mm
Taper bore of tailstock quill
M.T.NO.3
OTHERS
Main motor
2HP(1.5KW)
Net weight/Gross weight(1000mm)
495/595kg
510/610kg
