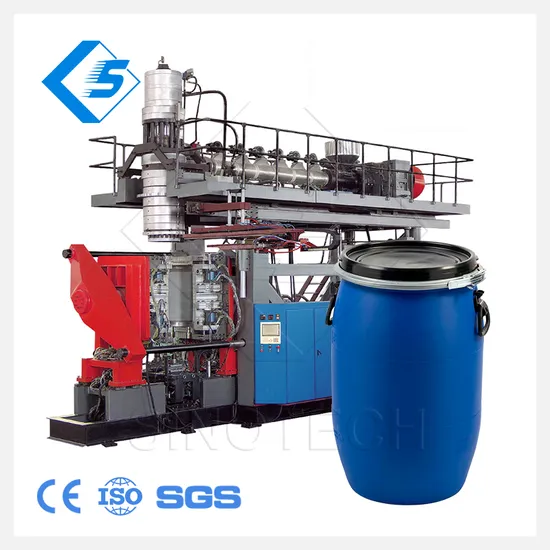

Factory Price 200L Jerry Can/ Chemical Drum Extrusion Machines Plastic Bottle Blow Molding Machine with PE

Factory Price 200L Jerry Can/ Chemical Drum Extrusion Machines Plastic Bottle Blow Molding Machine with PE

US$158,800.00
1 Piece
US$128,800.00
2 Pieces
US$99,800.00
3+ Pieces

Basic Info.

Model NO.
STB-120
Raw Material
PE PP HDPE Hmwhdpe
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Commissioning and Trainingengineer Available
Voltage
Customization
Logo
Customization
Outer Packing
Customization
Pattern
Customization
Core Components
PLC, Engine, Bearing, Gearbox, Gear
Material Application
PE, PP, PVC, ABS
Application
Bottle, Jerry Can, Jar, Gallon
Screw Diameter
120 mm
Number of Heating Zone
6 Zone
Maximum Container Capacity
250 L
Clamping Force
1000kn
Mold Platen Size (W×h)
1100*1600 mm
Mold Thickness
610 - 750 mm
Melting Capacity for HDPE
250 Kg/Hr
Water Consumption
120 L/Min
Transport Package
Wooden Case or Film Wrapping
Specification
7.8*2.9*5.4m
Trademark
SINOTECH
Origin
China
HS Code
8477401000
Production Capacity
20-25PCS/Hr

Product Description

Factory Price 200L Drum Extrusion Machines Plastic Bottle Blow Molding Machine with PE
Product Description
Product description
Good Price PE PP PDPE 200L Chemical Drum Accumulator Blow Molding Machine
This machine is suitable for making 200L Chemical Drums. The output for 9KG 200L HDPE drum is 20-25pcs/hour. This Model STB-120 is popular in chemical liquid packing field, due to its clear product positioning, strong and reliable product strength, high quality/price rate, stable performance, easy operation and maintenance. This extrusion blow machine maximum maximum container capacity is 250L, specially used for plastic drums, barrels and containers of packing chemical liquid, edible oil, anti-freeze liquid, addictive agent and other industrial liquid. STB-120 adopts machine total control system, 100 point parison thickness controller and energy saving servo motor system for easy operation and economical production.
We are the professional ONE-STOP supplier in extrusion blow molding field, supporting you from new project consultation stage to after sales service. We are your professional blow-molding working team and partner. We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
Product Parameters

SIZE AND WEIGHT
1 Size 9×4.1×6 (m)
2 Weight 30T
CLAMPING UNIT
1 Clamping force 1000KN
2 Mold platen size (W×H) 1100×1600 mm
3 Platen opening stroke 700-1650 mm
4 Platen moving stroke 1000 mm
5 Mold thickness 610 - 750 mm
EXTRUSION SYSTEM
1 Screw diameter Φ 120 mm
2 Screw L/D ratio 30:1
3 Melting capacity for HDPE 250 kg/hr
4 Number of heating zone 6 zone
5 Screw heating power 30.2 KW
6 Heating mode Cast Aluminium heater
7 Screw fan power 0.6 KW
8 Extruder motor power 75 KW
DIE HEAD
1 Number of heating zone 6 zone
2 Heating power 38 KW
3 Heating mode Cast Aluminium heater
4 Max die-pin diameter 600 mm
5 Accumulator capacity 20 L
6 Accumulator weight (HDPE) 15 KG
7 Maximum container capacity 250 L

POWER
1 Servo Oil pump driving power 35 KW
2 Extruder motor power 75 KW
3 Blow pressure 1 Mpa
4 Air consumption 2 m³/min
5 Cooling water pressure 0.5 Mpa
6 Water consumption 120 L/min
7 Average energy consumption 80 KW
HYDRAULIC PARTS BRAND
1 Servo oil pump Sumitomo (Japan)
2 Valve Yuken (Japan)
3 Oil tube Liebao (China)
4 Sealing element DZ (Taiwan)
ELECTRIC PARTS BRAND
1 PLC Mitsubishi (Japan)
2 Touch screen Weinview (Taiwan)
3 Temperature control Mitsubishi (Japan)
4 Intermediate relay OMRON (Japan)
5 Contactor LG (Korea)
6 Air switch LG (Korea)
7 Inverter Mitsubishi (Japan)
8 AC motor Siemens (Germany)
9 Gearbox Kewei/Guomao (China)
10 Air valve Airtac (Taiwan)
11 Power supply Mean Well (Taiwan)
12 Servo system Inovance (China)
13 Parison control system MOOG (Japan)
14 Servo valve MOOG (Japan)
15 Transducer Gefran (Italy)

Detailed Photos
Total Machine Control System
1.The control system is simple but humanized pages easy for operation.
2.100 point parison thickness controller & profile eddition.
3. Production technics and parameter saving for 20 moulds.
4. Professional engineer setting pages for problem diagnosis.
5.Short-cut key board & emergency stop for safety production.
6. Aluminum cantilever operation box and easy adjustment.
7. Remote technical support & program updating.
Die head system
1. Accumulator die head.
2. Temperature control: automatic temperature control module.
3. The max die pin of extrusion is 600mm.
Mould Platen
1. Latest Euro style toggle type clamping system.
2. Bigger platen size capable to carriage more bigger moulds.
3. Stronger clamping force can make the blow molding item bottle joint line finishing smoother.
Automatic Labor Arm
1. It is a necessary parts for blow molding machine to ensure the workers operation safe.
2. Labor saving, easy operation, high production efficiency.
Drum Mould
1. Reasonable cold water runner design for heat transmission.
2. Cutting blade length& flatness for scraps easy removing.
3. Parison over-flow groove depth equal to product weight.
4. Suitable water inlet& outlet position for easy production.
5. precise cold shrinkage calculation to insure filling volume.
6. Multi-functional selection for mould action requirements.
Blowing System
1. Bowing stand adapt to YUKEN, direction valve, using hydraylic drive.
2. Blow rod can optional equipped quick exhaust function.
3.Match non-contact induction switch, ensure accuracy of positioning.
4. Optional air rotating rod, in order to machining tntenal thread.
5. Optional equipped with widen guide rod(wait water cooling), widen the parison.
Extrusion System
1. Screw designed specially based on working quality of material. Diameter of screw: φ120mm, L/D30/1
2. Material of screw: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥800, brittleness≤2.
3. Material of barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV ≥ 900, brittleness ≤2.
4. Drive mode:AC motor + Hard gear surface decelerator.

Air Cooling Fan
1. Air cooling fan guaranteed constant temperature for screw.
Gear Box
1. Frequency conversion speed regulation& Alloy steel hardened gear box.
2. Table speed regulation, energy saving, low noise, durable.
Hydraulic system
1. The main hydraulic system adopts to Japan YUKEN and SUMITOMO hydraulic valves and servo pump, precise pressure of proportion, flow control, quick actions, longer working life.
2. Hydraulic motor available to upgrade to servo drive energy saving, low noise& increase working life of hydraulic units.

Electric control system
1. Japan Mitsubishi PLC system, with Mitsubishi temperature control module.
2. Weinview Touch Screen to easily set and change communication, parameter, image display with
self-diagnose.
3. Japan Mitsubishi inverter provide stable and efficient extruding process.
4. Other main electrical components are from wolrd-famous brands such as OMRON, LG and etc.

Workshop Production

Packaging & Shipping

Company Profile
Certifications

FAQ
FAQ:
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
