High-Quality GSK Fanuc CNC Flat Bed Ck6140 Metal Turning Center Machine Lathe

High-Quality GSK Fanuc CNC Flat Bed Ck6140 Metal Turning Center Machine Lathe

US$7,800.00
1-2 SET
US$7,600.00
3-4 SET
US$7,400.00
5-9 SET
US$7,200.00
10-19 SET
US$6,900.00
20+ SET

Basic Info.

Model NO.
CK6140
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Swing Over Cross Slide
400mm
Max. Turning Diameter on Skateboard
200mm
Maximum Cutting Diameter
400mm
Main Shaft Hole Diameter
52mm
Range of Spindle Speed
50-2200 R/Min
Main Motor Power
5.5kw
Chuck Diameter
200mm
The Tailstock Diameter
60mm
The Tailstock Travel
100mm
Standard Tool Rest Form
Electric 4-Position Tool
Tool Size
20*20mm
Machine Weight
2000kgs
System
GSK Fanuc etc.
Machining Accuracy
It6-It7
X Axis Stroke
220mm
Transport Package
Metal Base with Plywood Case
Trademark
ROWDAI
Origin
China
HS Code
8458110090
Production Capacity
1000

Packaging & Delivery

Package Size
250.00cm * 150.00cm * 170.00cm
Package Gross Weight
2000.000kg

Product Description

Product Description

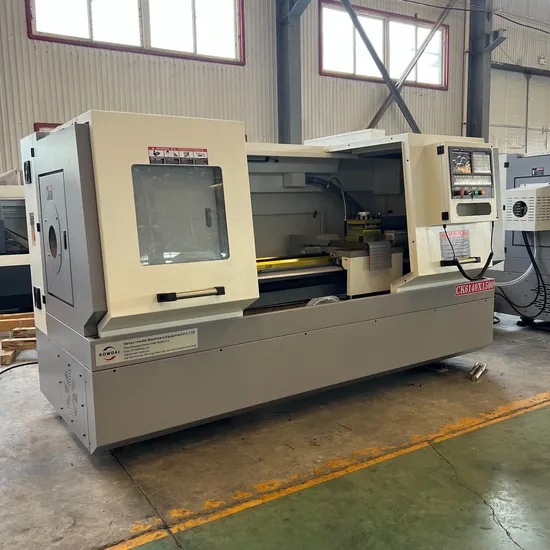

CK6140 CNC Flat Bed Metal Turning Center
This machine is mainly used to process various shaft and disc parts. It can turn various threads, arcs, cones, and internal and external surfaces of rotating bodies and meet the speed requirements of high-speed chip cutting of ferrous and non-ferrous metals.
It is suitable for efficient, large-scale, and high-precision processing of rotating parts in the automotive, motorcycle, electronics, aerospace, and other industries. The processing accuracy can reach level 7.

Product Parameters
Menu Unit Specification
Swing Over Cross Slide mm 400
Max. turning diameter on skateboard mm 200
Max truning length mm 750 / 1000 / 1500 / 2000
Maximum cutting diameter mm 400
Type and code of spindle end A2-6
Main shaft hole diameter mm 52
range of spindle speed r/min 50-2200
Main motor power kW 5.5
Chuck diameter Mm 200mm manual type
X axis speed m/min 4
Z axis speed m/min 6
X axis stroke mm 220
Z axis stroke mm 1500
The tailstock diameter mm 60
The tailstock travel mm 100
Taper of spindle taper hole of tailstock MT4
Standard tool rest form Electric four-position tool
Tool rest transposition and repeated positioning accuracy -- ±3.2″
Knife party size mm 20*20
Cooling Motor w 90
Machine weight kg 1800
Machine size mm 2450*1380*1640

Machine Precision
Items workshop standard
Machining accuracy IT6-IT7
Roundness of machining workpiece 0.005mm
Cylindricity of machined workpiece 0.01/300mm
Flatness of machining workpiece 0.025/300mm
Surface roughness of machined workpiece Ra0.2~1.6μm
positionaI accuracy X axis spindle 0.015
Z axis spindle 0.015
Repositioning resolution precision X axis spindle 0.01
Z axis spindle 0.01

Detailed Photos
Application

Flat bed CNC lathes are equipped with multi-station turrets or power turrets and have a wide range of processing capabilities. They can process straight cylinders, oblique cylinders, arcs, various threads, grooves, worms, and other complex workpieces, and they can also groove, drill, ream, bore, and bore various rotary surfaces. This versatility makes them perform well in the mass production of complex parts.
Packaging & Shipping
The lathe machine will be packed with a metal base and plywood case, suitable for international transportation, such as by sea, air, etc.
Delivery time:7-15 days, fast to deliver, sometimes also have stock at hand!
Company Profile
With more than 20 years of experience in exporting machines
After service is very finished fully
Best price for customers from all over the world
Technical engineers are very professional
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure
you can use the machine better.
