Automatic Broiler Machine for Farming Poultry

Product Description

Automatic Broiler Machine for Farming Poultry
Brand: U-Best
Company Profile
Weifang U-Best Husbandry Equipment Co.,Ltd:
We are professional leading manufacturer and supplier of automatic broiler machine for farming poultry in China!

Our equipment has passed ISO9001:2008 Quality Management System Certification ,CE and PC Certification By SGS/Soncap/SASO!

We have our own production line so we can control the quality very well! Our poultry equipment has been exported to more than 40 countries and have good market reputation!

We have many different project of chicken farm in Sudan, Saudi Arabia, Algeria, Nigeria, Zimbabwe, Mozambique, South Africa, Tanzania, Zambia, Philippines, Indonesia, India, Uzbekistan, Bahrain, Bangladesh, UAE, Lenanon, Palestain, Qatar, Kosovo, Pery, Columbia, Honduras, Dominica Republic, Paraguay, Ecuador, Costa Rica, Argentina, Greece, Spain, Australia and Fiji etc. .

Welcome to contact Ms. COCO in U-Best company!

A Complete Set Automatic Broiler Machine for Farming Poultry Includes The Following Parts:
(1) main feed line of silo;
(2) pan feeding line system;
(3) nipple drinking line system;
(4) ventilation system;
(5) cooling pad system;
(6) climate and power controller system;
(7) fogger spraying and disinfection system;
(8) heater;
(9) curtain for two side walls of open type chicken house.

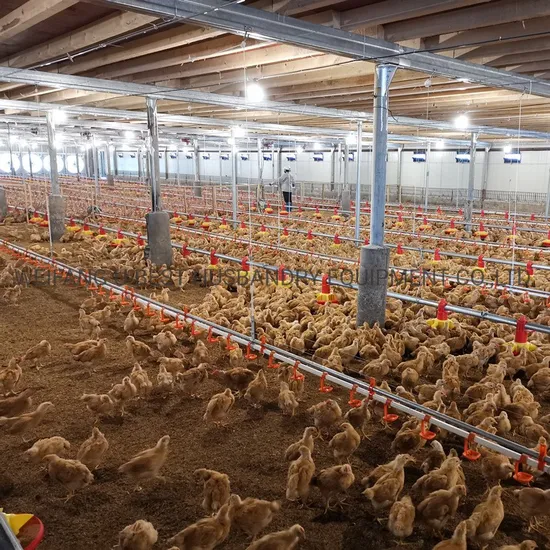

Broiler Farm Equipment - Poultry Farm - Modern Design Fully Automatic Control

Professional Service

Our Services For Your Project of Automatic Broiler Machine for Farming Poultry:
1. Chicken Farm Equipment: produce and supply first-class Quality poultry equipment with Good Price;
2. Chicken Farm: select location, design and construction preparation guidance;
3. Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment;
4. Equipment Installation: if you need, we send our engineer to your farm for guide of equipment installation;
5. Training: we can train your workers to operate our equipments and raise poultry;
6. After-sales service: free consultancy and prompt reply to questions from clients.
Broiler Farm Equipment - Chicken Farm - Fully Automatic Modern Design

Product Description
Automatic Broiler Machine for Farming Poultry
Brand: U-Best
1. Automatic Main Feed Storge Line System of Silo or Manpower Hopper/Feed Bin
Silo or manpower hopper/feed bin is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery from silo or manpower hopper/feed bin to vice hopper at the beggining each feeding line.
2. Automatic Pan Feeding Line System(Línea De Comedero/Alimentación)
Automatically convey feed from vice hopper into each feeder pan/Comedero/Alimentacion.
Driving Motor: high-quality special driving reduction motor, Taiwan Wanxin and Italy Transtecno for your choice,0.75KW/1.1KW/1.5KW. V-Shaped Bin with Hopper: 70/90KGS capacity, hot dip galvanize sheet Feed Tube: Φ45mm diameter,hot-dip galvanized steel pipe with the zinc coating amount of more than 275g/m2, Auger: Helical spring auger from South Africa, Feeding ability:450kg/h
Maximum conveying length:150m Pan Feeder(Type of Plasson/Valco Double Grill/Bigdutchman): 4 pans/3 meters, 3 pans/3 meters.
Material: 100% virgin raw material PP
Feed Sensor: IFM from Germany, time delay range 0 to 2 hours.
Hanging System: winch in the middle of house, hanging point 3m, all steel wire. Anti-roost System
3. Automatic Nipple Drinking Line System(Línea de Bebedor de Agua).
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.
Three kind poultry automatic nipple drinking/drinker system for your choice:
Bigdutchman Type: square water pipe with galvanized support.
Plasson Type: round water pipe with aluminum support
Lubing Type: square water pipe with aluminum support.
Different Type Nipple Drinker But All Is Double Seal Structure which is absolutely no water leak. A Complete Nipple Drinking Line System Includes The Following Parts:
water front system: front controller for drinking system,including filter, water meter and doser medicator etc, which is used to adjust water supply and stabilize drinking volume. water pipe with nipple drinker and drip cup(type of Plasson/Lubing/Bigdutchman): 12nipple or 15nipple/3m, 20 nipple/4m. pressure regulator: double water-inlet-tube and flushing pressure regulator ensure large water flow. water-level display pipe hanging system
4. Ventilation System of Fan and Air Inlet
This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.
36" Box Fan: 20800m3/Hr, 1000×1000×450mm, 0.5kw 50" Box Fan: 43070m3/H, 1380×1380×450mm, 1.1kw 50" Butterfly Cone Fan: 1.1KW 6 fan blades, Air capacity: 49452m3/h.
5. Automatic Cooling Pad System(Evaporativo Panel de Enfriamiento).
Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.
Color: black, yellow, green, red etc; Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame);1500mm, 1800mm, 2000mm(without frame)
Frame: Aluminium frame -high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame.
6. Automatic Environment and Power Control System/Controlador.
This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.

The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.
7. Automatic Heater System/Criador/Calentador.
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.
8. Fogger Spraying and Disinfection System
This system effectively cools, humidifies, dedusts and disinfects poultry house (temperature could be quickly reduced by 3-8 degrees centigrade within a few minutes)
(1) cooling: cooling poultry house by 3~8 centigrade within few minutes.
(2) humidification: increase the humidity to the preset range according to the requirements - 60~70% of the maximum relative humidity.
(3) disinfection: add disinfector into water source of spraying and fogging system, then fogging system could disinfect the chicken house.
(4) washing: the Spraying Machine could also do wash for chicken house.


Packaging & Shipping
Standard export package of automatic broiler machine for farming poultry for export is in container. Shipment in 15 days after the order confirmation.

1. silo: disassembled, spare parts in carton box, galvanized sheet in bunch and in bulk;

2. feeder: pan feeder in carton box, feed pipe in bunch in bulk; hopper in bulk;

3. water: pipe fitted with nipples in plastic bag, cups and spare parts in carton box; support pipe: in bunch in bulk;

4. fans: disassembled way or assembled way;

5. air inlet: carton box;

6. cooling pad: assembled with aluminium frame, or disassembled;

7. heater: in carton box

8. fogging system: spraying engine in carton box, spare parts in carton box

9. enviroment control: In carton box;

FAQ

FAQ:
1. Q: I need a complete set automatic broiler machine for farming poultry, and also need a best price, what should I do?

A: pls let us know:
(1). Chicken House Size (length x width x height).
(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
(4). Maximum and Minimum Temperature of Farm Location.
(5). House Type: close type of two side bricks building wall with 36" fans and air inlets, or open type of using curtain in two sides.

2. Q: what's the material of feeding pan and feeding pipe?

A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.

3. Q: how long is the life of your products?
A: more than 15 Years.

4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?
A: yes. but the client pay for the freight fee.
