Basic Info.
Automatic Two-sided Printing
Not Support Automatic Two-sided Printing
Supply Paper Mode
Automatic and Manual Integration
Network Function
Optional Network
Max. Paper Size
58mm Thermal Paper
Character Structure
ESC/POS Command
Print Method
Direct Thermal Line
Effective Print Width
48mm
Character Size Ank
Font a:12*24, Chines:24*24
Outer Diameter
60mm(Max.)
Loading Method
Drop-in Easy Paper Loading
Transport Package
General Packing
Specification
124mmx122mmx130mm
Production Capacity
20000pieces/Mounth
Product Description

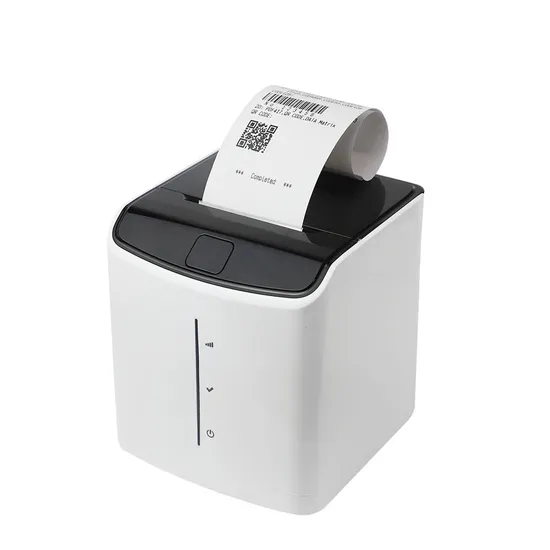

Desktop USB+ Bluetooth 58mm Thermal Receipt POS Printing Machine POS58D-UBTDetailed PhotosFeatures
USB / Ethernet / Bluetooth / WIFI / Cloud (WIFI/GPRS) / SMS (GSM) communication interface for option;Super smart and fashionable design; Drop-in easy paper loading;High printing speed, High Reliability;Cost effective, Easy operation and maintenance;Simplified Chinese, Traditional Chinese, Korean, Japanese and other International language like Arabic support;Compatible with EP-SON ESC/POS command;Provide API for cloud platform development;Provide SDK & Demo for WM/WinCE/Symbian/Andriod/IOS;Provide setting tool for easy configuration;Support SMS printing;Parts: USB Cable+Paper Roll+Power Adaptor. Product Parameters
Item | HCC-POS58D |
Print Method | Direct thermal line |
Print Speed | 80mm/sec |
Effective Print Width | 48mm |
Font | Dot Density: 384 dot/line Character Size ANK: Font A:12*24 , Chines:24*24 Barcode UPCA/UPCE/JAN13(EAN13)/JAN8(EAN8/CODE39/ITF/ ODABAR/CODE93/CODE128/PDF417/QR Code/Data Matrix |
Print Paper | Paper Type: Thermal paper; Paper Width: 57.5±0.5mm Outer Diameter: 60mm(max.) Paper Thickness: 0.06~0.08mm Loading Method: Drop-in easy paper loading |
Print Head | 50km |
Print Command | Compatible with ESC/POS |
Driver | Windows/Linux |
Interface | USB/USB+Ethernet/USB+Bluetooth/USB+WIFI/USB+Cloud(WIFI/GPRS)/USB+SMS(GSM) |
Power Supply | DC12V/2A |
Cash Drawer Power | DC12V/1A |
Weight | 0.6KG |
Dimension | 124mmx122mmx130mm( WxLxH) |
Operating Temp | 0~50°C |
Storage Temp | -20-60ºC |
Operating Humidity | 10~80% |
Storage Humidity | 10%-90%(No condensation) |
HCC-POS58D | HCC-POS58D-U | USB |
HCC-POS58D-UE | USB+LAN |
HCC-POS58D-UBT | USB+ Bluetooth |
HCC-POS58D-UW | USB+WIFI |
HCC-POS58D-UWC | USB+WIFI+Cloud printing |
HCC-POS58D-USM | USB+GSM |
Company ProfileShenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of POS & POS Peripheral Products. We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.Our factory have obtained ISO9001 certificates in 10 year, production department is over 3,000 SQM. Our products sell well in all cities and provinces around China, and also exported to clients over 100 foreign countries and regions. We also welcome OEM and ODM orders.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Certifications
After Sales Service
FAQ1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
6.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers' various application and demands.
8. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
