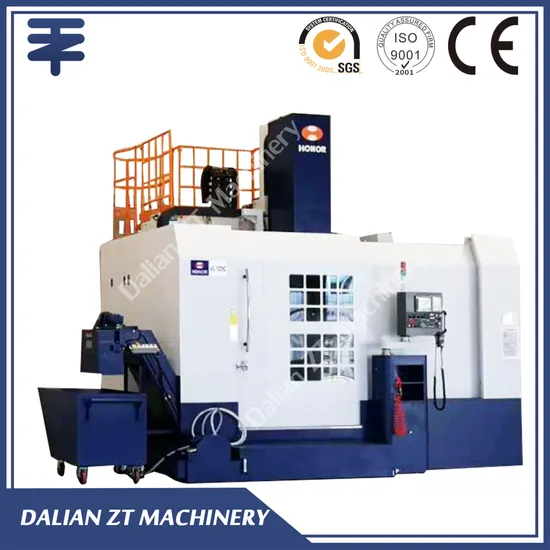

C-axis CNC High Speed Vertical Lathe

Product Description

Product Description

Applications: This machine is used for rough and finish machining of ferrous metal, non-ferrous metal and some non-metal material parts with high speed steel tool, cemented carbide tool and ceramic tool. On the machine, following operation can be carried out like cylindrical turning and boring, tapering,surfacing, grooving, metric and inch threading and curving. Drilling, tapping, boring and milling can be carried out on the machine Product Parameters
Max. machining diameter 2500mm
Table diameter 2250mm
Max. work-piece height 2000mm
Max. weight of work-piece 16t
Table
Max. turning speed of table 200(r/min)
Milling speed range of table 0.02~2r/min
Power of main motor 2×40kW
Master-slave drive
Number of speed for table Stepless
Railhead
Max. cutting force of rail head 40KN
Rapid speed of railhead (X axis) 10000(mm/min)
Rapid speed of railhead (Z axis) 8000(mm/min)
Feed rate of rail head 0.1~1000mm/min
Horizontal stroke of railhead 1450mm
Ram travel of railhead's 1700mm
Ram section 280x280mm
Milling motor power 31kW
Milling spindle speed 10~2500r/min
Spindle taper hole BT50
Cross-rail
Vertical travel of cross-rail 1600mm
Elevating speed of crossrail 350mm/min
Crossrail elevating motor power 18.5kW
Detailed Photos

Packaging & Shipping

Customer's Visiting

FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
