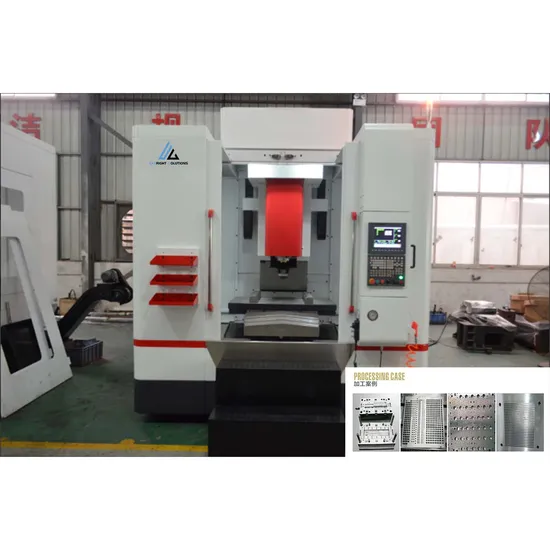

Vertical Deep Hole Drilling CNC Machine Tool for Processing Slender and Deep Holes Without The Need for Tool Retraction

Product Description

Vertical Deep Hole Drilling CNC Machine Tool for Processing Slender and Deep Holes without The Need for Tool Retraction
Main charancteristics:
Vertical CNC deep hole drilling machine is an automatic machine tool with drilling, milling and boring as one. The machinetool integrates modern industrial advanced technology as below:

1.Taiwan CNC system: stable performance, convenien toperation programming, perfect and punctual after-sales service.

2.With high- precision ball screw bar and rolling linear guide, the operating components make positioning accurately.

3.Remote control device is adopted in cooling system. Depends on the hole size, materials, chips and required precision, adjusting the flow rate and pressure can optimize the cooling result.

4.The guide part of the spindle is driven by a single oil cylinder, with smooth operation, ingenious structure and uniform force on theguide sleeve; the intermittent air blowing function can timely and effectively clean up the chip accumulation phenomenon in the processing process.

5. The main shaft adopts Taiwan famous brand, which has the characteristics of high bearing accuracy, large torque and low noise; the main shaft transmission part adopts high torque frontal tooth belt pulley transmission, high speed modular design, and the spindle constant temperature device can effectively prolong the service life of the spindle. Due to the adoption of the above advanced technology,the performance, precision, processing range, operation and work efficiency of the machine tool have reached the advanced level of imilar machine tools.


Application field:
Vertical CNC deep hole drilling machine is widely used in hardware industry,household appliances, mold industry, medical equipment, etc.

Parameter Specification

Items		L640	L850	L1060
Processing capacity	Processing capaci ty	1.5-16mm	61.5~20mm	$1.5~20mm
	Max.Drilling depth	220mm	270mm	300mm
PracessingRange	Xaxis processing range	600mm	800mm	1000mm
	Y axis processing range	400mm	500mm	600mm
	Z axis processingrange	450mm	550mm	600mm
Working Table	Dimensiom of workingtable	700*450mm	1000*500mm	1100*700mm
	Max.Loading capaci ty	300 kg	500kg	1000 kg
	T-slot of worktable [number ofslots,dimensionxspacingl	3-18x100mmn	4-18X100mm	6-18x100mm
spindle	The spindle taper hole	BT40	BT40	BT40/BT50
	Max. Speed of spindle	8000rpm/10000rpm	8000rpm/10000rpm	8000rpm/10000rpm
	Spindle inner hole deviation accuracy	0.005 mm	0.005mm	0.005mm
	Quantity ol guidesleeve	1	1	1
Feed Speed	Fast move	10m/min	10m/min	10m/min
	Zdrilling feed rate range	0-500 mm/min	0-500 mm/min	0-500 mm/min
accuracy	Positioning accuracy	±0.005 mm	±0.005 mm	±0.005 mm
	Repeat posi ticningaccur acy	±0.005 mm	±0.005 mm	±0.005 mm
Powerparameter	Spindle servo motor	5.5kw	11kw	11kw/15 kw
	X Axis Servo motor	2.6kw	3.9 kw	5.5kw
	YAxis Servo motor	2.6kw	3.9 kw	5.5kw
	Z Axis Servo motor	5.5kw	5.5 kw	5.5kw
	Total Power	18 kw	22kw	24kw
Cooling system	Max.pressure of cooling System	2-120 kgf/cm²	2-120 kgf/cm²	2-120 kgf/cm²
	Max.Fluxofcoolantliquid	40L/min	60L/min	60L/min
	Capacity of cuttingailtank	200L	300L	300L
	Motor powerof oil pump	5.5 kw*2	5.5 kw*2	5.5kw*2
	Magnetic fitration accuracy	20um	20um	20um
Measurement& Weight	Floor Areaof machine(length'width)	2200mmx2600mm	2400mmx2800mm	3000mmx2850mm
	Height	2400mm	2650mm	2900mm
	weight	4ton	5ton	7ton

Application
