Vtc70 Vertical Alloy Wheel CNC Lathe Machine CNC Vertical Lathe Price

Product Description

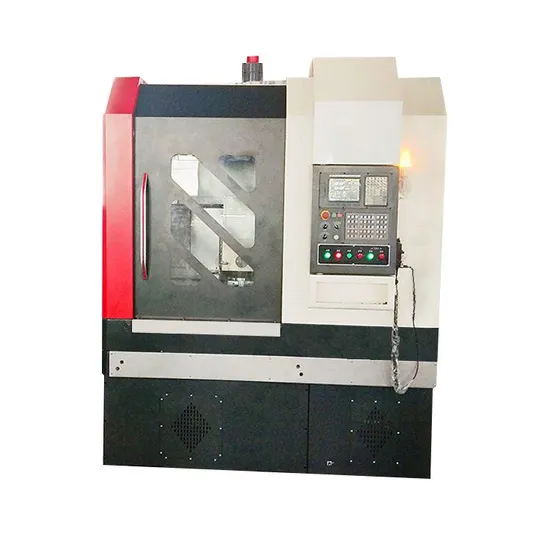

VTC70 vertical alloy wheel cnc lathe machine cnc vertical lathe price
1.Product Description

In order to meet the needs of the market, we independently developed the verticalwheel repair machine, VTC70 CNC Vertical Lathe Machine. Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user-friendly designs.

Our company developed the vertical wheel repair lathe. The machine covers a small space, can be designed to meet different space request.The Z axis is driven by four linear guides, double ball screws and double servo motor. Meanwhile, the counterweight is used to balance the z-axis with a large load bearing capacity,which effectively ensures the influence of the two axes due to different stress structures. The cutting feed in the process of wheel repair can keep sensitive control response and achieve the perfect alloy wheel repair effect.

2.Specification

Specification	Unit	parameter
Maximum rotating diameter of machine tool	mm	700
apindle speed range	rpm	100~1000
cutting feed speed	mm/min	0.1~1000
tool test vertical movement length	mm	700
tool test horizontal movement length	mm	700
rapid traverse speed vertically	mm/min	16000
rapid traverse speed horizontally	mm/min	16000
diameter of hyaraulichuck	mm	400/500
main motor power	kw	18.5/22
positioning accuracy	mm	X,Z/0.015,0.02
repeated positioning accuracy	mm	0.012
machine tool overall dimension	mm	2050x1800x3200

3.Main Features

1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque, heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing.
6. Automatic centralized lubrication with full sufficiency and reliability.
7.This machine tool is equipped with drag chain chip conveyor


4.Application
CNC Vertical Lathe is suitable for internal and extemal turning,internal and extermal tapering,circula arc,facing,slotting,thread,drilling,reaming,boring,chamfering of big diameter axle parts and disc type parts. The machine has awidely use,high efficiency,good stability,easy to operate.It can achieve the high-precision processing of single or batch processing.
5.Packaging Details


Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

6.Our services


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
7.Company information
Zhongyou has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.

8.FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
