2023 China Supplier 200-250 Tph Aggregate/Stone Crushing Screening Plant Machine

2023 China Supplier 200-250 Tph Aggregate/Stone Crushing Screening Plant Machine

US$150,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Stone Crushing Plant
Cutter Material
High-Speed Steel
Drive
Electric
Object
Stone
Capacity(T/H)
80-500t/H
Max.Feeding Size(mm)
115
Marketing Type
Hot Product 2023
Key Selling Points
Easy to Operate
Type
Jaw Crusher
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Online Instruction, Spare Parts Provided
Warranty
12 Months
Transport Package
Nude
Specification
standard size
Trademark
XINTU
Origin
China
HS Code
847420
Production Capacity
5000 Sets / Year

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
20000.000kg

Product Description

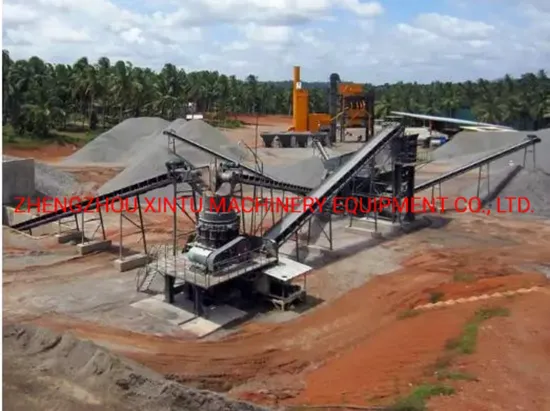

Stone Crusher Stationary Crushing Plant
Product Description
The capacity mainly vary between 50-500thp. And in order to meet the different demands of customers, the production line can equip with cone crusher, dust removal equipment and other equipment. It is suitable for the materials like hard limestone, granite, basalt, pebble, metallurgy slag and artificial sand making work. It is widely used in the industries of hydroelectric, building materials, highway, and urban construction. And according to different technological requirement, various types of equipment can be combined to meet the demands of different customers.
Details Images
Stationary crushing plant is used to produce aggregate of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc. It is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects, etc. 1-30t/h, 60-80t/h, 80-100t/h, 100-150t/h, 200-400t/h, etc. are the hot-sale production capacity of rock crusher plant.
Equipment Configuration
Model 30-50tph 60-80tph 80-120tph
Vibrating Feeder ZSW650*2300 ZSW850*3000 ZSW960*3800
Jaw Crusher PE400*600 PE500*750 PE600*900
Impact Crusher PF1007 / PF1010 PF1010 PF1214 / PF1315
or Cone Crusher PYB900 CS75 CS110
Vibrating Screen 3YK1548 3YK1848 3YK1860
Model 150-200tph 180-220tph 300tph
Vibrating Feeder ZSW1100*4200 ZSW1100*4200 ZSW1300*4900
Jaw Crusher PE750*1060 PE900*1060 PE900*1200
Impact Crusher PF1315 PF1320 / PF1210*2 PF1315*2
or Cone Crusher CS220 CS160*2 CS250+CS110
Vibrating Screen 3YK2160 3YK1860*2 3YK2460*2
stone crushing plant is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Equipment Configuration of stone crushing line:
1.Medium and Soft rock and stone:
GZT series vibrating feeder + PE series jaw crusher + PF series Impact crusher + YK series vibrating screen + belt conveyor:
2.Medium and hard rock and stone: GZT series vibrating feeder + PE series jaw crusher + CS/HP cone crusher + YK series vibrating screen +belt conveyor;
3.Equipment Configuration of Sand making production line: GZT series vibrating feeder + PE series jaw crusher + impact crusher + VSI series sand making machine + Sand washer + Belt conveyor + YK series vibrating screen;
Customize solutions according to customer requirements
We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
