Factory Direct Sale Jaw Crusher with Good Price

Factory Direct Sale Jaw Crusher with Good Price

US$8,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
PE250X400
Drive
Electric
Crushing Style
Extruding
Compressive Strength (For Crushing)
250-300MPA
Crushing Degree
Coarse Crusher
Finished Surface
Outer Surface Process
Certification
CE, ISO
Condition
New
Color
Green
Transport Package
Nude Packing
Specification
PE250X400
Trademark
ANVIK
Origin
Henan
HS Code
8474209000
Production Capacity
100sets/Year

Product Description

Introduction of Jaw Crusher
Jaw Crusher has been widely used in the fields of mining, metallurgical, construction, road and railway building, hydropower and chemistry etc. It is mainly applied in the primary crushing in which the compressive strength of original material is under 320Mpa.
Main Features and Benefits
1. Simple structure and easy maintenance.
2. Stable performance and low operating cost
3. Flexible discharge opening setting
4. High resistance to friction, abrasion and compression with longer operating life span.
Operating Principle
This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Specifications
Model Size of Feed
Opening(mm)
Max Feed
Size (mm)
Discharge Range
Opening (mm)
Capacity
(t/h )
Motor Power
(kw)
PE-150X250 150X250 125 10-40 1-3 5.5
PE-250×400 250×400 210 20-60 5-20 15
PE-400×600 400×600 340 40-100 15-60 30
PE-500×750 500×750 425 50-100 40-100 55
PE-600×900 600×900 500 65-180 60-140 75
PE-750×1060 750×1060 630 80-180 90-230 90
PE-900×1200 900×1200 780 95-225 150-350 110
PE-1000×1200 1000×1200 850 195-280 180-400 132
PE-1200×1500 1200×1500 1020 150-300 400-800 160
PEX-150×750 150×750 120 18-48 5-16 15
PEX-250×750 250×750 210 25-60 10-40 22
PEX-250×1000 250×1000 210 25-60 15-50 37
PEX-250×1200 250×1200 210 25-60 20-60 45
PEX-300×1300 300×1300 250 20-90 25-95 55

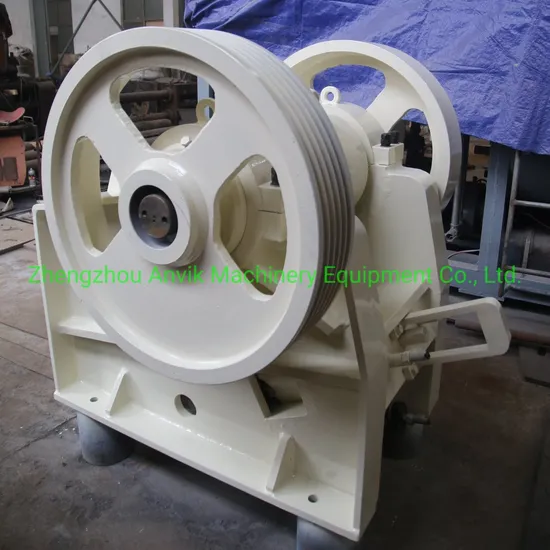

Photo of mini jaw crusher leaving our factory
Photo at Our Factory
