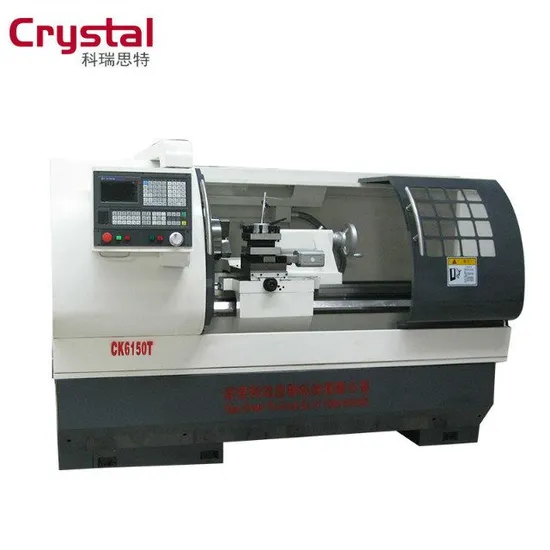

High Precision Fanuc Automatic CNC Lathe with Steady Rest Ck6150t
| US$15,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6150T
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Size of Bed
500mm
Max. Swim Over Carriage
290mm
Max. Length of Workpiece
1000mm
Spindle Speed
150-2000rpm
Spindle Bore
72mm
Stations of Tool Holder
4 Station
Max. Size of Tool Post
25*25mm
Chuck Size
250mm
Motor Power
7.5kw
System
GSK or Others
Transport Package
Wooden Case
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
35 PCS/ Mounth
Product Description
High Precision Fanuc Automatic CNC Lathe with Steady Rest CK6150TThe machine through the numerical control system could automatically process the
inside and outside cylinder surface, cone surface, circular, arc surface, end face etc.
Also can process the single and multiple threads in metric, inch and other standards.
Product Display
A. Main Features
1. It is made from the whole cast-iron, which is heavy enough with good rigidity and
stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and
high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
The extra size diameter of the spindle bore is φ72mm while the diameter of chuck is
φ250mm.
B.Specification of CK6150T
| ITEMS | Specifications |
| Max. swing over bed | Φ500mm |
| Max. swing over carriage | Φ290mm |
| Max. length of work piece | 1000mm |
| Width of the machine | 360mm |
| Size of three-jaw chuck | 250mm |
| Range of spindle speed | 150-2000rpm |
| Spindle bore | Φ72mm |
| Spindle taper | 1:20/Φ90 |
| Spindle nose | Type of spindle head D-8 |
| Spindle speed step | step-less |
| Stations of tool carrier | 4 station electric tool carrier |
| Tool bar section | 25X25mm |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis torque | 6/10N.M |
| X/Z axis travel | 280/1000mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Taper of tailstock quill | MT5 |
| Max. range of tailstock quill | 150mm |
| Motor power | 7.5KW |
| Packing size(length ×width ×height) | 2660mm×1560mm×1730mm |
| Gross weight | 2500kg |
C. Standard configurations
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station electric tool carrier
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50/60Hz
