Adult Patient Dental Disposable Water Proof Fastener Feeding Baby Feeding Bib Pad Making Machine

Product Description

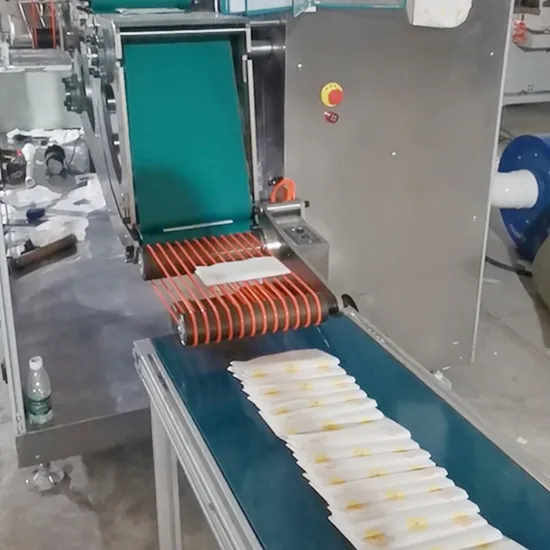

Full automatic baby bibs making machine
We have different type of machine to do bibs.One type for adult and one type for baby

Product Parameters
We have different type of machine to do bibs.One type for adult and one type for baby

Item	JJWD-76-40-1
Specification	Expand size:40-80CM(width)×35-60CM(length)
Raw material	Roll material diameter≤80CM, width≤80CM
Folding way	Customized
Speed	120pcs/min
Installed power	About 15 KW
Raw material tube	3 inch
Input power	380V;50Hz;
Input air source	0.6mpa-0.8mpa.
Machine size	9×2×2.2

Detailed Photos

Our Advantages
Equipment process flow: raw material unwinding → longitudinal wrap → wrap edge sealing → cutting and binding break → longitudinal double folding → transverse cut → transverse fold → Finished product output
1.Feeding rack: Adopt high quality national standard square steel pipe welded main frame, overall stability and firm, surface rust treatment and stainless steel coated.
2.Transmission system: the conveyor belt is arranged in the direction of the machine, and the servo motor is used to drive the high-precision synchronous wheel.
3.Material unwinding frame: high precision servo control material tension, manual correction.
4.The over-lock mold made of stainless steel , and it's running smooth and neat, and the size is accurate
5.The edge of the bag is sealed by heat sealing, and the edge is evenly and firmly sealed.
6.Cutting and binding breaks: The tool is made of high-quality die steel, durable, the incision is smooth, the servo drive is used, and the incision position is accurate. (Adopts cylinder pressure regulation)
7.Longitudinal folding: adopts the form of multi-transition folding rod, longitudinal folding is stable and flat
8.The cutting device adopts roll cutting mode and is driven by servo motor. The cutting length error of the product is not more than 3mm
9.Horizontal folding: using servo control folding device, folding flat, accurate position
10.Quality control: The folding process shall not cause secondary damage to the material, stretching and other functional or performance damage. There should be no dirt or foreign object in the process, especially oil.
11.Product output platform: driven by speed regulating motor, with batch prompt and progress function (batch product spacing open, convenient for subsequent packaging counting)
Company Profile
Changzhou Jujin Automation Equipment Co., Ltd. is located in Changzhou City, Jiangsu Province. It is only 180 kilometers away from Shanghai and Shanghai Port.
The company was established in 2008 and has had 16 years of manufacturing experience so far. There are more than 100 employees in the whole company.
The company has three major products. Firstly, there are disposable medical products, such as medical bed cover machines and surgical hole drape of various sizes.
Secondly, there are hotel products, like disposable toilet seat covers, disposable sanitary napkins, disposable towels and so on.
Thirdly, there are hygienic consumables such as baby bibs, baby aprons, pet pads and so on. Besides the above mature models, Jujin can also manufacture customized machines. The company has its own design team. Up to now, the customized machines of the company have been sold to more than 25 countries. Jujin provides one-stop services from design to transportation. Customers from all over the world are welcomed.
Exhibition Display

Certifications

FAQ
1.Q: Are you a factory or trading company?
A: We are a factory ,welcome the clients.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in ChangZhou City,Jiangsu province China.
3.Q: How long is the warranty period ?
A: ONE year.
4.Q: How about the installation? Do you have after-sale service?
A: We will send professional technician to your company to install the machine and train your staff until they could operate the machine independently.
5.Q: Why should we choose your company?
A:Because we can produce customized machine .We have our own design team ,and so many professional engineers.
