150ton Rubber Ring Vulcanizer Rubber Seals Vulcanizer Rubber Rings Vulcanizer

Product Description

150Ton Rubber Ring Vulcanizer Rubber Seals Press Machine Rubber Gasket Heating Vulcanizer
Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) plate vulcanizing and compression molding.
This machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.
Machine Features
1. In/Out molds are treated with nitrogen and grinded. These processes achieve high-precision parallelism of working benches. 2. High-precision structural steel design, easy but speedy, convenient to fit various molds. Adjusting, repairing, or maintaining are very easy and accurate. 3. Slow speed of alignment adjusting is provided to make the molds calibration more safe and more accurate to suit various molding conditions.

Technical Parameter

Model	XLB-50	XLB-100	XLB-200	XLB-300	XLB-350	XLB-400	XLB-500
Mold closing force	50T	100T	200T	300T	350T	400T	500T
System pressure	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa	21Mpa
Clamping stroke	280mm	280mm	300mm	300mm	300mm	300mm	300mm
Rapid clamping speed	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s	60mm/s
Plate size	350*350 400*400	450*450 500*500	510*540 600*550	700*650	700*700	900*800	700*700 800*800 950*800
Daylight	350	350	350	350	350	350	350
Max temperature	250	250	250	250	250	250	250
Motor	5.5	5.5	7.5	11	11	13	13
Heating power	9.6	9.6	18.6	20.6	20.6	27.8	27.8
Oil capacity	160L	270L	320L	400L	400l	500L	600L

We can design kinds of non-standard press according to your requirement.
Please tell us your required total pressure, heating platen size, working layer, daylight distance and piston stroke.

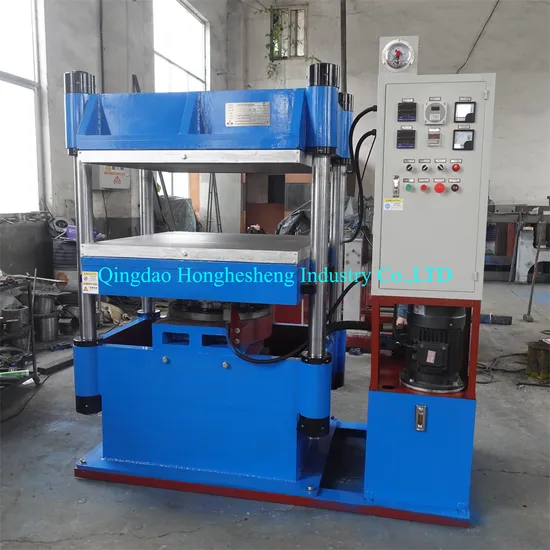

Machine Pictures
Machine Delivery
Related Machines
Our factory is professional in manufacturing different types of plate vulcanizer,also can manufacture rubber cutter,open mixing machine,and kneading machine,etc. Welcome to contact me for more machine details~~
