Round Column Stand Drill Metal Vertical Drilling Machine (Z5035A Z5040A)
Basic Info.
Model NO.
Z5035A Z5040A
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Round Column Stand Drill Metal Vertical Drilling M
Max.drilling dia.
35/40mm
Spindle taper
M.T.4
Spindle travel
155/200mm
Feed steps of the spindle
3/4
Dia. of column
120/160
Working area of the worktable
500*420/580*460
Transport Package
Plywood Case
Specification
1850x750x1000 mm
Trademark
LUZHONG MACHINE TOOL
Origin
China
HS Code
8459290000
Production Capacity
500 Sets
Product Description
Round Column Stand Drill Metal Vertical Drilling Machine (Z5035A Z5040A)Product Description
Product Parameters
Product main technical specifications:
| Model | unit | Z5035A | Z5040A |
| Max. drilling capacity | Mm | 35 | 40 |
| Max. tapping capacity | Mm | M22 | M22 |
| Distance spindle axis to column surface | Mm | 590 | 590 |
| Max. distance spindle nose to base | Mm | 1150 | 1175 |
| Max. spindle travel | Mm | 155 | 200 |
| Spindle table | MT4 | MT4 | |
| Number of speed step of the spindle | Step | 12 | 12 |
| Spindle speed range | r/mm | 125-3030 | 52-1400 |
| Feed steps of the spindle | degree | 3 | 4 |
| Feed range of the spindle | Mm/r | 0.1,0.2,0.3 | 0.1,0.2,0.3,0.4 |
| Max. stroke of the worktable and its bracket | Mm | 530 | 530(410) |
| Rotation degree of worktable and its bracket in cross direction | Degree | ±45° | ±45° |
| Working area of the worktable | Mm | 500*420 | 580*460 |
| Dia. of column | mm | 120 | 160 |
| Main motor power | KW | 1.0/1.2 | 2.2 |
| Max. external dimension | Mm | 875*510*2140 | 940*680*2405 |
| N.W | Kg | 430 | 650 |

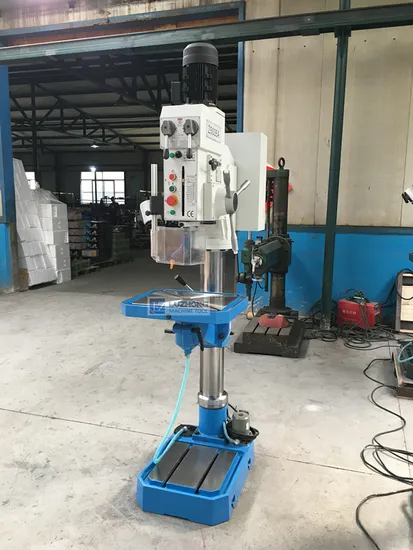

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
