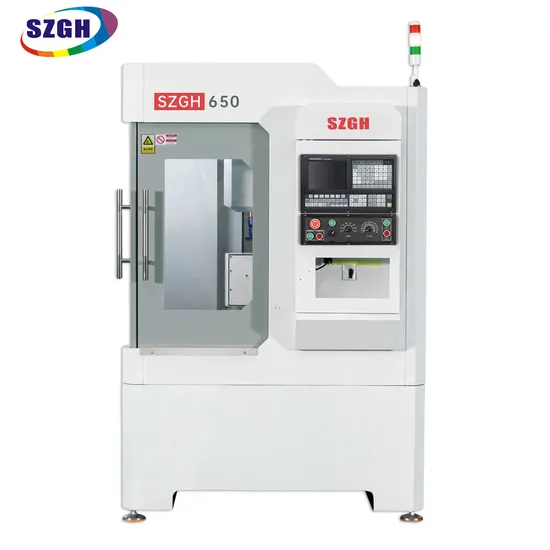

SZGH-650 CNC Milling Machinery Suitable to Copper Drilling And Tapping Center

Product Description

High Precision Ball Screw 3 Axis 4 Axis 5 Axis CNC Vertical Machining Center 650 Automatic Milling CNC Machine Center Using P-class Roller Linear Guide
The feed axis of SZGH-650 series machining center is controlled by X, Y and Z coordinates, and the main axis is driven by servo motor. It can realize the drilling, milling, boring, expanding, reaming, tapping and other processes of various complex parts such as disk, plate, shell, CAM and die in a clamping process. It is suitable for the single and batch production of various complex parts in various industries. The process is programmed to shorten the production cycle, so that the user can obtain good economic benefits.
SZGH-650: 650*400*500mm
1) SZGH 130 Servo Motor Driver 1.5KW,6NM;
2) SZGH 3 Axis CNC Milling Controller Center;
3) 3.7KW Spindle Servo Motor ;
4)Arm Type ATC-10 Tools

Product Description
1. X, Y, Z three axis travel :500*600*300mm;
2. The spindle rotation mode is belt connection, the highest speed :6000;
3. The standard configuration of the knife library for 16 round knife library to meet customer needs;
4. The head group is a heavy-duty box-type structure with strengthened internal ribs and high rigidity;
5. The spindle punching method adopts pneumatic mechanism, the spindle is evenly stressed when punching, and the bearing life is extended;
6. The electrical box is designed in isolation type, the heat source part of the controller is separated, and the heat exchanger is used in front of the heat dissipation to avoid external dust entering the electric box; The rear fan dissipates heat from the fan hot plate;
7. The three-axis adopts high-precision ball screw, combined with precision nut precompression and tail pretension device, to ensure that the back backlash and thermal deformation of the machine are kept at a low value for a long time;
8. X, Y, Z axis using P-class roller linear guide, with high rigidity, low noise, can do fast displacement and obtain the best cycle accuracy;
9. All finished products are laser positioning correction and circular testing to ensure the best positioning accuracy and servo characteristics, and the machine before shipment through strict inspection measures to ensure the long-term stability of the accuracy of the machine.

Detailed Photos
Product Parameters

Machine Type	unit	SZGH-650
Worktable
worktable(length×width )	mm	600*500
Maximum load of table	kg	400
T-slot(number of slot×slot×pitch)	mm	5-16
Triaxial itinerary
Travel forX/Y/Z axes	mm	500/600/300
Distance from spindle nose to table surface	mm	100-600
Distance spindle center to column guide surface	mm	476
Feed system
CNC system		SZGH
Rapid shift of axes of X/Y/Z		32/32/24
Maximum cutting feed speed		8
Automatic tool transform system
Standard tool quantity		16
Average tool exchanging time	sec	1.8S
Precision
Positioning accuracy	mm	±0.008
Accuracy of repeated positioning	mm	±0.005
Spindle system
Spindle speed	r.p.m	8000
Spindle specifications		BT40
(Drive manner of spindle)		Belt type
(Motor power of spindle)	kW	7.5
Machine specifications
Integrated weight(kg)	kg	2900
Overall dimension (length×width×height)	mm	1650x1800x2450

Installation Condition
