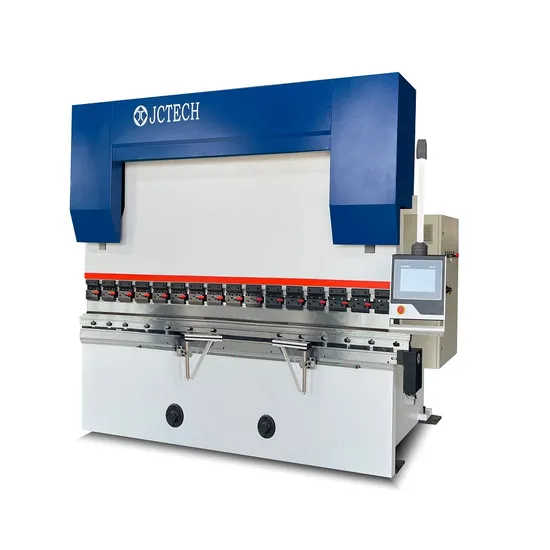

Press Brake Machine Company Low Price Mini 40ton 1200mm CNC Hydraulic Plate Bending Press Brake Machines

Product Description

Product Description Press Brake Machine Company Low Price Mini 40ton 1200mm Cnc Hydraulic Plate Bending Press Brake Machines
Advantage:
1.Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simpleappearance.
2.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.
3.Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic crowning structure
jointly ensure the bending precision of MB8 series Press Brakes.
4.Optimal ratio of parameters and core configuration ensure stable performance, and easy operation.
5.DA53T controller is equipped with standard 4+1 axis (Y1, Y2,R, X axis and W axis crowning). At the same time, suitable die can
be selected to realize bending processing of various workpieces with complex shapes.
6.The Press Brake adopts full closed-loop electro-hydraulic servo synchronous control technology. The position signal of the slide
block is fed back to the CNC controller by the grating ruler on both sides, and then CNC controller controls the opening size of the
synchronous valve and adjusts the quantity of the oil cylinder, so as to control the slide block (Y1,Y2)to run at the same frequency
and always keep the parallel state to the working table.
7.CNC controller will automatically control the deflection compensation of the worktable, in order to achieve uniform angle on full length
of the workpiece according to machine process state.
8.Using hydraulic crowning method or mechanical crowning method, the workpiece with uniform precision over the whole length
of the worktable can be obtained. The hydraulic crowning is composed of a group of oil cylinders in the lower working table, which
can make the working table move relative to each other and form an ideal curve with convection to ensure the relation between the
relative position of the sliding block and the bearing force remains unchanged. The compensation amount is determined by the CNC
controller according to the thickness of the plate and the material characteristics.
Main parts1.Delem CNC Controller--Netherlands
2.Electric-- France brand
3.INOVANCE Servo Motor and Drive--China
4.Merkel Sealing Ring--Germany
5.GIVI Grating Ruler--Italy
6.EMB Oil Tube Connector--Germany
7.Rexroth Valve Block--Germany
8.Rexroth Oil Pump--Germany
9.HIWIN Ball Screw,Linear Guide Rail,Back Stopper--Taiwan
10.Quick Clamps
11.Hydraulic and Electrical Overload Protection
12.Mechanical Fast Punching Dies and V Peplaceable Dies
DELEM CNC CONTROLLER SERIES
Machine DetailsY1 Y2 Axis Control
Adopt Germany Rexroth fully-closed-loop electro-hydraulic servo control
technology, slider positon signal is feedbacked to controller by Italy GIVI grating
ruler, the the CNC controller adjusts the amount of fuel tank by changing the
synchronous valve opening size, Hereby controlling the slider (Y1,Y2) running on the same frequency,maintaining the parallel state of the worktable.
Step Motor
Stable and efficient, long service life. Energy saving up to 35% compared to conventional systems.X-axis and R-axis Driven Servo Motor
The backgauge is controlled by servo motor with X-axis automatic adjustment function, and Z-axis stopper can be adjusted up and down and moved left and right along with the double track.Backgauge
Backgauge adopts horizontal installation shell structure with high stability, single shell double guide rail, high precision, X-axis drive, automatic controller.
Stop finger fravels along the double guide rail in left and right.Ball Screw and Linear Guide Rail
Taiwan HIWIN High-precision ball screw and Germany Roust linear guide rail.
Backgauge with high reliability, and single-shell double linear guide rails with high precision, X-axis drive, CNC automatic controller.Quick Clamp
The upper die tools are mechanical clamps, with higher safety when worker changing dies.
The dies are made by 42CrMo steel, hardness after heat treatment up to 42 degrees, ensuring the die service life.Standard Toolings
Standard double-V down dies with different size and various shaped slots for choice, convenient for exchanging dies, capable for bending regular plates, with high cost-performance ratio.
CNC double-V die workbench easy for installation of segmented dies.Mechanical Crowning
Motor-driven mechanical crowning, High precision, improving the precision of bending angle and linearity.Related Products Fiber Laser Cutting Machine CNC Electro-hydrulic Press Brake Bending Machine 4 in 1 Handheld Fiber Laser Welding Machine
Company Profile
JINGCHUANG (Tianjin) Laser Technology Co., Ltd. started in 2015, the founder comes from the Swiss Bystronic Group, the company technical team are from more than 10 years of experience in the laser industry. The company uses the most advanced modern industrial technology means engaged in fiber laser cutting machine, fiber laser pipe cutting machine , fiber laser welding machine , CNC bending machine, sheet metal complete sets of related industrial equipment and sales. Productsare widely used in precision machinery, auto parts , kitchen hardware, electronic appliances, smart home and many other industries. In the field of metal sheet metal processing, Jingchuang (Tianjin) Laser Technology Co., LTD., with strong enterprise strength and strong technical strength, has become a well-known manufacturer and solution provider of large and medium power laser equipment, high-end CNC bending and forming equipment, sheet metal automation production line. The company has high specification manufacturing capacity, scientific and efficient assembly production line, comprehensive system service network, products are sold all over the country.Corporate vision: Become a respected enterprise in the global sheet metal equipment field.
Packaging & Shipping1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely.
3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
After Sales ServiceFree training course at our plant.Specialized after-sales service group 24 hours online each day, to provide free technical support by e mail, whatsapp, wechat and so on.Machine has been tested and adjusted before delivery, you can use the machine directly after receiving it.Providing technical services door to the door: we have professional engineers to offer machine installation commissioning and maintenance if customers pay ticket and related charges(accommodation problem) .(5 days training are free and overtime is 100 USD/Day) About installation, because we ship the machine by a full container we won't disassemble too much p arts, the main parts that need to connect is laser source, water chiller and controller. We have detailed manual and videos, if you don't understand, our after-sales service man can guide you hand by hand, video call is available.FAQ 1. This laser weld machine also need others? It only need nitrogen gas as protective gas.and also can use argon.but nitrogen is more cheaper than argon. 2.Does need professional technical to operate this machine? No. this machine operate is very easy. everyone can operate it . it only need about 10mins can learn it. 3.What is consumables life? For nozzles and protective lens, both can use about 30 days. 4.It need wire or not ? We have both model.one is without wire feeder , it use for material section is vertical.such as fiber laser cutting workpiece. The other is with wire feeder.It use for
material have a little gap.and it can increase welding strength and penetration. 5.What type of welding wire is needed ? Using gas shielded welding wire, diameter:0.8mm,1.0mm and 1.2mm. 6.If i buy machine without wire feeder, can add wire feeder later? No. because the laser head and controller are all different. If you have any questions, Please contact us.
