CNC Control Toroidal Transformer Hook Type Winding Machine with Wire Diameter 0.15-3.0mm for Choke

Product Description

Specificaton

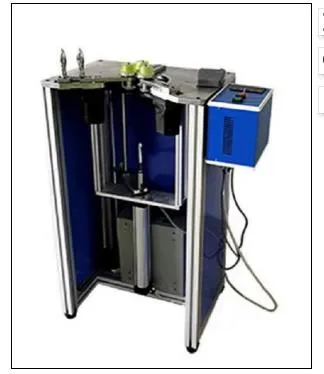

GW-9200 Stepping Motor Hook type Toroidal winding machine

Wire Size :	0.15-3.0mm
Finished I.D.:	8mm
Finished O.D.	90mm
Minimum O.D.:	20mm
Finished Height:	60mm
Power consumption:	200W
Spreading Motor :	DC,5V Stepping Motor *3
Pressure range:	0.5~0.7Mpa
Power :	220V, 50/60Hz
Net Weight :	75kg
Dimensions :	L1030*W720*H580mm

Features:
1.Hook Type Transformer Winding Machine has 4 standard hook size with specials available.
2.Air operated with air compressor for Hook Type Transformer Winding Machine
3.Programmable winding direction,winding returns range(Turns or Angle) and segment winding angle
4.Accurately wire spacing by programmable controller
5.A pre-cut length of wire is pulled though the centre of the toroidal core by means of a hook driven by a pneumatic cylinder, the stroke length being adjustable by means of magnetic sensors.
Advantage:
1.Hook Type Transformer Winding Machine efficiency is high. The winding efficiency can be greatly improved by appropriately adjusting the brake to match the corresponding speed.
2.All the wire crossing parts can ensure that the wire is not damaged.
3.High versatility of parts and easy maintenance.
4.Complete varieties, wide wire diameter cross domain, can be used in one machine
5.The exchange line is good. Various types of wearing parts can be interchangeable Detailed Photos
Application

Company Profile
Grewin Industrial Group Co., LTD, founded in 1993, is one of China's largesttoroidal winding machine manufacturers.
Widely used in toroidal transformer, current transformer, sensor, inductor manufacturing and other related industries.
Our team always adheres to the concept of serving customers and meeting customer needs, and has won unanimous praise from customers.
Certifications

Our Team with Customers

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for ToroidalTransformerWindingMachine
Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.
After -sales service:
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service
