4000 Kg Low-Profile Alignment Scissor Car Hoist

Product Description

3.5 T / 4 T Ultra thin Scissor Car Lift with four wheel alignment
Auto hydraulic 3500 kg under ground car scissor lift

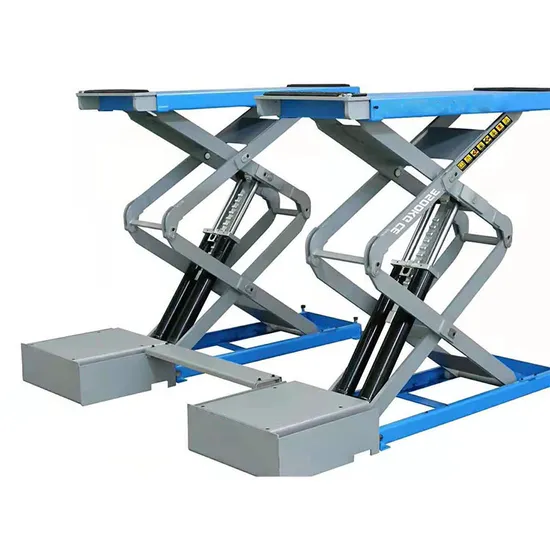

4000 kg low-profile alignment scissor car hoist
Product Description
The large scissor double-layer four-wheel alignment car lift can lift all kinds of cars with a weight of not more than 4000KG, and is suitable for car four-wheel alignment, body maintenance and other maintenance. It is a common equipment for auto repair companies, auto 4S shops and auto repair shops.
Product Features 1.It adopts double-layer hidden structure, which has good synchronization and small space occupation. 2.Independent control box, low pressure control, good safety performance 3.Hydraulic volume synchronous cylinder, running smoothly 4.With hydraulic lock and mechanical tooth safety claw, double safety safety device, safe and reliable 5.With hydraulic failure and overload safety valve protection and anti-pipe explosion device 6.With sliding system device, the platform is compact 7.The position of the front wheel corner plate is adjustable and the side slide plate is extended, which is suitable for more models.
Product Parameters

lifting capacity	4000kg	3500KG
Lifting height	1850mm	1800mm
Initial height	330mm	335mm
Lifting time	50s	50s
Fall time	60s	60s
Platform length	4500mm	4500mm
Platform width	605mm	600mm
Voltage	220V/380V	220V/380V
Power	2.2kw	2.2kw
Air pressure	6-8KG/CM2	6-8KG/CM2
Operating temperature	5-40 degrees	5-40 degrees
Weight	2115kg	1980kg
Package size	4600*630*860mm	4500*620*850mm
Drive way	Electro-hydraulic	Electro-hydraulic
