4 Cavity Semi-Automatic Pet Bottle Stretch Blow Molding Machine

Product Description

Product Description

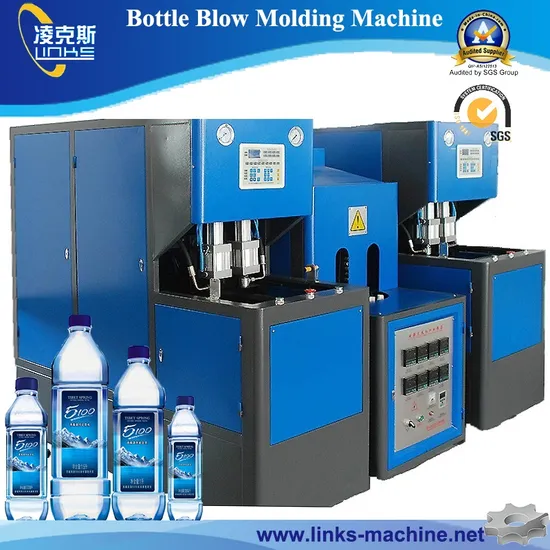

Semi-Automatic Pet Bottle Stretch Blow Molding Machine
With High efficiency, easy maintenance
Stable performance with advanced PLC, and operate the whole machine with human-machine interface touch screen, which make the operation and adjustment easy.
Semiautomatic bottle blow molding machine is suitable for producing PET plastic containersand bottles.
It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle et.
Date of the Machine

Name	Item	Unit	Details
Blowing machine*2	Dimension	mm	1600*600*1610mm
	Weight	kg	500
	Bottle volume (max)	ml	2500
	Bottle volume (min)	ml	50
	Bottle Neck Diameter (max)	mm	40
	Bottle Neck Diameter (min)	mm	18
	Body Diameter (max)	mm	125
	Body Height( max)	mm	420
	Number of Cavities	mold	2
	Production output	pcs/h	1600-1800BPH
	Clamping force	T	5.7(56KN)
	Mold thickness	mm	200(max)
	Mold width	mm	360x390
	Space between Tie-bars	mm	120-220
	Diameter of Tie-bars	mm	63
	Scope of Tie-bars	mm	405
	Mold stroke	mm	160
	Stretching stroke (max)	mm	420
	Working pressure	Mpa	0.8-1.0Mpa
	Blowing pressure	Mpa	2.0-3.0Mpa
	Power	V/KW	1KW
	Weight	Kg	500
Pre-heater	Dimension	mm	1870*630*1450mm
	Weight	kg	260
	Power	V/KW	14KW

Electrical Parts Brand:

No	Name	Brand
1	Assembly cylinder	Airtac
2	Stretching cylinder	Airtac
3	Sealing cylinder	Airtac
4	Computer controller	XINGJIE
5	Touch screen	XINGJIE
6	Motor	XINGXING
7	lead rail	ABBA
8	Oil-water separator	Airtac
9	High pressure air tank	DAFENG
10	Low pressure air tank	LK
11	Blowing valve	LK

FAQ
1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work
