VHF UHF PS700/800MHz Signal Power Tapper 138-960MHz N Female for Firstnet Solution Red Type

Product Description

Product Description

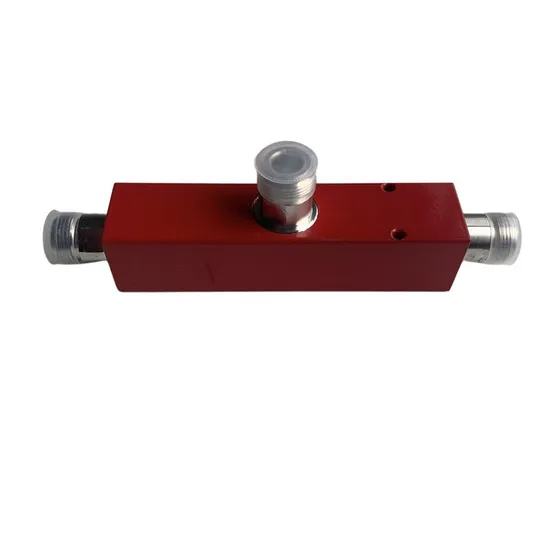

200W Power Tapper(138-960MHz, N Female, IP65)
Tappers operate similarly to directional couplers but with no directivity. Tappers are uniquely specified, as the value in dB is a ratio of the two output signals, not coupling value. For example, a 3:1 or 4.8 dB tapper with a 10 watt input signal would have 7.5 watts output at the mainline port and 2.5 watts output at the tapped port, similar to a 6 dB directional coupler. Signal power tappers, signal taps, power tappers, or just taps, are passive RF devices designed to draw a small portion of power from the main transmission line without causing substantial loss.
Topwave Model TPW-PT-1396-XX-NF(XX means coupling in dB), 138-960MHz N Female RF power tapper feature with low insertion loss, low VSWR and power handling up to 200 watts. Available with N Female, 4.3-10 or 7/16 DIN connectors with a matching coupling port.

Features & Benefits

·Wide Frequency Band Covering 138-960MHz
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors

Electrical & Mechanical Specifications

Model Number	Ratio, nom.	Output Split	Branch Flatness ref. to Input Level, incl Loss(dB)	Input VSWR (max)	Average Power(w)	Humidity
TPW-PT-1396-3-NF	2:1/3.0dB	-2.3/-4.8	±1.3@138-698MHz ±0.8@698-960MHz	1.4:1	200	5-95%
TPW-PT-1396-5-NF	3:1/4.8dB	-1.8/-6.1	±1.3@138-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-6-NF	4:1/6.0dB	-1.6/-7.0	±1.3@138-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-7-NF	4:1/7.0dB	-1.35/-7.8	±1.0@350-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-8-NF	6:1/8.0dB	-1.1/-8.5	±0.8@350-698MHz ±0.8@698-960MHz	1.35:1	200	5-95%
TPW-PT-1396-10-NF	10:1/10dB	-0.9/-10.5	±1.1@350-698MHz ±1.1@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-13-NF	20:1/13dB	-0.7/-13.0	±1.2@350-698MHz ±1.2@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-15-NF	30:1/15dB	-0.5/-15.3	±1.25@350-698MHz ±1.25@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-20-NF	100:1/20dB	-0.4/-20.1	±1.5@350-698MHz ±1.5@698-960MHz	1.3:1	200	5-95%
TPW-PT-1396-30-NF	1000:1/30dB	-0.4/-30.1	±2.0@350-698MHz ±2.0@698-960MHz	1.3:1	200	5-95%
