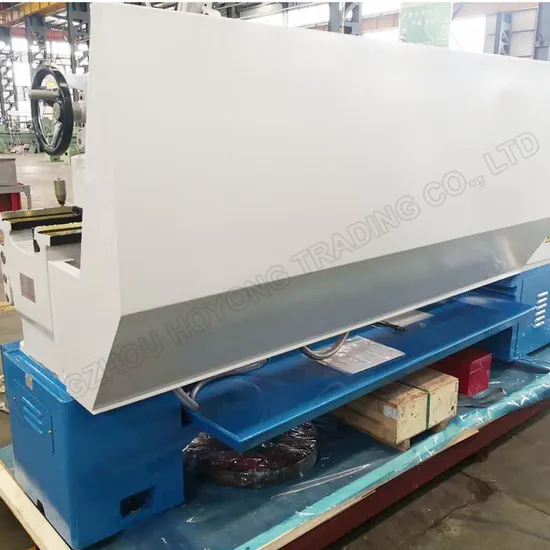

CE High Precision Engine Lathe Machine Ca6161 Ca6261 Ca6161b Ca6261b Ca6161c Ca6261c
| US$3,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
500mm
Swing Over Cross Slide
3000mm
Width of Bed
400mm
Spindle Bore
105mm
Motor Power
7.5kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
| MODEL SPECIFICATIONS | CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C | |
| Max .Swing over bed | 610mm | |
| Max .Swing over carriage | 370mm | |
| Max .Swing in gap | 830 | |
| Effective gap length | 210 | |
| Max .length of work piece | 750/1000/1500/2000/2200/3000 | |
| Width of bed | 400mm | |
| Section of turning tool | 25×25mm | |
| Spindle | Spindle speed | 10-1400rpm/16-1400rpm(24steps) |
| Hole through spindle | 52mm ,(80mm),[105mm] | |
| Spindle taper | (MT6)(Φ90 1:20)[Φ113:20] | |
| Feed | No. of feed | (64 kinds)(for each) |
| Range of metric threads | (1-192mm) (44 kinds) | |
| Range of inch threads | (1-24tpi) (21kinds) | |
| Range of module threads | 0.25-48 (module 39 kinds) | |
| Range of diametral pitc threads | 1-96DP (37 kinds) | |
| Tailstock | Max. tailstock spindle travel | 150mm |
| Tailstock spindle diameter | 75mm | |
| Taper of tailstock | (MT5) | |
| Main motor | 7.5KW(10HP) | |
| Packing | 750/1000/1500/2000 /2200/3000/4000 | 2440/2650/3150/3650/4030/4800/5680×1140×1750 |
| Weight(kg) | G.W. N.W. | |
| 750mm | 2300 2180 | |
| 1000mm | 2380 2250 | |
| 1500mm | 2577 2437 | |
| 2000mm | 2940 2787 | |
| 2200mm | 3120 2970 | |
| 3000mm | 3600 3450 | |
| 4000mm | 3950 3800 | |
